I have the following comments on 20/1022r3, whose resolutions are I

think on the agenda for motion today (the agenda has not been formally

announced as far as I can tell).

- CID 24565: I think "Ack-enabled" should be "ack-enabled"

- CID 24403:

a) A free-for-all harms QoS and should be recommended against.

b) There are various editorial issues too, mentioned in the comment and

addressed in 19/1667r1, which should be fixed even if the group decides

that QoS is not worth worrying about, e.g.:

1) The para

An HE STA that intends to send QoS Data frames from a single TID should select a TID from the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame. If the HE STA has no buffered MPDU for TIDs belonging to the same or higher priority AC indicated in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then the HE STA may include MPDUs for a TID belonging to any other AC in that A-MPDU carried in the HE TB PPDU.

is confusing, because the first sentence is just a "should" (which is

fine) but the second sentence implies with its "may" that you can only

include lower-priority ACs if there are no buffered higher-priority

ACs, which I think is not the intent.

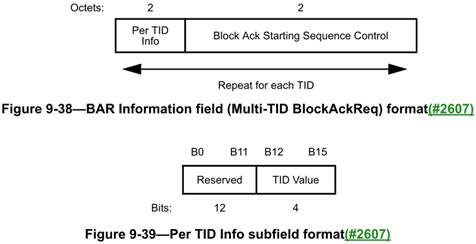

2) The Multi-TID BAR frame does not have "TID subfields in the AID TID Info fields in the Per TID Info subfields",

it has TID Value subfields in the Per TID Info subfields:

Here are the changes I propose (note it's all "should" so no-one is

going to jail):

In 26.6.3.1 change:

If the AP specifies a value defined in Table 9-154 (ACI-to-AC encoding)(#20006) in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then an HE STA that transmits a multi-TID A-MPDU to the AP should aggregate QoS Data frames from any one of the TIDs from the same AC or higher priority AC as indicated in the Preferred AC subfield of the Trigger Dependent User Info field that is addressed to the STA in the Trigger frame, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.

NOTE—While it is recommended that the STA transmit QoS Data from the AC that is same or higher than the preferred AC, the STA might still(#20227) to aggregate QoS Data from an AC that has lower priority than the preferred AC.

The STA may aggregate MPDUs from TIDs in other ACs within the remaining time to the HE TB PPDU duration value indicated in the UL Length subfield in the Common Info field of the received Trigger frame, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.

NOTE—If the AP indicates AC_BK in the Preferred AC subfield in the Trigger Dependent User Info field of a Basic Trigger frame, then an HE STA that transmits a multi-TID A-MPDU to the AP might aggregate MPDUs from any AC/TID or combination of TIDs, up to the limit indicated in the TID Aggregation Limit subfield in Trigger Dependent User Info field of the Trigger frame.

to:

An HE STA that transmits a multi-TID A-MPDU in an HE TB PPDU should aggregate MPDUs in the following order:

· first, any and all MPDUs that correspond to the Preferred AC subfield of the Trigger Dependent User Info field addressed to the STA in the Trigger frame

· then, any and all MPDUs that correspond to any AC that has a higher priority

· then, any MPDUs that correspond to any AC that has a lower priority

subject to:

· the limit indicated in the TID Aggregation Limit subfield in the Trigger Dependent User Info field addressed to the STA in the Trigger frame

· the duration indicated in the UL Length subfield in the Common Info field of the Trigger frame

NOTE—These rules permit a STA to not aggregate any MPDUs from the preferred AC or a higher priority AC.

In 26.4.1 change:

An HE STA that transmits a Multi-TID BlockAckReq frame in a PPDU that is not an HE TB PPDU shall set the TID subfields in the AID TID Info fields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the primary AC. An HE STA that transmits a Multi-TID BlockAckReq frame in an HE TB PPDU may set the TID subfields in the AID TID Info fields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to a TID that corresponds to any AC.

to:

An HE STA that transmits a Multi-TID BlockAckReq frame in a PPDU that is not an HE TB PPDU shall set the TID Value subfields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the primary AC. An HE STA that transmits a Multi-TID BlockAckReq frame in an HE TB PPDU should set the TID Value subfields in the Per TID Info subfields of the BAR Information field of the Multi-TID BlockAckReq frame to TIDs that correspond to ACs that have the same or higher priority as the preferred AC.

Thanks,

Mark

Mark RISON, Standards Architect, WLAN English/Esperanto/Français

Samsung Cambridge Solution Centre Tel: +44 1223 434600

Innovation Park, Cambridge CB4 0DS Fax: +44 1223 434601

ROYAUME UNI WWW: http://www.samsung.com/uk
