Hi Ross,
Thanks for pointing out, agree. The TBD subbullet can indeed be removed. The three old motions below can be amended later e.g.
802.11be reuses 802.11ax tone plan for 20/40
For 320 MHz and 160+160 MHz PPDU, 802.11be uses duplicated [Motion 33, [3] and [6]]
802.11be 240/160+80 MHz transmission consists of 3x80 MHz segments [Motion 35, [3] and [6]]
The 802.11be 320/160+160 MHz non-OFDMA tone plan uses duplicated tone plan of NOTE – Puncturing design TBD. [Motion 34, [3] and [6]]
Thanks, Ron
From: Yujian (Ross Yu) [mailto:ross.yujian@xxxxxxxxxx]
Hi all,
If SP#42 passed, some existing motions related with tone plan need to be changed accordingly. For example:
802.11be reuses 802.11ax tone plan for 20/40/80/160/80+80 MHz PPDU. For 320 MHz and 160+160 MHz PPDU, 802.11be uses duplicated HE160 for OFDMA tone plan. [Motion 33, [3] and [6]]
802.11be 240/160+80 MHz transmission consists of 3x80 MHz segments while the tone plan of each 80 MHz segment is the same as HE80 in 802.11ax. [Motion 35, [3] and [6]]
The 802.11be 320/160+160 MHz non-OFDMA tone plan uses duplicated tone plan of HE160. NOTE – Puncturing design TBD. [Motion 34, [3] and [6]]

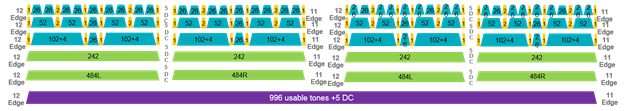

Straw poll #42 802.11be supports the following toneplan for 11be 80 MHz OFDMA. · 80 MHz OFDMA = 40 MHz DUP, Table 27-8 in 11ax D6 right/left shifted by 256 tones. · Note o The 80MHz OFDMA design applies to any RU<996 for all modes of transmission, SU, DL MU, TB PPDU, with and without puncturing o Non-OFDMA full BW 80MHz segment uses 996RU design o Any punctured 80MHz segment uses the OFDMA tone plan o For each 80MHz segment in 160MHz, 240MHz or 320MHz: if it is punctured or used for OFDMA the 80MHz OFDMA tone plan is used, if it’s used for non-OFDMA and non-punctured the 996RU tone plan is used [#SP42] [20/0666r2 (80MHz OFDMA Tone Plan, Ron Porat, Broadcom), SP#1, Y/N/A: 44/1/5]
Also, some TBD will be no longer TBD: A 160 MHz tone plan is duplicated for the non-OFDMA tone plan of 320/160+160 MHz PPDU. · The 160 MHz tone plan is TBD. [Motion 18, [3] and [7]]
regards 于健 Ross Yu Huawei Technologies
发件人: Alfred Asterjadhi [mailto:asterjadhi@xxxxxxxxx]
Hello all,
This is a gentle reminder that the deadline regarding this item is June 10th 2020 @10:00am ET.
Best Regards,
Alfred
On Mon, Jun 8, 2020 at 4:50 PM Alfred Asterjadhi <asterjadhi@xxxxxxxxx> wrote:
