Hi Lei,
Thank you for the prompt review and fixing the typo!
It’s a good question on whether to require the PS160 subfield set to 1 when decoding the 320 MHz RU. It looks better to keep the current PDT text (i.e., require PS160=1) from the following 3 aspects and please let me know if you have additional
concerns/suggestions:

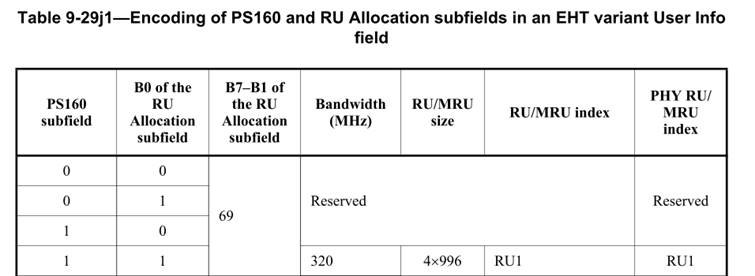

- The existing EHT RU table in D1.0 (snapshot below) requires the PS160 subfield set to 1 when decoding the 320 MHz RU, so the current PDT is more aligned with D1.0.
- The current PDT avoids multiple ways of indicating the 320 MHz RU, which simplifies and avoids ambiguity in transmitter/receiver design.
- By requiring the PS160 subfield set to 1, the 2nd row in the existing EHT RU table below can be saved as a reserved combination for future use as in D1.0.
Thanks,
Yanjun
From: HUANG LEI <000013c45bbec18b-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Tuesday, June 22, 2021 5:34 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] [PDT] On MU-RTS
CAUTION: This email
originated from outside of the organization.
Hi Yanjun,
Thanks. Attached please find some additional comments.
Best regards,
Lei
From: Yanjun Sun <yanjuns@xxxxxxxxxxxxxxxx>
Sent: Wednesday, June 23, 2021 6:52 AM
To: HUANG LEI <huang.lei1@xxxxxxxx>;
STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: RE: [PDT] On MU-RTS
Hi Lei and all,
Thank you for the constructive inputs and I’ve adopted most of them.
All the changes are tagged with “R1” in the attached based on Lei’s suggestions and offline inputs: added description on the PS160 subfield; added text to disallow MU-RTS in an EHT MU PPDU; revised text and illustration.
Please let me know if you have any additional comments/suggestions. I’m going to upload this as r1 if no further input is received by tomorrow’s meeting.
Thanks,
Yanjun
From: HUANG LEI <huang.lei1@xxxxxxxx>
Sent: Monday, June 21, 2021 9:20 PM
To: Yanjun Sun <yanjuns@xxxxxxxxxxxxxxxx>;
STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: RE: [PDT] On MU-RTS
CAUTION: This email
originated from outside of the organization.
Hi Yanjun,
Thank you for preparing this PDT. Attached please find my comments.
Best regards,
Lei
From: Yanjun Sun <yanjuns@xxxxxxxxxxxxxxxx>
Sent: Tuesday, June 22, 2021 9:57 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] [PDT] On MU-RTS
Hi folks,
I’ve uploaded the document at
https://mentor.ieee.org/802.11/dcn/21/11-21-0991-00-00be-pdt-on-mu-rts.docx
Please let me know if you have any comments/suggestions.
Thanks,
Yanjun
From: Yanjun Sun <yanjuns@xxxxxxxxxxxxxxxx>
Sent: Thursday, June 17, 2021 3:34 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] [PDT] On MU-RTS
CAUTION: This email originated from outside of
the organization.
Hi Alfred,
Could you help add the document 21/0991r0 on MU-RTS to the queue for joint calls?
I’ll upload the document once it’s ready.
Thanks,
Yanjun
