Re: [STDS-802-11-TGBE] 0545r1



Hi Yanjun,



Thanks for your prompt response.



How about dynamic puncturing? Is it allowed in all bands, e.g., 2.4GHz, 5GHz and 6GHz?


Thanks,
Zinan



From: Yanjun Sun <yanjuns@xxxxxxxxxxxxxxxx>
Sent: Thursday, April 14, 2022 2:03 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] 0545r1



Hi Zinan,



FYI, the related topic has been discussed before as below and the resolution is aligned with your thinking that static puncturing is not limited to 6GHz (e.g., to enable a BSS to use a wider bandwidth even with radar around in 5GHz).



I saw that Guogang allowed static puncturing in 5GHz in 0545r0 initially. It looks that if we fix the missing details for 5GHz operation pointed out by Po-kai, static puncturing should work for 5GHz as well.



4167

35.10.1

304.37

What about in the other bands? A 6G AP only operates in the 6G band so this is a bit confusing as it implies that in other bands the 6G AP may do something else which is not true. And on a side note, in other bands (e.g., 5G) can another AP of an AP MLD announce these widths that are different from the other widths (for the 6 GHz AP affiliated to the same AP MLD? I would think so. Perhaps good to clarify (here or in the AP MLD behaviuor related subclauses.

REVISED
Agree with the commenter in principle. Generalized the text so that the rules are applicable to other bands as well.
Tgbe editor please implement changes as shown in doc 11-21/1700r1 (https://mentor.ieee.org/802.11/dcn/21/11-21-1700-01-00be-cr-puncturing.docx) tagged as #4167







Thanks

Yanjun



From: Zinan Lin <000019c80da359b9-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Thursday, April 14, 2022 9:31 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] 0545r1



Hi Guogang,



Thanks for presenting 0545r1 in the joint meeting!

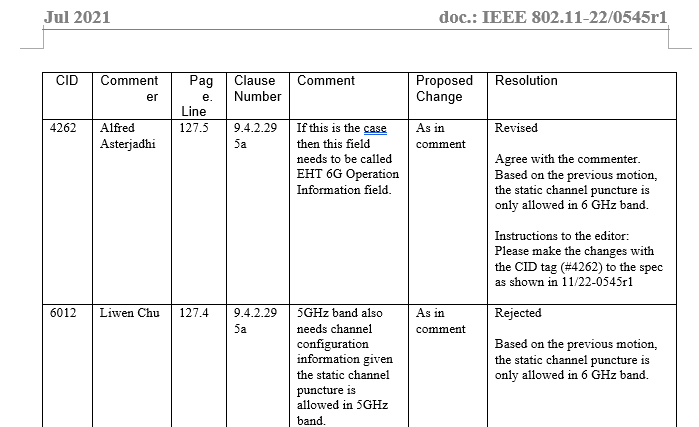

It is shown in 11-22/0545r1 that the static channel puncture is only allowed 6GHz. I have the two questions related to this:



  1. What is the reference to show the static channel puncture is only allowed in 6GHz?
  2. If the static channel puncturing is only allowed in 6GHz, how about the dynamic puncturing? Is it allowed in 6GHz only or other operating band, e.g., 2.4GHz, 5GHz and 6 GHz.



Thanks,

Zinan
