Jason and Alfred,
Thanks for presenting and commenting the CR document 1173. I have two comments based on the discussion today.
Alfred had a good point that EHT MU PPDU includes STA ID field and thus a STA should follow HE MU PPDU rule to perform intra -PPDU power save mechanism when it receives an
EHT MU PPDU. EHT sounding NDP PPDU is considered as a special case of EHT MU PPDU, however it does not have STA ID subfield in its EHT SIG field. I checked 11ax, and it seems sounding NDP PPDU was not mentioned in 26.14.1 (Intra-PPDU power save for non-AP
HE STAs). I don’t think a intra BSS STA needs to perform intra PPDU power save when it receives an EHT sounding NDP PPDU. I suggest making this explicit in 11be. For example, we could say
— The conditions that apply to an HE MU PPDU, HE SU PPDU, or HE ER SU PPDU (#13042) shall also apply to an EHT MU PPDU
that is not a EHT sounding NDP PPDU, …

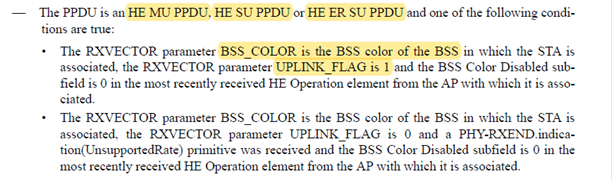

Base on description in 26.14.1 in 11ax, a non-AP STA may enter to the doze state if it receives an intra-BSS UL PPDU. In this case, the non-AP STA needs to check BSS_COLOR
and UPLINK_FLAG (this is a rule under HE SU PPDU category. For EHT case, we should also allow the non-AP STA entering the doze state by checking { BSS_COLOR, UPLINK_FLAG} or { BSS_COLOR, STA_ID} when it receives a EHT MU PPDU. So I think Jason’s original version
should be fine
Best regards,
Hanqing
From: Guoyuchen (Jason Yuchen Guo) <000018696e95f088-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Tuesday, July 12, 2022 7:22 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] TGbe July Hybrid: Updated agenda posted
|
Hi Alfred Could you please add the following contributions into the agenda? Thank you. 11-22-1059-00-00be-LB266-CR-for-10.8 (MAC)11-22-1073-00-00be-LB266-CR-for-35.13-Intra-PPDU-Power-Save
(MAC) Regards,Jason Yuchen Guo 发件人: Alfred Asterjadhi [mailto:asterjadhi@xxxxxxxxx]发送时间:
20 |
|
|
Hi Alfred
Could you please add the following contributions into the agenda? Thank you.
11-22-1059-00-00be-LB266-CR-for-10.8 (MAC)
11-22-1073-00-00be-LB266-CR-for-35.13-Intra-PPDU-Power-Save (MAC)
Regards,
Jason Yuchen Guo
发件人:
Alfred Asterjadhi [mailto:asterjadhi@xxxxxxxxx]
发送时间: 2022年7月11日 1:05
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: [STDS-802-11-TGBE] TGbe July Hybrid: Updated agenda posted
Hello all,
I uploaded a revised version of the agenda for this week:
11-22/862r1
I included all DCNs for which i have received requests (or found a DCN in mentor) in the submissions list and populated the agendas for Monday AM1 and PM1 with submissions that have been posted.
Please let me know when additional submissions are posted so that i can add to the agendas.
Let me know if you have any questions.
Regards,
Alfred
--
Alfred Asterjadhi, PhD
IEEE802.11 TGbe Chair,
Qualcomm Technologies Inc.
Cell #: +1 858 263 9445
Office #: +1 858 658 5302
