Hi Jason,

Thanks for your responses and the simulation results. I have the following comments:

What is the MCS/NSS used for the links?
Is the traffic CBR with every packet arriving separately or packets arriving in bursts. If the latter is true, what is the size of every traffic burst?
Related to your comment “Each mode has its pros and cons, e.g., the EMLSR mode works well for single radio non-AP MLD, and the ML SM PS mode only requires one RF chain to be active for most of the time, which is good for low power consumption”, there are proposals in EHT (1423) and even in UHR for that matter, to extend EMLSR like operation to multi-radio. I think it is effective both in terms of power saving as well as latency and should serve as the baseline for comparing the power saving of your proposed scheme. Have you simulated the power and latency performance of such a scheme where there would be listen operation only over 20MHz on both links and based on the reception of an initial control frame on any link, the entire link would get activated with its full bandwidth and NSS capabilities? Scheme 2 or independent access with full bandwidth listening all the time on all the links is obviously going to be power-expensive.
In your simulations, you have assumed only 1 AP MLD and 1 non-AP MLD and DL traffic. This means that there is only one contender in the network. So, obviously, there is 100% probability that the AP MLD will get access to the primary link within a few hundred microseconds. The latency results will be very different when there are multiple contenders in which case the AP MLD will be confined to contend only on the primary link to get access even if the other link is free. The loss of Multi-link diversity gain is not captured in these results.
Similar to latency performance, power performance is also expected to be completely different in the presence of other contenders. The AP MLD will burn significant power trying to contend only on one link while the other link might be available.
There would be cases when one link would be sufficient to drain all the traffic but the reception of a frame on the primary link would also cause the other link to become active. Your simulations start with a 500Mbps traffic load when the primary link is only 20MHz and so do not capture that. So in your simulations, the other 80MHz link is always required to transmit the traffic.
I did not understand the justification for scheme 3. Why should the other link be activated on the basis of a probability? It should be activated through an indication based on the availability of DL data in the AP’s buffer and not based on a random probability. In fact, given the parameters used in your simulations
The simulations also do not capture the difference that would arise based on 20MHz listen operation vs full bandwidth listen since the primary link is set to 20MHz.

In summary, I request you to study the power/latency performance of your proposed scheme as follows:

Wider link bandwidths, say 80MHz + 80MHz
In comparison with the following scheme

20MHz listen operation with a single SS on all links
Once an initial control frame is received on any one of the links, full bandwidth and SS reception on that link

In the presence of multiple other contenders in order to capture the impact of ML diversity.
For varying traffic rates from low to high (500Mbps is high given your bandwidth configuration)

Regards,

Sindhu

On Wed, Nov 2, 2022 at 9:49 AM Guoyuchen (Jason Yuchen Guo) <000018696e95f088-dmarc-request@xxxxxxxxxxxxxxxxx> wrote:

Hi Morteza,

Thanks for the questions, please see my response inline.

Best,

Jason

发件人: Morteza Mehrnoush [mailto:mmehrnoush@xxxxxxxx]
发送时间: 2022年11月2日 1:10
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx; Guoyuchen (Jason Yuchen Guo) <guoyuchen@xxxxxxxxxx>
主题: Re: Discussion for the contribution 11/22-1250r1 - ML SM PS mode

Hi Jason,

Thanks for sharing the simulation results. I have a few questions.

What is the traffic rate in UL/DL? How many traffic streams you have between the AP MLD and non-AP MLDs?

[Jason] We simulate DL only since this scheme is more for DL. The unit of the traffic rate is Mbps, sorry for missing that in the figure. We consider one traffic stream between the AP MLD and each non-AP MLD.

Based on the Active Time for Scheme 2, it looks like the traffic load (total traffic rate over total phy rate) is low to medium. Do you have any result when the traffic load is high?

[Jason] The figure illustrates the result for 1 AP MLD and 1 non-AP MLD, for more AP MLDs and non-AP MLDs, the results are similar regarding the relative relationship of the three schemes.

What is the definition of the transmission time in your simulation? How is it different than the MAC layer latency (which includes queueing, channel access, TX duration, etc)?

[Jason] transmission delay = t1-t0, where t0 is the time when the packet arrives in the queue, t1 is the time when the packet is successfully transmitted. It is the same as the MAC layer latency as you mentioned.

Thanks,

Morteza

From: Guoyuchen (Jason Yuchen Guo) <000018696e95f088-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Monday, October 31, 2022 9:26 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx <STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx>
Subject: [STDS-802-11-TGBE] Discussion for the contribution 11/22-1250r1 - ML SM PS mode

Dear TGbe members, I initiate this email thread to discuss the contribution 11/22-1250r1, which was presented in the MAC ad-hoc meeting this Monday. I received several sets of comments during the call, and I’d like to resolve the comments

ZjQcmQRYFpfptBannerStart

This Message Is From an External Sender

ZjQcmQRYFpfptBannerEnd

Dear TGbe members,

I initiate this email thread to discuss the contribution 11/22-1250r1, which was presented in the MAC ad-hoc meeting this Monday.

I received several sets of comments during the call, and I’d like to resolve the comments here.

<Comment 1> Please clarify the relationship between the ML SM PS mode and the link level dynamic SM PS mode.

<Comment 2> Please also clarify that the non-AP MLD can only use one mode at a time among the ML SM PS mode, the EMLSR mode and the EMLMR mode.

I added a new paragraph to the new revision 11/22-1250r2 as below:

A non-AP MLD shall not operate in the MLSM power save mode if any of its affiliated STA is operating in the static SM power save mode or the dynamic SM power save mode. A non-AP MLD shall not operate in the MLSM power save mode if it is operating in the EMLSR mode or the EMLMR mode.

<Comment 3> non-AP MLD can use other method to do the power save, e.g., cross-link power state indication

I did some system-level simulation to demonstrate the efficiency of the ML SM power save mode as illustrated below.

Simulation settings:

Traffic: DL ; AP MLD number: 1-2 ; non-AP MLD number: 1-4; Link number: 2 ; NSS per link: 1 ; Link 1 (primary) is 20MHz (assuming 2.4GHz band) ; Link 2 is 80MHz (assuming 5GHz band) ; Packet size: 1500 bytes

Simulation scheme 1 (ML AM PS mode):

Non-AP behavior: monitor on link 1 only. After receiving an initial frame (e.g., RTS), turn on link 2.

AP behavior: contend the channel on both link 1 and link 2, need to transmit an RTS on link 1 first, then transmit on link 2.

Simulation scheme 2 (independent access):

Assume two links are STR, each link can perform transmission independently.

Simulation scheme 3 (cross-link power state indication):

AP MLD only contends on link 1 and transmits to the non-AP MLD, the non-AP MLD will indicate to the AP MLD whether it turns on the other link (probability is p). In the figures below, the line marked as “COMP 1.0” corresponds to this scheme 3 with p=1.0, the line marked as “COMP 0.3” corresponds to this scheme 3, with p=0.3, and the line marked as “COMP 0.6” corresponds to this scheme 3, with p=0.6.

Simulation output:

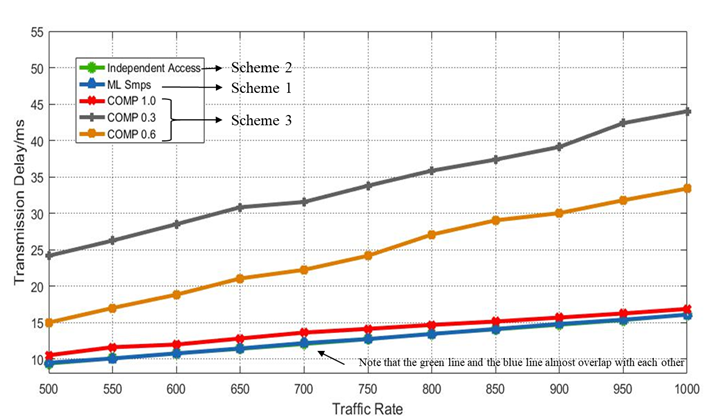

Metric 1: transmission delay

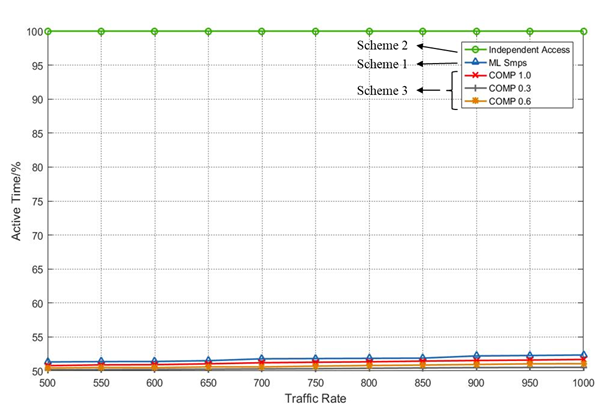

Metric 2: the amount of time that the radio is active (normalized to scheme 2. Note that in scheme 2, two links are always active.)

Analysis:

Scheme 2 (independent access) has the lowest transmission delay, but the power consumption is highest.

Scheme 3 (cross-link power state indication) consumes similar power as the ML SM PS mode, but the transmission delay is higher.

Scheme 1 (ML SM PS mode) balances the transmission delay and power consumption. It reduces the power consumption to a relatively low level, and does not increase the transmission delay.

<Comment 4> the scheme does not save power. Comparatively, other modes (e.g., EMLSR mode) saves power.

As shown in the simulation result above, this scheme really saves power. Moreover, it balances the power consumption with the transmission delay.

The ML SM PS mode does not prevent the non-AP MLD from using the other modes, the non-AP MLD can choose to use any of these modes for its own need.

Each mode has its pros and cons, e.g., the EMLSR mode works well for single radio non-AP MLD, and the ML SM PS mode only requires one RF chain to be active for most of the time, which is good for low power consumption.

Best,

Jason Yuchen Guo
