[STDS-802-11-TGBE] 答复: question on 11-22/1743

Hi Zinan,



Thanks for your question.



My understanding is that, because EMLMR Supported MCS And NSS Set subfield contains 1-3 MCS maps and each corresponds to one BW, a non-AP MLD can determine its capabilities on any EMLMR link or its “per-link spatial stream capabilities” by checking the MCS maps given the link’s BW.  That’s why I say the values in these MCS maps in the EMLMR Supported MCS And NSS Set subfield are for all links, but also provide “per-link capability”.



For 1), “such values” refer to the values in each MCS map in the EMLMR Supported MCS And NSS Set subfield. By saying “the sum”, I mean that since the non-AP MLD in EMLMR mode will do the link switch, the sum of each EMLMR link’s RX/TX NSS before the non-AP MLD enters the EMLMR mode (i.e., the non-AP MLD’s per link capability given in EHT-MCS maps) should be equal to or larger than each EMLMR link’s RX/TX NSS when the non-AP MLD is in EMLMR mode. And this is my answer to the commenter’s question. And I see your point here, I will modify the resolution as below:

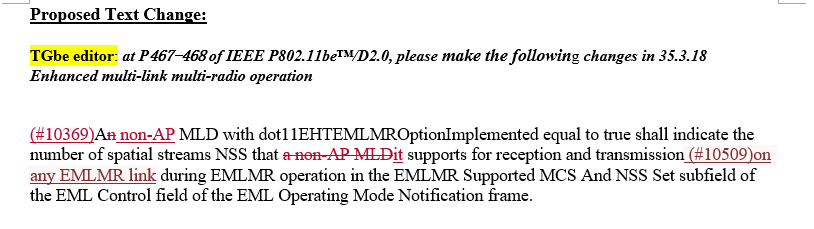

“Based on the current specification, it is clear that a non-AP MLD in EMLMR mode shall be able to support the TX/RX NSS up to the value indicated in the EMLMR Supported MCS And NSS Set subfield, meaning that such values are the max TX/RX NSS in EMLMR mode and should be smaller than or equal to the sum of each EMLMR link’s RX/TX NSS before the non-AP MLD enters the EMLMR mode (i.e., the non-AP MLD’s per link capability given in EHT-MCS maps).”



Hope this clarifies.



Thanks,

Yousi



发件人: Zinan Lin <Zinan.Lin@xxxxxxxxxxxxxxxx>
发送时间: 2022年12月2日 7:09
收件人: linyousi <linyousi@xxxxxxxxxx>; STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: question on 11-22/1743



Hi Yousi,



Thanks for presenting 11-22/1743r2. I have one question:

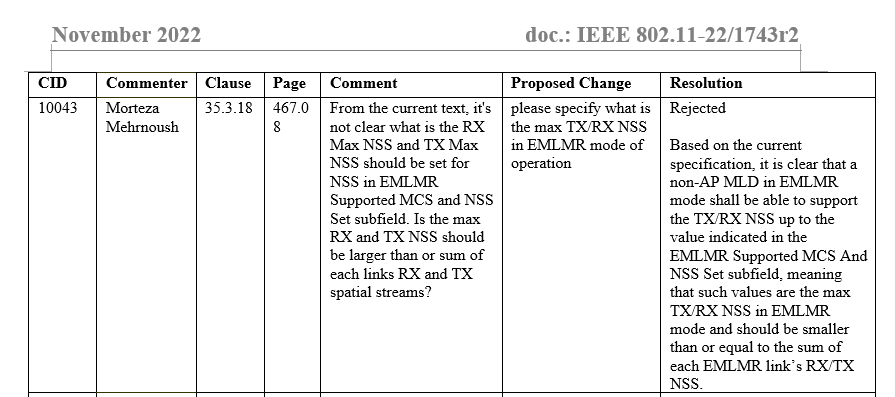

  1. The resolution of 10043 indicates that “such values are the max TX/RX Nss  in EMLMR mode and should be smaller than or equal to the sum of each EMLMR link’s RX/TX NSS”. What does “such values” refer to? Why it is “the sum”?



  1. The spec text you proposed for CID 10509 indicates the values in the EMLMR Supported MCS And NSS Set subfield are defined per Link (your contribution 11-22/1742r2 shows the similar concept).



It seems to me that 1) and 2) are not consistent. Could you please explain?



Thanks,

Zinan







From: linyousi <00001bcb1894c2a5-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Tuesday, November 29, 2022 2:28 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] 答复: [STDS-802-11-TGBE] Initial Revision of Agendas for Nov'22-Jan'23 Telcos Uploaded-CORRECTED LINK



Hi Alfred, Could you please add the following document to the MAC queue? 11-Nov-2022 ET202219650TGbeLB 266 Resolution for CID 11383Yousi Lin (Huawei)11-Nov-2022 22:23:33 ETDownload Thanks,Yousi 发件人:顾祥新 (Xiangxin Gu) [mailto:Xiangxin.Gu@xxxxxxxxxx]发送时间: 2022年11月29日 13:52收件人: STDS- ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌



Hi Alfred,



Could you please add the following document to the MAC queue?



11-Nov-2022 ET

2022

1965

0

TGbe

LB 266 Resolution for CID 11383

Yousi Lin (Huawei)

11-Nov-2022 22:23:33 ET

Download



Thanks,

Yousi



发件人: 顾祥新 (Xiangxin Gu) [mailto:Xiangxin.Gu@xxxxxxxxxx]
发送时间: 2022年11月29日 13:52
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] Initial Revision of Agendas for Nov'22-Jan'23 Telcos Uploaded-CORRECTED LINK



Hi Alfred,



Would you please add the document 22/1815(1 CID) to MAC queue?

Thanks!



BR,



Xiangxin Gu

Communication Standards Devision





From: Alfred Asterjadhi <asterjadhi@xxxxxxxxx>
Sent: Tuesday, November 29, 2022 5:17 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Initial Revision of Agendas for Nov'22-Jan'23 Telcos Uploaded-CORRECTED LINK



With Corrected Link:





Regards,



AA





On Mon, Nov 28, 2022 at 1:15 PM Alfred Asterjadhi <asterjadhi@xxxxxxxxx> wrote:

Hello all,



I uploaded the telco agendas for the Nov'22-Jan'23 time period.



Please take a look at the submissions list and let me know if any of the contributions are missing from the queues.



In addition please take a look at the contributions that are listed for the first and second MAC (this weeks) teleconferences, and let me know if there is a need for any updates.



Last but not least, please make sure that if you have a submission with a request for SP then that submission appears in the queue as pending SP. This way it does not end up in the quarantine queues/docs. Updated revision of docs containing CIDs in quarantine will be uploaded by end of this week.



Best Regards,


Alfred



--
