Re: [STDS-802-11-TGBF] question about Non-TB sensing



Hi Anirud,



The NDP frames are not necessarily always “dummy”. One straightforward example is that in scenarios where bidirectional sensing is used, both the I2R and R2I NDP will be used.



In scenarios where either DL or UL sensing is used, one of the NDP may not be actually used for taking sensing measurements, but they are helpful in other aspects. Please see DCN1433r2. We discussed this point extensively in 11bf calls and in the end the group decided to keep the flow unified for all scenarios.



Specifically, for unidirectional DL sensing scenarios, the R2I NDP is helpful in the following aspects:

  • It acts as an acknowledgement from the AP side to confirm the reception of the Sensing NDPA frame

and the I2R NDP.

  • It gives more time to the AP to process and transmit the sensing feedback for the I2R NDP measurement.
    • This will also be helpful for the delivery of the power control information for the R2I NDP.

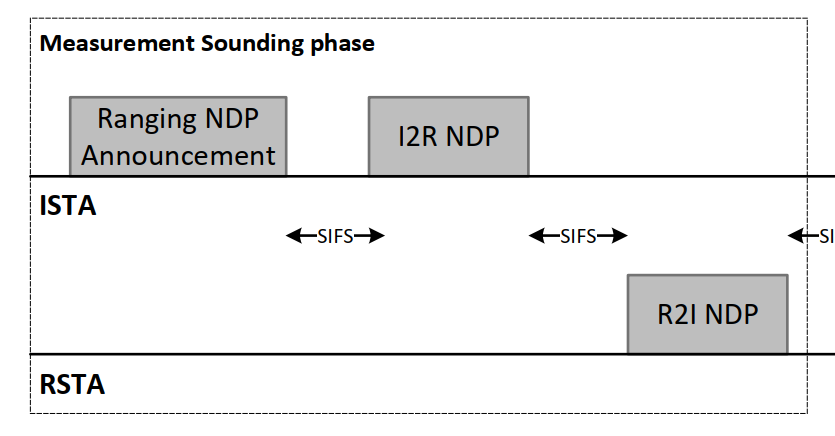

  • It helps to maintain a unified flow similar to the 11az Non-TB ranging flow that has already been implemented in many existing implementations .



For unidirectional UL sensing scenarios, the I2R NDP is helpful in the following aspects:

  • It avoids creating a new NDPA+NDP flow where the NDP is SIFS after and is from the recipient of the NDPA frame.
  • If we remove the I2R NDP, the AP may not be able to configure and transmit the R2I NDP in SIFS time.
    • Many AP implementations are not able to support transmitting NDP SIFS after receiving the NDPA.
  • It helps to maintain a unified flow similar to the 11az Non-TB ranging flow that has already been implemented in many existing implementations.



I hope the clarifications help.



Best,

Cheng

From: Sahoo, Anirudha (Fed) <00001823ca88828f-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Monday, March 21, 2022 6:39 AM
To: STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBF] question about Non-TB sensing



Thank you Cheng for the response. Precedence in 802.11az (which I am not familiar with) is definitely a factor. Those who are involved with 802.11az understand this much better than me. However, in addition to the points I raised earlier, there is also the complexity that some NDP frames are “dummy” in the sense that the STA/AP that receives it should ignore and not carry out CSI measurement. Maybe this (and other points I raised) are acceptable/better rather than changing the paradigm for TF-sounding.



thanks and regards



-Anirud



Anirudha (Anirud)  Sahoo (He/Him)

https://sites.google.com/view/a-sahoo

National Institute of Standards and Technology

Wireless Networks Division

Communications Technology Lab

100 Bureau Drive, Stop 6730

Gaithersburg, MD  20899

Ph: 301-975-4439



From: Chen, Cheng <cheng.chen@xxxxxxxxx>
Sent: Friday, March 18, 2022 5:47 PM
To: Sahoo, Anirudha (Fed) <anirudha.sahoo@xxxxxxxx>; STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx
Subject: RE: question about Non-TB sensing



Hi Anirud,



---So, the spec says this fact should be configured (or coded) in the NDPA frame. Is this easy to do? I am guessing that it would involve the MLME (at the AP) to extract/decode that information from the NDPA frame and then configure its PHY to send only one LTF symbol while transmitting R2I NDP. Similar problem when the non-AP STA is only sensing receiver.

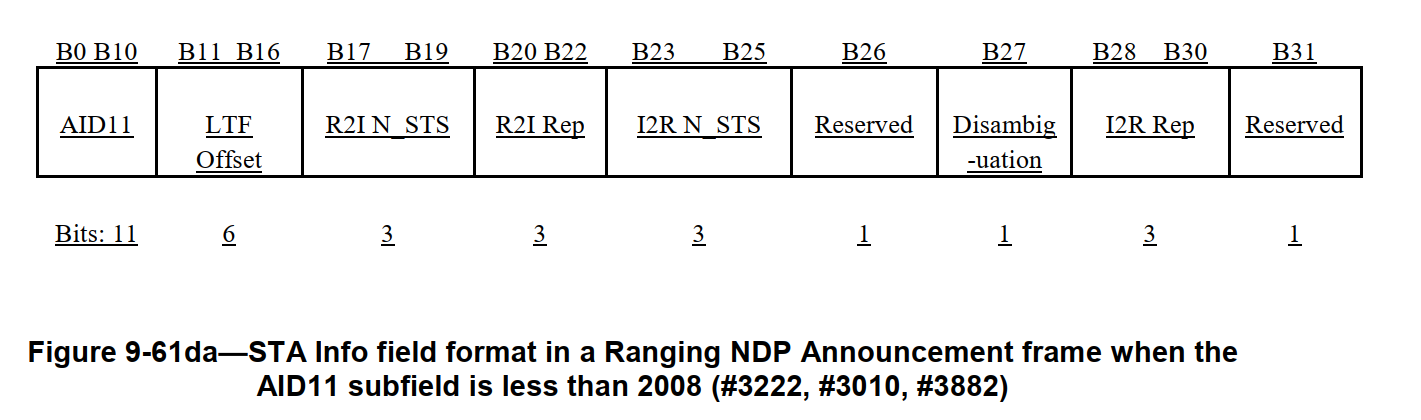

This is already possible and similar protocol is already defined in 11az spec. In 11az, the non-AP STA can send a Ranging NDPA and configure the parameters (NSTS, Number of LTF symbols etc.) for both the I2R NDP and R2I NDP.







Best,

Cheng





From: Sahoo, Anirudha (Fed) <00001823ca88828f-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Friday, March 18, 2022 2:40 PM
To: STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBF] question about Non-TB sensing



Hi all,

  In the D.01 PDT document, for Non-TB sensing measurement instance (Fig. 11.41f), If the non-AP STA initiator is only sensing transmitter, then R2I NDP is an overhead. Hence, the draft says the R2I NDP should be transmitted with minimum possible length with one LTF symbol. So, the spec says this fact should be configured (or coded) in the NDPA frame. Is this easy to do? I am guessing that it would involve the MLME (at the AP) to extract/decode that information from the NDPA frame and then configure its PHY to send only one LTF symbol while transmitting R2I NDP. Similar problem when the non-AP STA is only sensing receiver.

  Instead, can we use TF-sounding for this purpose? That is, if the non-AP STA is only transmitter, then it sends “regular” NDPA and then I2R NDP and the AP does not send R2I NDP. If the non-AP STA is only receiver, then it sends a TF-sounding trigger frame to the AP and then waits for the AP to send R2I NDP (no I2R NDP in this case). Of course, if the non-AP STA is both transmitter and receiver then it has to do both the sequences (this case has more overhead than the current protocol in D.01). So, in this solution there is no need for a “special” NDP (with one LTF symbol).

  Of course, the above proposed solution throws the concept of TB into a spin, i.e., currently TB is only used when AP is the sensing initiator. With the proposed solution, non-AP STA uses “part” of the TB sensing paradigm: only the TF-sounding concept.

  Would love to hear thoughts of other members. My apologies if this is too late to discuss.



thanks and regards



-Anirud



Anirudha (Anirud)  Sahoo (He/Him)

https://sites.google.com/view/a-sahoo

National Institute of Standards and Technology

Wireless Networks Division

Communications Technology Lab

100 Bureau Drive, Stop 6730

Gaithersburg, MD  20899

Ph: 301-975-4439
