Re: [STDS-802-11-TGBF] Discusssion for the Sensing Trigger frame

Hi Dongguk,



Additionally, I don’t quite understand why measurement setup ID and measurement instance ID are not included in the triggers, hope you can elaborate more about it, thanks!

IMHO, for TF Poll, TF Sounding, and NDPA, all these three frames shall carry MS ID and measurement instance ID, because a TB instance may contain only polling phase,  or only TF sounding phase, or only NDPA sounding phase.  The initiator and the responder shall make sure they’re using the same MS parameters and shall make sure they are synchronized to use the same instance ID to identify each measurement instance of the same MS.



BR,

Chaoming



发件人: 罗朝明(Chaoming Luo)
发送时间: 2022年9月7日 16:32
收件人: dongguk.lim@xxxxxxx; 'Ali Raissinia' <alirezar@xxxxxxxxxxxxxxxx>; osama.aboulmagd@xxxxxxxxxx; dibakar.das@xxxxxxxxx; Mahmoud.Kamel@xxxxxxxxxxxxxxxx; 'humengshi' <humengshi@xxxxxxxxxx>; rajat.pushkarna@xxxxxxxxxxxxxxxx; rojan.chitrakar@xxxxxxxxxxxxxxxx; dongxiandong@xxxxxxxxxx; 'Claudio da Silva' <claudiodasilva@xxxxxx>; tony.hanxiao@xxxxxxxxxx; narengerile@xxxxxxxxxx; STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx
抄送: hg.cho@xxxxxxx; js.choi@xxxxxxx; insun.jang@xxxxxxx; sanggook.kim@xxxxxxx
主题: Re: Discusssion for the Sensing Trigger frame



Hi Dongguk,



I tend to support Ali’s idea to use reserved values of  B0-B3 to indicate sensing trigger frames. And if we go this way, I don’t see any needs to additionally use the B4 to indicate sensing.



BR,

Chaoming







Hi Ali,



Thanks for your suggestion.



To avoid misunderstanding or remove the ambiguity according to a value of the Trigger Subtype field in the Trigger dependent common info subfield, I think that reserved values (i.e., it was not used in 11az) can be assigned to the variant of the sensing Trigger frame.

However, as you know we considered the reuse of the ranging Trigger frame format for the sensing trigger frame. since we inherit the ranging frame format for the sensing trigger frame format, by using the value of this subfield, STA can recognize the variant of the trigger frame which was already indicated by using the Trigger type field. Thus, I think that it needs the indication whether it is a ranging trigger or a sensing Trigger, and for that using B4 is a very simple and clear way without additional ambiguity.

So, even though we assign the reserved value which is not used in the ranging Trigger frame for the variant of sensing Trigger frame as suggested by Ali, I think that the use of B4 to indicate the type of Trigger frame is still useful and helpful for a clear distinction between two Trigger frame.



Best regards,

Dongguk.





Gents,



Does it make sense to change the table to indicate the subtypes for Poll, Sounding and Report as 8, 9, 10  and keep B4 as reserved in case we need it for something else?



The table would look like below. Of course we could still use B4 for sensing?



B0-B2

Ranging/Sensing

Trigger Subvariant

B3

Ranging/Sensing

0

Poll

0

Ranging

1

Sounding

2

Secure Sounding

3

Report

4

Passive Sounding

5-7

Reserved

8

Poll

1

Sensing

9

SR2I Sounding

10

Basic Report

11

SR2SR Sounding

12

Threshold Report

13-15

Reserved







WARNING: This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.



Dear All,



I hope you had a nice holiday.



I knew that some members would like to discuss this topic by scheduling additional meetings. However, since we have scheduled many CCs for the discussion of other topics this week, it is hard to schedule another CC for this discussion for the sensing Trigger frame. in addition, the 802.11 Interim sessions are scheduled for next week.

Thus, first of all, I would like to discuss the sensing Trigger topic by using the email discussion to gather opinions for other members.

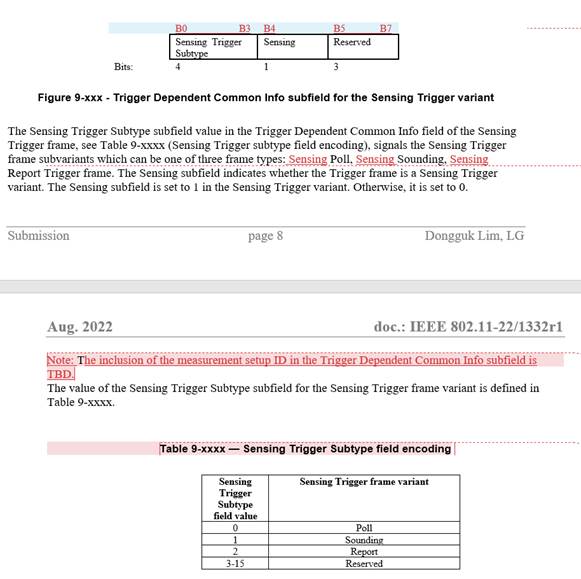

I revised the CR document for the sensing Trigger frame based on the Comments received during the last CC.

For the indication of this modification, I add the memo in the attached document and add also some discussion points using the memo.

Attached, Please take look at it. I look forward to the good comments from you.



Best regards,

Dongguk.







________________________________________________________________________________________

Dongguk Lim

Chief Technology Officer IoT Connectivity Standard Task/Professional

LG Electronics Inc

19, Yangjae-daero 11-gil, Seocho-gu, Seoul, Korea

M.82-10-8996-4690  E.dongguk.lim@xxxxxxx
