Hi All,
I hope you are being well.

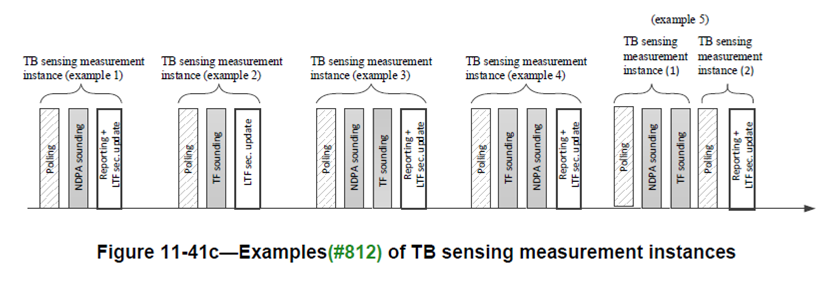

When I presented the DCN 22/1330r0 in the previous 11bf CC, we have a lot of discussion regarding the examples of TB sensing measurement instances described in figure 11-41c.
To illustrate the various examples for the TB sensing measurement instance, we considered showing some considered examples of the TB sensing measurement instance.
However, as you felt in during the previous CC, due to various examples described in figure 11-41c, it occurred a misunderstanding and ambiguity in the configuration of the TB sensing measurement instance.

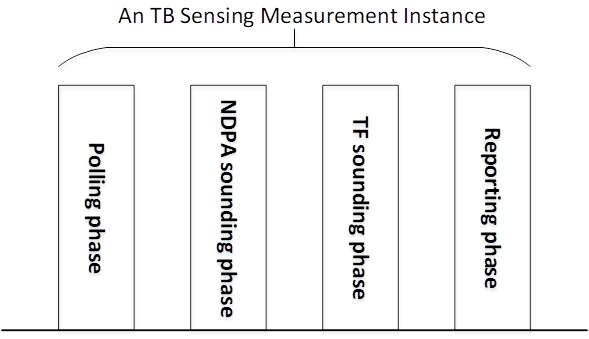

Since it is just an example to explain the TB sensing measurement, I think that we can simply the figure 11-41c with a figure which includes only one example as below to avoid misunderstanding and ambiguities.
Figure 11-41c Example of a TB sensing measruement instance
Also, regarding this figure, we can consider the modification of figure 11-41d, for the explanation of the operation for the STAs participating in this TB sensing measurement instance.
After the discussion for the change, if we determine to change figure 11-41 with the suggested one, I will also provide the modification of figure 11-41d regarding the description together.
In addition, even though the figure(11-41c) is modified as including only one example, we can have more time to discuss the issues related to the TB sensing measurement instance, for example, the order of each phase, configuration, etc.
I would like to hear your opinions on the suggested change regarding figures 11-41.
Please feel free to give your opinions..
Best regards,
Dongguk.
