[STDS-802-11-TGBF] 答复: [STDS-802-11-TGBF] Motion request



Hi Julia,

         Added.

         But since your requested Motion text (first sentence) is not correct. I revised it as below, please help to double checkJ







Best Regards : )

Tony Xiao Han



发件人: Julia Feng [mailto:feng.julia.shuling@xxxxxxxxx]
发送时间: 20221116 6:28
收件人: STDS-802-11-TGBF@xxxxxxxxxxxxxxxxx; Hanxiao (Tony, WT Lab) <tony.hanxiao@xxxxxxxxxx>
主题: [STDS-802-11-TGBF] Motion request



Hi, Tony,



Could you please add the following to the motion list?

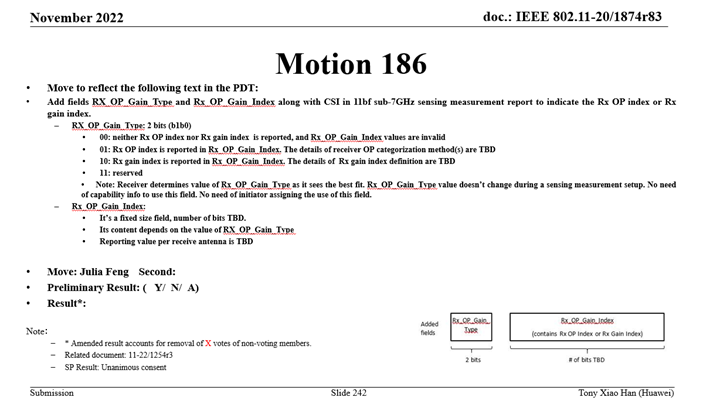

Do you agree to add fields RX_OP_Gain_Type and Rx_OP_Gain_Index along with CSI in 11bf sub-7GHz sensing measurement report to indicate the Rx OP index or Rx gain index?

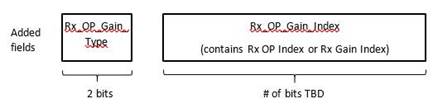

       RX_OP_Gain_Type: 2 bits (b1b0)

·       00: neither Rx OP index nor Rx gain index  is reported, and Rx_OP_Gain_Index values are invalid

·       01: Rx OP index is reported in Rx_OP_Gain_IndexThe details of receiver OP categorization method(s) are TBD

·       10: Rx gain index is reported in Rx_OP_Gain_IndexThe details of  Rx gain index definition are TBD

·       11: reserved

·       Note: Receiver determines value of Rx_OP_Gain_Type as it sees the best fit. Rx_OP_Gain_Type value doesn’t change during a sensing measurement setup. No need of capability info to use this field. No need of initiator assigning the use of this field.

       Rx_OP_Gain_Index:

·       It’s a fixed size field, number of bits TBD.

·       Its content depends on the value of RX_OP_Gain_Type

·       Reporting value per receive antenna is TBD








SP results: unanimously supported

Related document: 11-22/1254r3



Best Regards,

Shuling (Julia) Feng
