Hi Alfred,
On behalf of my colleague You-Wei Chen, could you please add the followings to PHY SP queue?
SP#1 (DCN#24/1695r1):
- Do you support the following signaling design for MU MIMO user info field?
- When Coding field indicates LDPC, then 2XLDPC indication:
- Bit22 set to 1: TX encode LDPC using code size as 2x1944
- Bit22 set to 0: TX encode LDPC using code size of 648, 1296, or 1944.
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
|
STA-ID |
MCS |
Spatial Configuration |
Res |
Coding |
2XLDPC |
|||||||||||||||||
SP#2 (DCN#24/1695r1):
- Do you support the following signaling design for non-MU MIMO user info field?
- UEQM indication
- Bit19 set to 1: UEQM is applied, B20-21 are redefined to indicate UEQM patterns.
- Bit19 set to 0: EQM is applied. (B20 and B21 are Bfed and Coding bits)
- When Coding field indicates LDPC, then 2XLDPC indication:
- Bit22 set to 1: TX encode LDPC using code size as 2x1944
- Bit22 set to 0: TX encode LDPC using code size of 648, 1296, or 1944.
Thanks,
Shengquan
From: Shengquan Hu
Sent: Thursday, November 14, 2024 10:12 AM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGBN] TGbn PHY Motion Request
Hi Alfred,
On behave of my colleague You-Wei, please add the followings to the PHY Motion list (Mover: You-Wei Chen):
Motion 1: Move to include the following text to the 11bn SFD (DCN# 11-24/1582r2):
For the maximum number of spatial streams supported for reception of sounding NDP in UHR and the maximum total number of streams (across all users) supported for reception in UHR DL MU-MIMO and COBF PPDUs:
• 4 is mandatory except for Non-AP STA with 20 MHz-Only Limited Capabilities Support subfield equal to 1.
• 8 is optional for DL MU-MIMO and sounding NDP (Note: More than 4 is not allowed for COBF PPDUs)
Result: No objection
Motion 2: Move to include the following text to the 11bn SFD (DCN# 11-24/1582r2):
•The COBF sequential sounding support to be conditional mandatory if the device supports COBF
Result: No objection
Thanks,
Shengquan
From: Shengquan Hu
Sent: Thursday, November 14, 2024 8:18 AM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGBN] TGbn PHY Motion Request
Hi Alfred,
Could you please add the following to the TGbn PHY motion list?
Move to include the following text to the 11bn SFD:
(DCN# 11-24/1488r1)
Pilot values and mapping rules of ELR-SIG and Data symbols in ELR PPDU are the same as that of four RRU52 in DL OFDMA
Passed without any objection
Thanks,
Shengquan
From: Shengquan Hu
Sent: Tuesday, November 12, 2024 8:51 PM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGBN] TGbn PHY Motion Request
Hi Alfred,
Please also add the followings to the TGbn PHY motion list:
Motion-1: Move to include the following text to
the 11bn SFD: (DCN# 11-24/1488r0)
ELR PPDU only supports the following two modulation and coding schemes:
- BPSK with coding rate R=1/2
- QPSK with coding rate R=1/2
Y/N/A: 61/6/9
Motion-2: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1488r0)

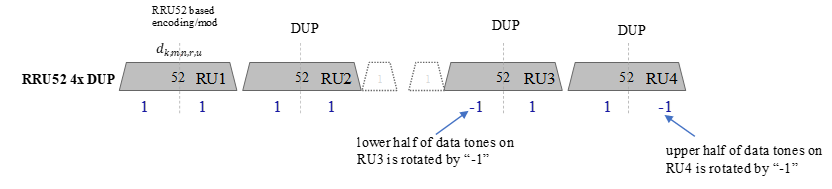

ELR transmission shall apply the phase rotations as below for both BPSK and QPSK modulations
- The rotation of -1 will be applied on data subcarriers of lower half of RU3 and upper half of RU4 for 52-tone regular RU (RRU52) on 20MHz
Passed without any objection
Thanks,
Shengquan
From: Shengquan Hu
Sent: Tuesday, November 12, 2024 4:30 PM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBN] TGbn PHY Motion Request
Hi Alfred,
Please add the followings to the TGbn PHY motion list:
Motion-1: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1828r1)

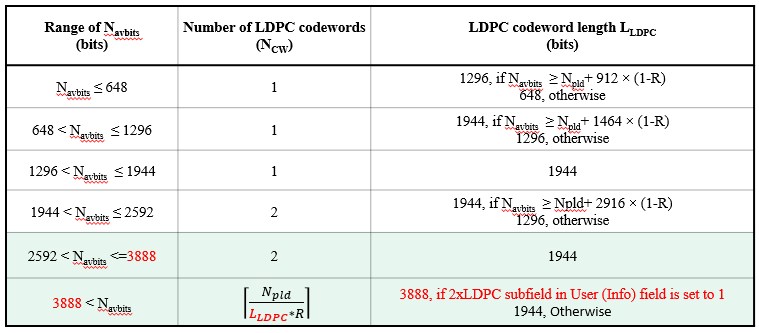

update the LDPC PPDU encoding parameter table for UHR as below:
-
If FEC coding scheme is LDPC and Navbits ≤ 3888, the 2xLDPC subfield shall be set to 0 and the LDPC codeword length selection shall follow the pre-UHR LDPC procedure, specifically using codeword lengths (648, 1296,
or 1944) bits based on the table below
Y/N/A: 80/9/27
Motion-2: Move to include the following text to the 11bn SFD:
(DCN# 11-24/0468r2)

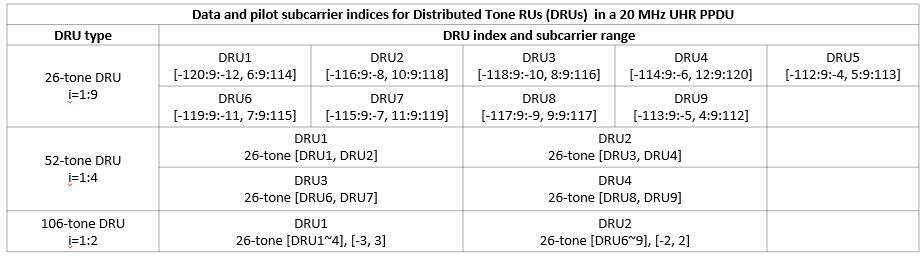

Data and pilot subcarrier indices for DRUs in a 20 MHz UHR PPDU are defined in following table:
Y/N/A: 51/11/23
Motion-3: Move to include the following text to the 11bn SFD:
(DCN# 11-24/0468r2)

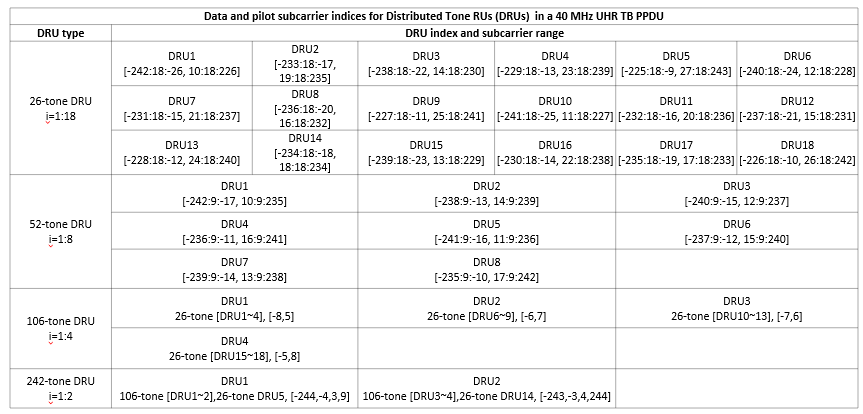

Data and pilot subcarrier indices for DRUs in a 40 MHz UHR PPDU are defined in following table:
Passed without any objection
Motion-4: Move to include the following text to the 11bn SFD:
(DCN# 11-24/0468r2)

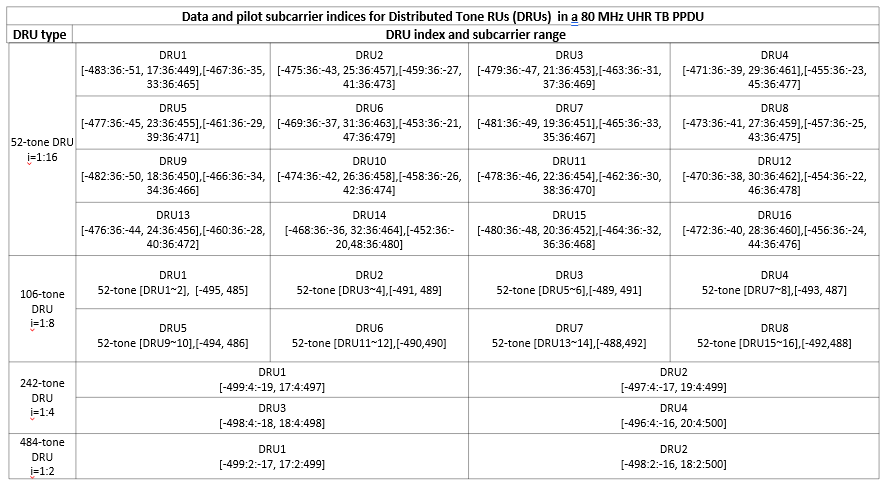

Data and pilot subcarrier indices for DRUs in an 80 MHz UHR PPDU are defined in following table:
Passed without any objection
Motion-5: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1188r2)
-
DRU index based global CSD start index assignment will be used for DRU UHR-STF transmission
-

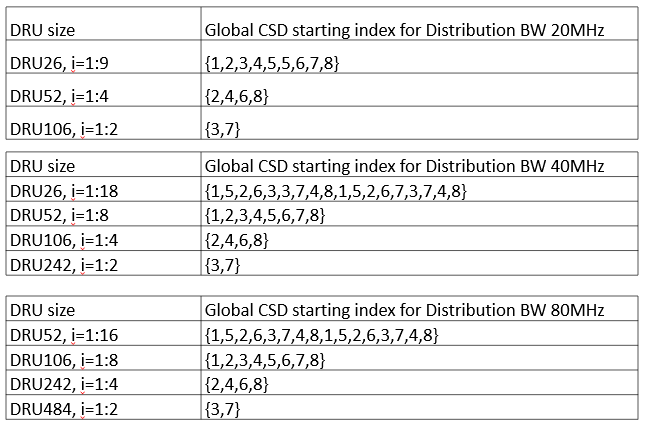

Global CSD start index assignment for DRU UHR-STF transmission will be based on the following table
Passed without any objection
Motion-6: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1189r1)

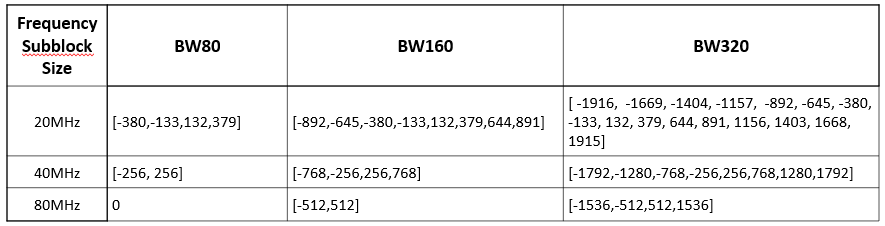

DRUs on frequency subblocks of wide bandwidth PPDU should be defined as DRUs on 20MHz, 40MHz and 80MHz PPDU with the following constant shifts?
Passed without any objection
Motion-7: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1489r1)
use 4-bit bitmap in Common Info field (B56-B59) for DRU indication?
-
1 bit/80MHz to indicate each 80MHz is used for DRU or RRU
Passed without any objection
Motion-8: Move to include the following text to the 11bn SFD:
(DCN# 11-24/1489r1)
Re-purpose 2 bits of SS Allocation subfield in User Info field for distribution bandwidth indication if DRU
Passed without any objection
Motion-9: Move to include the following text to the 11bn SFD:
(DCN# 11-23/2020r3)
Minimum size of RRU in hybrid mode in 160MHz and 320MHz is 242
Passed without any objection
