Hi Steve,
Thank you for your comments and feedback.
Let me try to address your concern regarding the usefulness of the WPT management link between the AP and AMP STA. I have had offline discussions separately with others in the group on this topic,
to highlight what kind of information can be carried in this WPT management link. This can be capability information, current energy status, etc. to allow the AP to be informed of the AMP STA’s current energy harvesting needs. This can influence the AP’s information
exchange with the energizer, for example if the energizer needs to transmit for a longer duration, higher power (if regulation allows it), higher duty cycle (energizer on-off period), etc. We will have a future contribution to shed more light and hopefully
more clarity on this topic.
Kind Regards
Ian
From: Steve Shellhammer <sshellha@xxxxxxxxxxxxxxxx>
Sent: Thursday, 18 July 2024 10:56 am
To: Ian Bajaj <ian.bajaj@xxxxxxxxxx>; STDS-802-11-TGBP@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGBP] SP for DCN 11-24/1208r0
Ian,
Since there will be no time to discuss the straw polls during PM1, I thought I would send out an email.
In SP3 I think the link between the AP and the Energizer would be helpful when the Energizer and the AP are separate devices. It would be useful for the AP to tell the Energizer
when to transmit energizer signal and possibly on which frequency and such (WPT management).
However, in SP2 and SP3 I do not currently see the usefulness of WPT management in the link between the AP and the AMP STA. Maybe after some more discussion we can clarify what
WPT management would be useful for that link.
Regards,
Steve
From: Ian Bajaj <0000340c29b22c99-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Thursday, July 18, 2024 5:41 AM
To: STDS-802-11-TGBP@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBP] SP for DCN 11-24/1208r0
WARNING:
This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.
Hi Bo,
Please add the following SPs to the agenda, which are updated based on feedback for DCN 11-24/1208r0:
SP1: Do you agree that 11bp shall support WPT Mode 0?
- Mode 0 - WPT Receiver acts as a passive energy harvester.
SP2:
Do you agree that 11bp shall support WPT Mode 1?

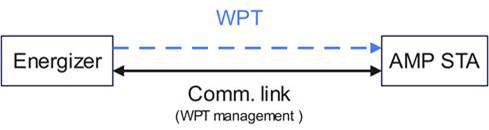

- Mode 1 - WPT management information exchange is directly performed between the Energizer and AMP STA to support WPT between the Energizer and AMP STA.
SP3:
Do you agree that 11bp shall support WPT Mode 2?

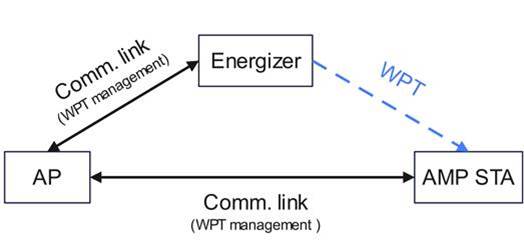

- Mode 2 - WPT management information exchange is coordinated through the AP for a non-integrated Energizer. The management information exchange is carried out between
the AP and Energizer, and between the AP and AMP STA, to support WPT between the Energizer and AMP STA.
Thanks
Ian Bajaj
