Re: [STDS-802-11] 11-22/0652

--- This message came from the IEEE 802.11 Working Group Reflector ---

Youhan,



Thanks for your suggestions. I have a few in line comments on your suggestions.



Best,

Zinan





From: Youhan Kim <youhank@xxxxxxxxxxxxxxxx>
Sent: Tuesday, May 3, 2022 1:49 AM
To: STDS-802-11@xxxxxxxxxxxxxxxxx; Zinan Lin <Zinan.Lin@xxxxxxxxxxxxxxxx>; ross.yujian@xxxxxxxxxx
Subject: RE: 11-22/0652





Hi, Zinan.



Thank you very much for the document.



  1. The definition of is updated as follows:



is the received signal power at the receive antenna connector in the nonpunctured 20 MHz subchannel in dBm. It can be the received signal power at the received antenna connector in at least one nonpunctured 20 MHz subchannel within the overlapping bandwidth of the PSRR PPDU and the PSRT PPDU, or the received signal power at the received antenna connector in the nonpunctured 20 MHz subchannels within the overlapping bandwidth of the PSRR PPDU and the PSRT PPDU normalized to a 20 MHz subchannel. The identification of the overlapping bandwidth is implementation dependent.



The most important thing is to be clear that the unit of RPL_{PSRR,20MHz} is dBm/20MHz.  How one computes it is implementation specific, except that I agree with you that 20 MHz subchannels which are used in both the PSRR and PSRT should be used.  Therefore, my suggestion is

is the received signal power at the receive antenna connector in the nonpunctured 20 MHz subchannel in dBm measured in dBm/20 MHz. It can be the received signal power at the received antenna connector in shall be measured in at least one nonpunctured 20 MHz subchannel within the overlapping bandwidth of in which the preamble of both the PSRR PPDU and the PSRT PPDU are present, or the received signal power at the received antenna connector in the nonpunctured 20 MHz subchannels within the overlapping bandwidth of the PSRR PPDU and the PSRT PPDU normalized to a 20 MHz subchannel. The identification of the overlapping bandwidth measurement method is implementation dependent.



[ZL]

  1. May I know if 802.11be or 802.11ax specs specifies “preamble of PSRR PPDU is present” is equivalent to the non-punctured subchannel(s) in PSRR PPDU?
  2. I am concerned about requiring the preamble presence in both PSRR PPDU and PSRT PPDU. Since the formula is used to set the upper bound of PSRT PPDU transmission power, how can the PSRT PPDU be present when the measurement is made prior to the first transmission?

Therefore, I would like to have the following update on the text:



RPL_(PSRR,20MHz ) in the unit of dBm/20 MHz is the normalized received signal power measured at the antenna connector in one or more 20 MHz subchannels. The measured 20 MHz subchannel(s) shall be the subchannel(s) on which the PSRT PPDU transmission intends to occupy and the preamble of the PSRR PPDU is present. The measurement method is implementation dependent.



























I still need more time to review your #2.



Regards,

Youhan



From: Zinan Lin <Zinan.Lin@xxxxxxxxxxxxxxxx>
Sent: Monday, May 2, 2022 11:09 AM
To: Youhan Kim <youhank@xxxxxxxxxxxxxxxx>; ross.yujian@xxxxxxxxxx
Cc: STDS-802-11@xxxxxxxxxxxxxxxxx
Subject: FW: 11-22/0652



WARNING: This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.

Hi Youhan and Ross,

Per the requirement of REVme minutes (11-22/0679r0), I am resending the discussion email to the reflector.



Thanks,

Zinan



From: Zinan Lin
Sent: Friday, April 29, 2022 10:55 AM
To: youhank@xxxxxxxxxxxxxxxx; Yujian (Ross Yu) <ross.yujian@xxxxxxxxxx>
Cc: Rui Yang <Rui.Yang@xxxxxxxxxxxxxxxx>; M Montemurro <montemurro.michael@xxxxxxxxx>
Subject: 11-22/0652



Hi Youhan and Ross,



Thanks for your comments and discussions on 11-22/0652!



Attached please find the updated document. I summarize the resolutions for the comments you made:



  1. The definition of is updated as follows:



is the received signal power at the receive antenna connector in the nonpunctured 20 MHz subchannel in dBm. It can be the received signal power at the received antenna connector in at least one nonpunctured 20 MHz subchannel within the overlapping bandwidth of the PSRR PPDU and the PSRT PPDU, or the received signal power at the received antenna connector in the nonpunctured 20 MHz subchannels within the overlapping bandwidth of the PSRR PPDU and the PSRT PPDU normalized to a 20 MHz subchannel. The identification of the overlapping bandwidth is implementation dependent.

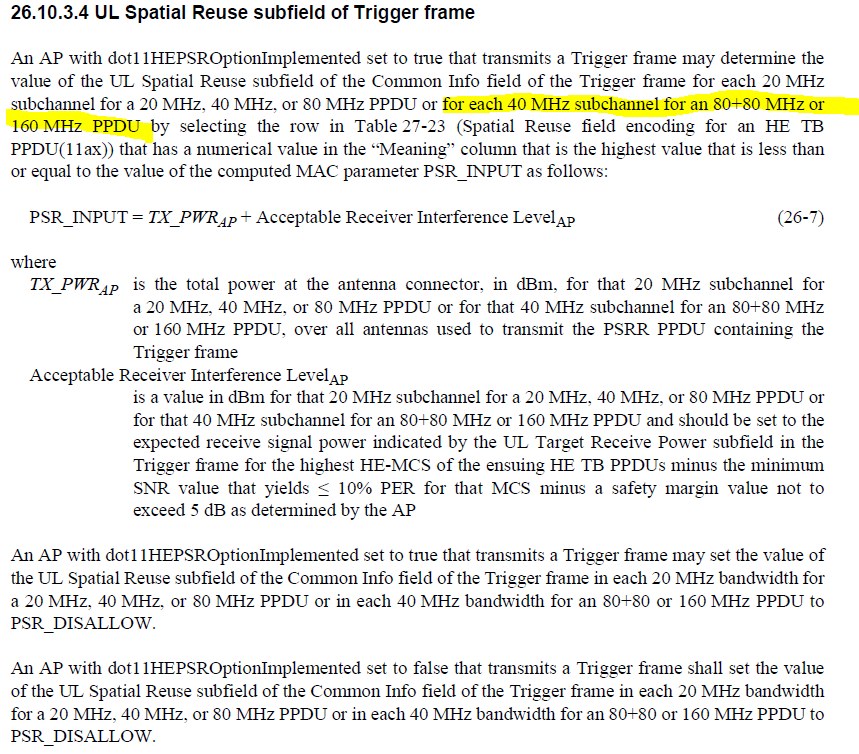

  1. As indicated in 26.10.3.4 (P4242L1, REVme D1.0), UL Spatial Reuse subfield of Trigger frame is defined for each 40 MHz  subchannel for an 80+80MHz or 160 MHz PPDU. The Spatial Reuse subfields of HE-SIG-A field of an HE TB PPDU should follow this definition, i.e.,  Spatial Reuse value is applied to 40MHz subband of the 160MHz band. Therefore, when the PSRR PPDU is 160MHz, to get PSR for 20 MHz subchannel, it needs to normalize the PSR value of the UL Spatial Reuse subfield in the Common Info field of the Trigger frame of the PSRR PPDU to 20 MHz subchannel. The NOTE in the 11-22/0652r3 explained this already.





Please let me know your comments.



Thanks,

Zinan
