Re: [STDS-802-11] AMP TIG Question



--- This message came from the IEEE 802.11 Working Group Reflector ---

Hi, Steve,

Thanks for your suggestions.

We will provide such kinds of information in next meeting and in the TR.



BR,

weijie



发件人: Steve Shellhammer <sshellha@xxxxxxxxxxxxxxxx>
发送时间: 2022818 0:39
收件人: 徐伟杰 <xuweijie@xxxxxxxx>; STDS-802-11@xxxxxxxxxxxxxxxxx
主题: RE: AMP TIG Question



Meijie,



                Thanks for the detailed reply.  I think it would be great if the AMP TIG report has this kind of information in it so we can use that information to give us an idea of what power is available for the wireless link.   I think it would be great if we had sections on the various energy harvesting techniques (e.g., heat transfer, solar (light), wireless, etc.).  Then we can use that information to set some requirements on the wireless power consumption, both average and peak.



                Also, as I mentioned on the call it would also be great to have some sections on energy storage technologies (e.g., supercapacitors and coin cell batteries) so we have any idea what storage options make sense for these IoT devices.



                The TIG phase is a good time to do all of this, since during the study group phase the focus is typically on the drafting of the PAR and the CSD.



Regards,

Steve



From: 伟杰 <xuweijie@xxxxxxxx>
Sent: Tuesday, August 16, 2022 7:07 PM
To: Steve Shellhammer <sshellha@xxxxxxxxxxxxxxxx>; STDS-802-11@xxxxxxxxxxxxxxxxx
Subject: Re: AMP TIG Question



WARNING: This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.

Hi, Steve,

You have mentioned an interesting application😊.

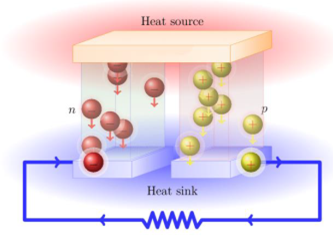

The heat energy harvester utilizes the seebeck effect (as shown in the following Figure)to convert heat to electric energy. The ouput power can range from 25~1000 uw per cm2. The condition where the energy harvester can work and generate power is that: there is temperature difference. That is to say, when there is temperature difference between the two ends of the energy harvester, energy can be generated and harvested.

For the data center application, as far as know, the indoor temperature will be kept almost constant (e.g., the fluctuation of the temperature is less than 1 centigrade ) using e.g., air conditioner in order to provide a good working condition for the servers. This appears to be one downside to use heat for energy harvesting. But on the other hand,  may be it is still possible by attaching the energy harvester near the thermovent of the server. Hence, on one side of the energy harvester the temperature is higher and on the other side facing the indoor environment, the temperature is lower.

If is possible, may be some filed test can be done to verify this😊



In addition, as far as I know, heat energy harvester can be used in many scenarios: wearables ( to use the temperature difference between the body and the environment ), pipe monitoring (to use the temperature difference between the pipe and the environment and also the change of the environment temperature ), power transformation equipment, etc.



BR,

weijie







发件人: Steve Shellhammer <sshellha@xxxxxxxxxxxxxxxx>
发送时间: 2022817 8:37
收件人: STDS-802-11@xxxxxxxxxxxxxxxxx
主题: [STDS-802-11] AMP TIG Question



--- This message came from the IEEE 802.11 Working Group Reflector ---

AMP TIG,



This morning on the AMP TIG call someone (I do not recall who) mentioned that heat transfer is a method of energy harvesting.



Also, Harry made a nice presentation on Data Centers.  And we know that in Data Centers there is typically lots of heat generated.



I wanted to know if someone knows whether it is possible to put a device somewhere on Servers in the Data Centers and can use the Heat for Energy Harvesting.



It would be interesting to hear if something like that is possible.



Regards,

Steve
