MIH commands for handover




Handover Using MIH Messages:

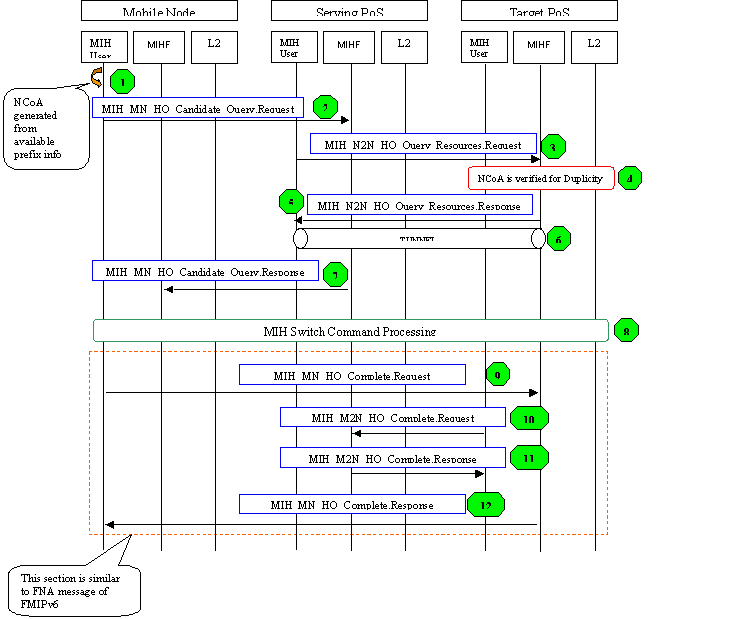

a) Predictive Mode:





Explanation of above depicted flow:


MN can generate the NCoA from the available prefix info (from IS Server).



1. For initiating the handover MN sends MIH_MN_HO_Candidate_Query.Request query to PAR. As per the draft (version 4) MN sends following information in this command.

MIH_MN_HO_Candidate_Query.request (
DestinationIdentifier,
CurrentLinkIdentifier,
CandidateLinkList,
QueryResourceList,
CandidatePoAList
)

But once the request query is received by PAR it needs to send the
MIH_N2N_HO_Query_Resources.Request to NAR. But in Candidate query the MN never sends NAR’s IP address. Now there are two ways to get the NAR’s IP address.
PAR can query the IS Server for NAR’s address using CandidatePoA address as the key. But this method can increase the latency. But this brings out a scenario where IS Handler in ACR/AR can exist.

MN should send the NAR’s address (as it can get it from IS Server) to PAR,
so that Resource Query can be send easily. In this approach, one more parameter should be added into the Candidate query request message.

2. Once the PAR gets MIH_N2N_HO_Query_Resources.Confirm , it needs to create the tunnel for sending all the packets to NAR (until the handover is over). But for creating the tunnel, PAR should have the NCoA of MN & PAR in turn should send the NCoA to NAR for duplicity checking. This is analogous to FBU & FBack mechanism of FMIPv6.

3. As per the above discussed point, the candidate Query should contain two more parameters.

MIH_MN_HO_Candidate_Query.request (
DestinationIdentifier,
CurrentLinkIdentifier,
CandidateLinkList,
QueryResourceList,
CandidatePoAList,
CandidateNwAddrList,        /*Access router’s addresses*/
MN_NCoAList,                    /*List of NCoA as per Target n/w prefix*/
)
MN_NCoA should be there in both MIH_N2N_HO_Query_Resources.Request  & MIH_N2N_HO_Query_Resources.Response  messages also.


NAR should verify the New CoA for duplicity.
If the NAR is an ACR, then it can check the New Address against its list of MN’s addresses (This list is maintained by the ACR).
In case of AR also the same method can be adopted.



MIH_N2N_HO_Query_Resources.Response should contain MN’s confirmed NCoA along with requested resource list. Once the Response message is received, PAR should create the tunnel now.



MIH_MN_HO_Candidate_Query.Response should contain MN’s confirmed NCoA &  the requested resource list.



L2 connection is established with target link.



1. This is analogous to FMIPv6 FNA message. This should initiate sending all buffered packets in NAR (which it received over tunnel from PAR) to MN. As per the definition in draft, MN sends following parameters in request message.

MIH_MN_HO_Complete.request (
                DestinationIdentifier,
LinkIdentifier,
HandoverStatus
)

Once this is received by NAR, it should inform PAR for closing the tunnel & flushing all the information for that MN. This can be done using the message MIH_N2N_HO_Complete (Network<->Network).

MIH_N2N_HO_Complete.request (
DestinationIdentifier,
MNIdentifier,
CurrentLinkIdentifier,
HandoverStatus
)

But this message does not include the PAR’s IP address. So it is MN’s job to send the PAR’s address in MIH_MN_HO_Complete.request message, which in turn can be used by NAR for sending MIH_N2N_HO_Complete request to PAR.

There can be one more parameter in MIH_N2N_HO_Complete request message.

MIH_MN_HO_Complete.request (
                DestinationIdentifier,
LinkIdentifier,
HandoverStatus,
PreviousARAddress        /*PAR’s IP Address*/
)




Please Comment

thanks & regards
Sanjib
