Re: [802.21] MIH commands for handover




Hello Jing

I agree with u...but the flow which I sent in my last mail was, considering that
the target N/W has been selected by the MN. so whenever the candidate
query is sent by MN, it already has decided the target n/w. this is just a initial level
of thought which I tried to share with you all....who got good knowledge on it...

But this thought process wont work good if the MN got more than 2 L2 interface, then
it needs to send the list of target networks in the candidate query & once it receives
the response, it has to commit to one of them using candidate commit request, & that
time the PAR can initiate the tunneling mechanism.
In this scenario, we may need to change the commit request parameters...

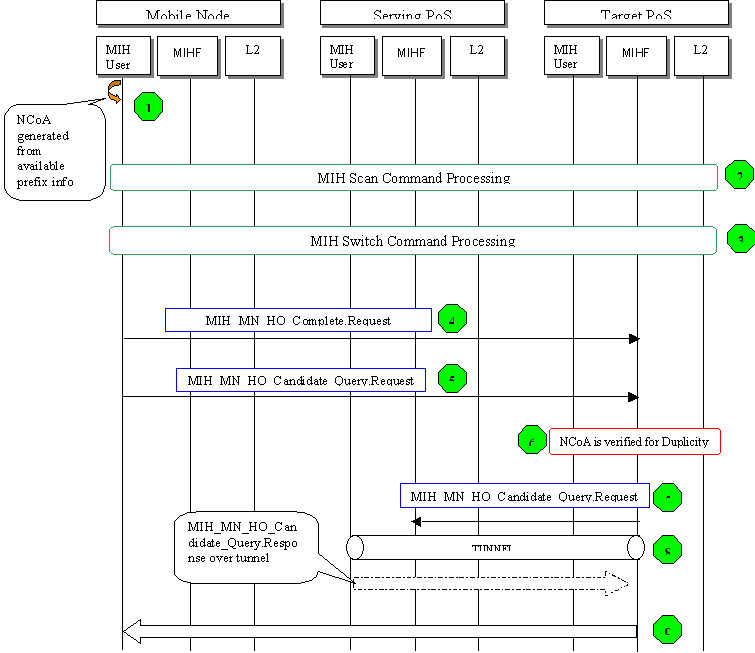

well I got a flow for reactive mode as well...please comment on this




Explanation of above depicted flow:



As explained in Predictive mode.



MIH_MN_HO_Candidate_Query.Request should be sent to NAR with New CoA & source address same as NCoA & Candidate Network Address as NAR’s IP address. This will indicate the NAR about Reactive Mode handover.
Once the NAR receives this request message it should verify the NCoA for duplicity. If the address is found duplicate, NAR should find out a new address & update it in received MIH_MN_HO_Candidate_Query.Request .
After address verification, the same request packet should be sent to PAR. PAR’s address would be received from MIH_MN_HO_Complete.Request.


When PAR receives MIH_MN_HO_Candidate_Query.Request, it must check the CandidateNwAddr with SourceIP of the received packet. This tells the handover is Reactive.
PAR should initiate tunnel creation (end points PAR to MN) using MN’s confirmed NCoA.
PAR should send the MIH_MN_HO_Candidate_Query.Response to NAR over tunnel. This response will carry the confirmed NCoA of MN.



NAR starts sending packets to MN. Once MN gets the MIH_MN_HO_Candidate_Query.Response message, it will get the confirmed NCoA.


thanks & regards
Sanjib
