[802.3_4PPOE] Adding to the annex drawings that shows the differences between parallel detection and staggered detection

[Yair Darshan <YDarshan@xxxxxxxxxxxxx>]

Hi all,

Please review. I propose to add the following for clarity.

---------------

Comment (Annex 145B.1, page 281, line 21)

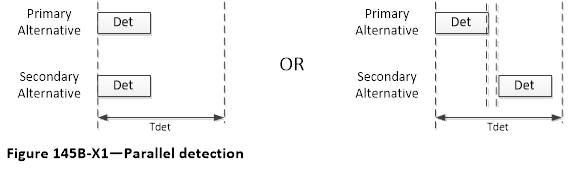

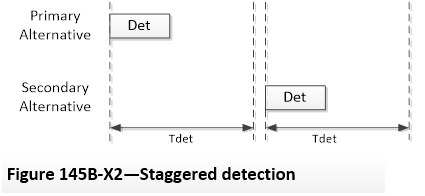

For clarity, to add drawings to Annex 145B.1 demonstrating the definition of parallel/staggered detection in 145.2.5.3 for CC_DET_SEQ.

Proposed remedy:

Add the following text and drawings after line 21 on page 281.



The PSE may use parallel or staggered detection per the definitions in 145.2.5.3 for implementing CC_DET_SEQ options.









Darshan Yair

Chief R&D Engineer

Analog Mixed Signal Group

Microsemi Corporation



1 Hanagar St., P.O. Box 7220
Neve Ne'eman Industrial Zone
Hod Hasharon 45421, Israel
Tel:  +972-9-775-5100, EXT 210.

Cell: +972-54-4893019
Fax: +972-9-775-5111



E-mail: <mailto:ydarshan@xxxxxxxxxxxxx>.
