Dear colleagues,

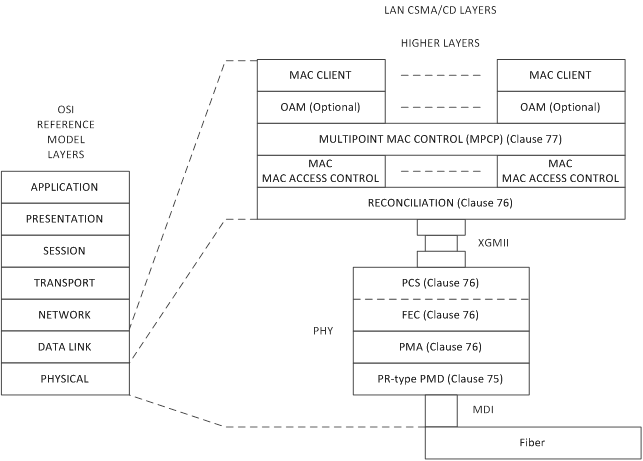

Below please find a drawing of an EPON OLT (10G-EPON one, 1G-EPON one can be created easily by replacing references to individual clauses) with and without IET

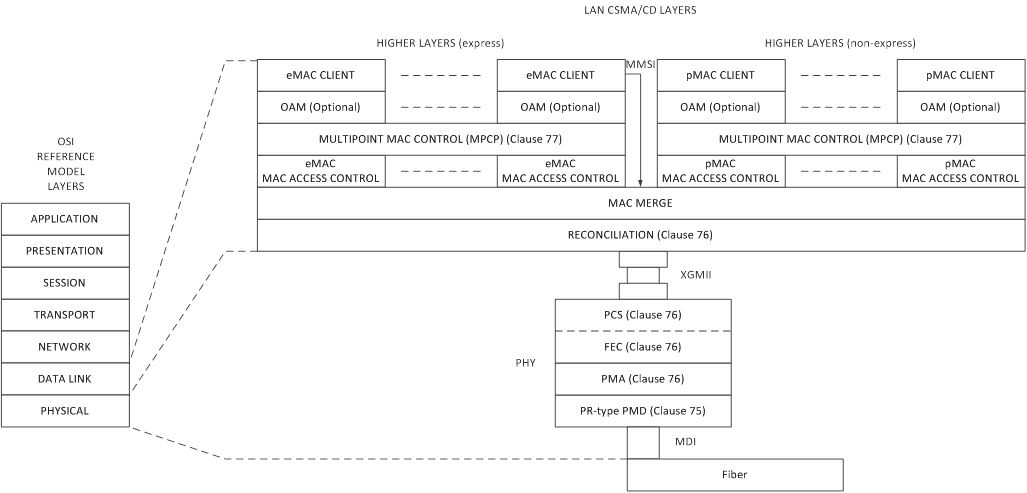

And here is the drawing with IET functions in place
Note that
- It is not clear to me whether this is the correct drawing, i.e., I would expect that when IET is supported, we’d not have any OAM and MPCP traffic on non-express paths, though it is not clear how to draw that more correctly. We could, for example, have eMAC/pMAC Clients combined with a single instance of OAM, and then have two MAC instances. However, this makes the drawing more complex to read and it is not clear whether that is the target functionality
- We will need to (likely) update also MAC Control Multiplexer, which takes control signaling from individual MAC Clients and MAC Control Clients and then drives individual MACs
- We will also need to go and touch Table 76–3—Preamble/SFD replacement mapping (and respective definitions for 1G-EPON in Clause 65) , since the express path, the preamble patterns will change right now with IET enabled, and we cannot be just looking for SFD and Idle patterns.
