Hi Scott,

Thanks for following up. If I don't have the patience to respond to this, I am very worried about my future handling my patience with my children, who test me x1000 more on the patience side at times😊.

Your questions are valuable, and I encourage you to continue sharing your thoughts. Please don't feel the need to apologize. I am new, and this is my 1st reflector exchange, but in general, I would be surprised if these forums were not meant to prompt questioning and understanding, and that is not how I took your previous response.

The main objective of the presentation I gave on latency was to provide a high-level overview and stimulate your thinking about these parameters. I intentionally didn't delve deeper due to time constraints, but I wanted to spark your interest in the importance of these latencies and their potential use cases. These systems rely on these latencies for critical decisions such as collision avoidance, object detection, and emergency braking at high speeds.

I will leave you with one crucial aspect to consider, and I hope this addresses some of the questions you raised.

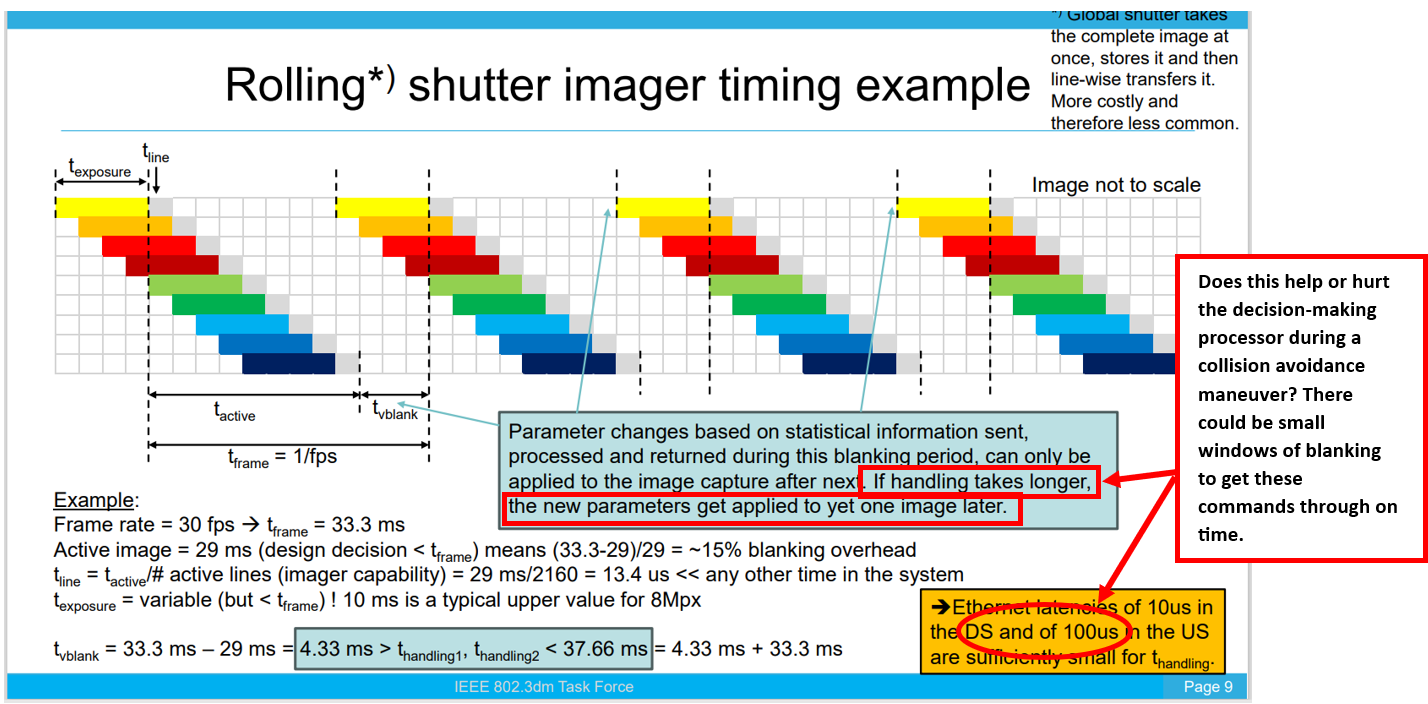

This means you now lost 33.33msecs for a 30FPS system, which means you have an additional 33.3msecs for the next frame. This now totals 66.7msecs, meaning the vehicle is moving 70mph (a standard interstate speed limit in the U.S. in many locations) – 6.8 feet additional vs 3.42 feet if those other commands got to the sensor on time. I get different aspects of this decision, but the question would get directed to me as a system engineer after a severe accident. Did you give the vehicle the best opportunity to respond accordingly for the communication link or was the system burden with unnecessary latencies that did not allow the processor to get that necessary information in time? Even worse, a simulation would show this latency difference was the determining factor in the accident's severity.

I mentioned the audio shortcomings of ethernet, as this hit home for me during my Tier 1 days. There are a lot of similarities to this, and the latencies are needed for real-time operating applications. The only difference here is that this system will make decisions that could determine a no/minor injury, severe injury, or loss of life scenario. System architects have to ask ourselves, did I give the processor its best chance to process the information in time and allow the system to make the necessary updates, or did I burden the system with unnecessary latency and not give it the best chance?

I appreciate your engagement and will address your other questions in a separate email. Your active participation is crucial for our collective understanding of this complex topic.

Best Regards,

From: Scott Muma <00003414ca8b162c-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Friday, August 9, 2024 4:04 PM
To: STDS-802-3-ISAAC@xxxxxxxxxxxxxxxxx
Subject: [EXTERNAL] Re: [802.3_ISAAC] Need for more Use-Case ad hoc meetings

Hi TJ, Thanks for the response, it’s good to hear that I am likely misunderstanding the message you intended to convey. However, I likely remain confused, so will explain my interpretation of some of the points and some questions it raised

Hi TJ,

Thanks for the response, it’s good to hear that I am likely misunderstanding the message you intended to convey. However, I likely remain confused, so will explain my interpretation of some of the points and some questions it raised for me. Your continued patience is greatly appreciated.

First in the processor to camera/sensor direction:

Slide 6 “Latency Requirements”

10us hard limit for a GPIO trigger or I2C command for functional safety
1-2us limit on GPIO trigger events
SERDES already achieves these latency requirements

Slide 7 “Latency and Jitter Application Diagram”

Trigger latency of <1-2us ideal
Schedule events if link cannot achieve <1-2us
Diagram illustrates rising edge of GPIO at processor to rising edge of GPIO at sensor having delay of 1-2us to achieve GPIO jitter of 1-2us
Diagram illustrates rising edge of GPIO at processor to rising edge of GPIO at sensor having delay of <10us with PTP to achieve GPIO jitter of 1-2us

Slide 9 “Summary”

It is proposed to limit the latency to 10us worst case in the switch to camera direction

Questions:

Slides 6 and 7 seem to be GPIO input to output delay when referring to latency. Is the latency limit proposed on slide 9 also GPIO input-output delay or something else?
For I2C commands is the 10us hard limit based on the clock stretching for the entire round-trip of the transaction or how would it be detected as a functional safety violation? If a system works a certain way then I can understand why this processor<>sensor round-trip time is critical and performance-limiting, but systems can work other ways to decouple the overall round trip time from the clock stretching to get better performance and compensate for the round-trip-time/network latency.
Given synchronization methods such as PTP and ability to schedule events like frame synchronization with low skew and low jitter at multiple sensors, what latency could be tolerated? 10us is mentioned, but I am interested in what really drives this limit… if it’s 50us or 100us, but with very low jitter/skew on the frame synch across sensors when does the processor start to be impacted?
Given a proposed latency limit of 10us in the topology shown on slide 7, is it possible to add an Ethernet switch between the Switch and Bridge without pushing the latency beyond the 10us hard limit? Or should the 10us limit apply up to a certain number of hops, or be understood differently?

Second in the camera/sensor to processor direction:

Slide 6 “Latency Requirements”

<1.0us latency limit from sensor to switch
<1.0us latency limit on video channel from sensor to switch

Slide 8 “Latency Requirements”

PCS to PCS block should not exceed 1us for 10Gbps
Diagram shows the SOP to SOP delay at the xMII of the bridge/switch should be <1us

Slide 9 “Summary”

It is proposed to limit the latency to … 1us worst case in the camera to switch direction.

Questions:

Slide 8 says latency, but describes delay on a very limited part of the link, how does this relate to the <1us latency limit in slide 6?
How could an Ethernet switch be inserted between the Bridge and Switch without exceeding the 1us latency limit in slide 6? Or is higher latency acceptable in this case?
If higher latency from sensor to processor is acceptable, then the information on Slide 6 seems out of context. Is it possible to provide this context or to give a clearer requirement on the sensor to processor latency?

I would not yet claim that 10us switch->camera and 1us camera->switch are not the true requirements, but these requirements will severely constrain the valid solutions and I am concerned it will take a networked topology off the table. -- May I ask how you concluded that this is not a true requirement and how this would directly impact network solutions, as this is a different requirement than I have described?

Apologies if the wording was unclear. I was saying that I am not yet convinced one way or the other if these are the requirements needed to meet the overall application requirements. Hopefully my questions above clarify why I’m concerned about the impact on a networked solution. I would be interested to understand how this is different from the requirement that you have described given that Ragnar referred below to these as your “proposed requirements”.

Similarly, if we state that the requirements are precisely the observed behavior of a point-to-point connection, then connecting the camera to processor over a network may not be possible/economical. –- This sounds like you’re describing two different requirements. The requirements I addressed directly reflect latency when communicating to sensors. The latency you’re describing is when this information wants to be passed into the network, which is a different requirement than I described. I would ask why we could not simply add other latency requirements for other network applications, add what you’re concerned about, and encourage you to share information about these.

Perhaps this is getting to the root of our difference in understanding. I suspect that some of the group (at least me) understands the proposed requirements to be requirements derived from the processor<>camera interaction and overall application requirements independent of the specific network topology/implementation. For example, if we have one requirement that says the system requires GPIO input-output delay must be <10us when point-to-point and another requirement that says it must be <100us over a network, then it means we require a PHY that supports the <10us case. However, it seems unlikely and undesirable that the system would have different requirements based solely on network topology and so that is why this approach is likely to result in an overconstrained PHY. On the other hand if we could say that the GPIO input-output delay can be up to 200us, but the skew/jitter at the output across multiple sensors is <1us for all topologies, then we can derive a looser PHY delay requirement and have much greater flexibility in making tradeoffs that can reduce the PHY complexity/cost/power, etc. which I understand to be some of the reasons for 802.3dm and what differentiates it from existing Ethernet PHYs.

Best Regards,

Scott

From: TJ Houck <thouck@xxxxxxxxxxx>
Sent: Thursday, August 8, 2024 7:34 PM
To: STDS-802-3-ISAAC@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_ISAAC] Need for more Use-Case ad hoc meetings

You don't often get email from thouck@xxxxxxxxxxx. Learn why this is important

EXTERNAL EMAIL: Do not click links or open attachments unless you know the content is safe

Hi Scott,

Thanks for the follow up. However, I don’t follow how this limits ethernet functionality, nor did my presentation say this was the only requirement. The applications I brought up were to propose limits on what the SERDES solutions address for their customers today. The presentation aimed to share how automotive ADAS systems are connected to sensors-bridge and Switch-processor. The GPIOs are used as critical trigger events for various applications, and latency is a crucial reason why SERDES solutions are used today since they address these needs desired by customers.

I believe Kirsten tried to make this point in the call, -- I must’ve missed when this was brought up.

Best Regards,

From: Scott Muma <00003414ca8b162c-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Thursday, August 8, 2024 2:35 PM
To: STDS-802-3-ISAAC@xxxxxxxxxxxxxxxxx
Subject: [EXTERNAL] Re: [802.3_ISAAC] Need for more Use-Case ad hoc meetings

Hi Ragnar, Max, I would also like to have more use case discussions, and appreciate your contributions so far. However, it would be useful to separate the behavior of specific implementations from the system/application requirements. TJ’s

Hi Ragnar, Max,

I would also like to have more use case discussions, and appreciate your contributions so far. However, it would be useful to separate the behavior of specific implementations from the system/application requirements.

TJ’s presentation made latency/delay understandable through diagrams, however, I understood the presentation was describing the behavior of a specific implementation.

To take this to an extreme, if we hypothetically connect a processor directly to an imager we could observe the behavior of that implementation and it might “require” even lower latency because of decisions made by the implementer even if the overall application has no direct requirement for such low latency. If we accept such requirements then there is no possible alternative but direct connection between camera and ECU.

Similarly, if we state that the requirements are precisely the observed behavior of a point-to-point connection, then connecting the camera to processor over a network may not be possible/economical. I believe Kirsten tried to make this point in the call, and if there is no network possible then Ethernet may be burdening the solution to the point that it can’t even achieve the point-to-point case at similar cost/power/latency. So to Max’s point on the call, I don’t expect anyone is against a solution that supports a networked topology (since that is the point of Ethernet), but overconstraining the valid solutions will prevent a networked topology.

Best Regards,

Scott

From: Ragnar Jonsson <rjonsson@xxxxxxxxxxx>
Sent: Thursday, August 8, 2024 8:57 AM
To: STDS-802-3-ISAAC@xxxxxxxxxxxxxxxxx
Subject: [802.3_ISAAC] Need for more Use-Case ad hoc meetings

EXTERNAL EMAIL: Do not click links or open attachments unless you know the content is safe

Hi Max and all,

At the end of yesterday’s meeting Max asked if we should have more Use-Case ad hoc meetings before the September meeting. There was a problem with my microphone, so you probably did not hear my comment. I think that we obviously need to have more Use-Case ad hoc meetings before the September meeting.

While yesterday’s ad hoc was a good start, we did not even have time to finish going over your proposed definitions of delay vs latency. Kirsten has already sent a follow-up email, highlighting the need for finishing that discussion.

I think that we need a deeper dive on the latency/delay requirements. There was a factor of 10 difference in the two proposed latency requirements presented in Montreal:

Kirsten presented

https://www.ieee802.org/3/dm/public/0724/matheus_dm_02b_latency_07152024.pdf

On slide 3 it states “It provides concrete examples of latency and latency requirements in a camera system.”

On slide 9 it states “Ethernet latencies of 10us in the DS and of 100us in the US are sufficiently small …”

TJ presented

https://www.ieee802.org/3/dm/public/0724/houck_fuller_3dm_01_0724.pdf

On slide 9 it states “It is proposed to limit the latency to 10us worst case in the switch to camera direction and 1us worst case in the camera to switch direction.”

TJ told us that these requirements are based on our conversations with multiple OAMs and with the ADAS SoC vendors.

There are also other issues that were brought up in Montreal related to Use-Cases that need further discussion.

In summary, we clearly need more Use-Case ad hoc meetings.

Ragnar
