Hi Kirsten,

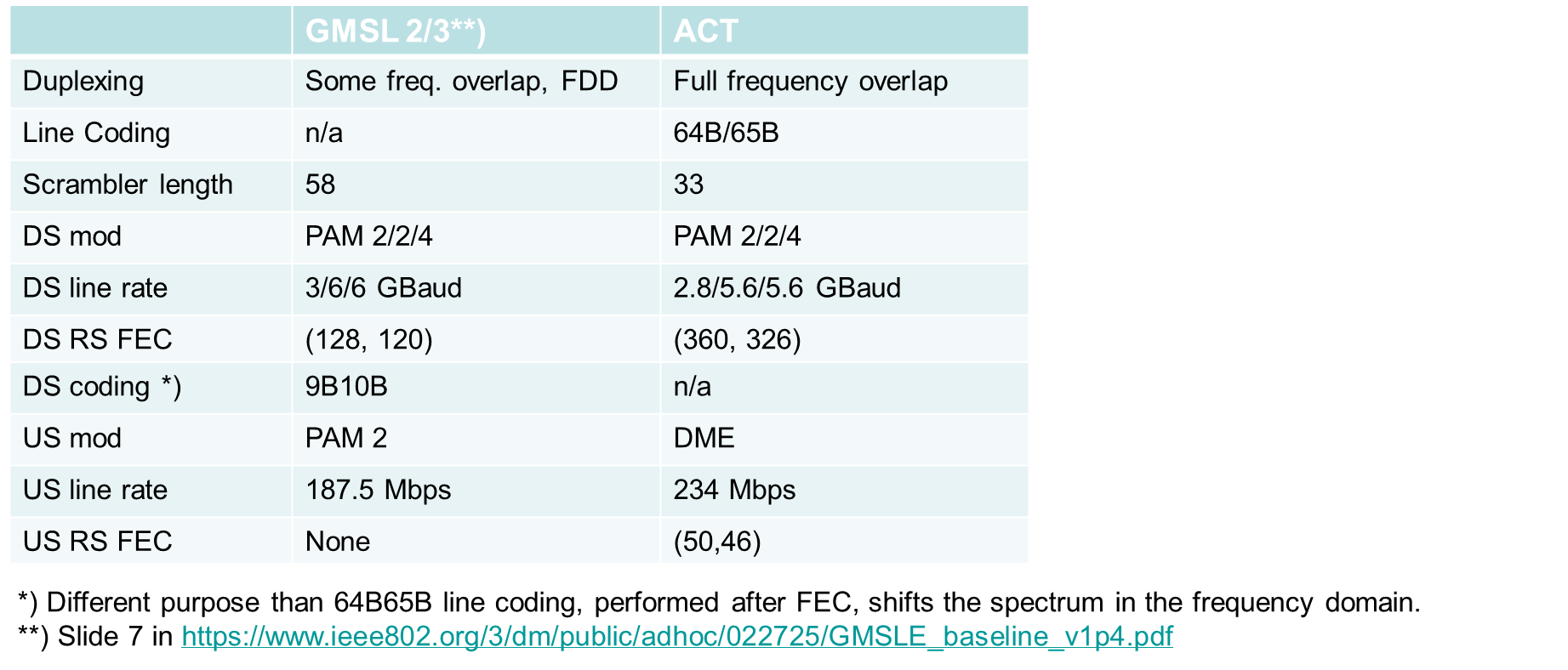

You said, "As far as I can see, there is no overlap or reuse between [the technology known as] GMSL 2/3 and ACT[+GMSLE], not even in the duplexing method."
I'd like to clarify a few points.
First, regarding the duplexing method, you might be thinking of the technology known as GMSL1, which does exhibit limited frequency overlap between high-speed and low-speed directions. In contrast, the technology known as GMSL3/2 does not have the limited overlap between the low speed and high-speed directions that GMSL1 has. As illustrated in the attached plot (see notes below), the technology known as GMSL2 operating at 3Gbps demonstrates has, in fact, complete overlap between high-speed and low-speed directions. The 9b10b encoding of GMSL2 does provide low frequency shaping of the PSD but there is still complete overlap. So, both GMSL2 and 64B65B encoded technology known as ACT+GMSLE utilize the same duplexing method although they have different scrambling and line coding schemes.
Although it does not preclude other approaches to handle the high speed and low speed overlap in ACT+GMSLE, the same echo subtraction approach utilized in GMSL3/2 may be used. While the 9b10b encoding of GMSL2 allows a high-pass filter to be applied at the
high-speed receiver to suppress low frequency echo residue from the low-speed transmitter without introducing baseline wander, there are several techniques which could be employed with ACT+GMSLE including high-pass filtering with a baseline wander compensation
circuit.
Secondly, concerning reuse between ACT+GMSLE and GMSL3/2, I have thoroughly reviewed the ACT+GMSLE proposal for IEEE 802.3dm and discussed it with designers affiliated with my company. We have determined that there is significant IP reuse between parts of the PMA for GMSL3/2 and ACT+GMSLE. In addition to the same echo subtractor being applicable to both ACT+GMSLE as well as GMSL3/2, the Baud rate in the high-speed direction is very similar, and the same line drivers and high-speed mixed signal receiver (CTLE+DFE) can be utilized as-is. A CDR can support both rates. While other receiver approaches may be employed, there is sufficient commonality between ACT+GMSLE and GMSL3/2 to enable the use of a single transceiver IP for both with minimal additional complexity. The primary difference in a common high-speed receiver is, in my opinion, the baseline wander compensation circuit which may be required if echo subtraction duplexing for ACT+GMSLE mentioned earlier is used. The ACT+GMSLE 117.1875Mbps DME upstream differs from the 187.5Mbps NRZ low speed in GMSL3/2, however as I demonstrated in my contribution, the ACT+GMSLE low speed receiver can be of very low complexity and exceed the immunity levels presented in Neven and Mehmet's contribution. The PCS digital logic and the MAC interfaces differ between 802.3dm and incumbent FDD solutions. This is not a surprise as one is Ethernet, and one is not. However, the intent, particularly with the reduced complexity of the combined and simplified ACT+GMSLE, is that many mixed signal blocks of the PMA and PMD can be reused between GMSL3/2 and ACT+GMSLE.
Rather than focusing on backward compatibility, my intention is to help define the standard to support "forward compatibility," enabling the same IP to be used with both an FDD CSI-2 based SerDes today and an ACT+GMSLE Ethernet MAC interface PHY in the future.
Regarding your statement, "If someone wants to implement a dual port ACT/GMSL PHY, it would be two PHYs next to each other." Yes, of course, a dual port PHY would require two PHYs next to each other. However, if instead you were referring to a dual-mode PHY, as I explained above, it is possible to develop IP blocks in the PMA which would support both approaches or even build a monolithic PHY IP PMA and PMD supporting both if someone wanted to. I and my co-author contributed GMSLE to 802.3dm with the hope of converging the two separate paths of the Task Force towards a common objective. I and my GMSLE co-author have worked with individuals affiliated with ACT to incorporate several ideas from GMSLE into the merged proposal which reduces the implementation complexity. In my opinion, the term 'ACT+GMSLE' is justified. I welcome comments on the reflector or at Ad-Hocs, IEEE Interims, and Plenaries regarding my contributions. For instance, several individuals have provided constructive technical feedback on my DME presentations, leading to improved analysis, simulation, and meaurement, which I intend to present in a future meeting. I am also prepared to review others' contributions, comparisons, and comments on the reflector and at IEEE meetings. Cordially, Joseph L. "Jay" Cordaro Affiliation: Analog Devices

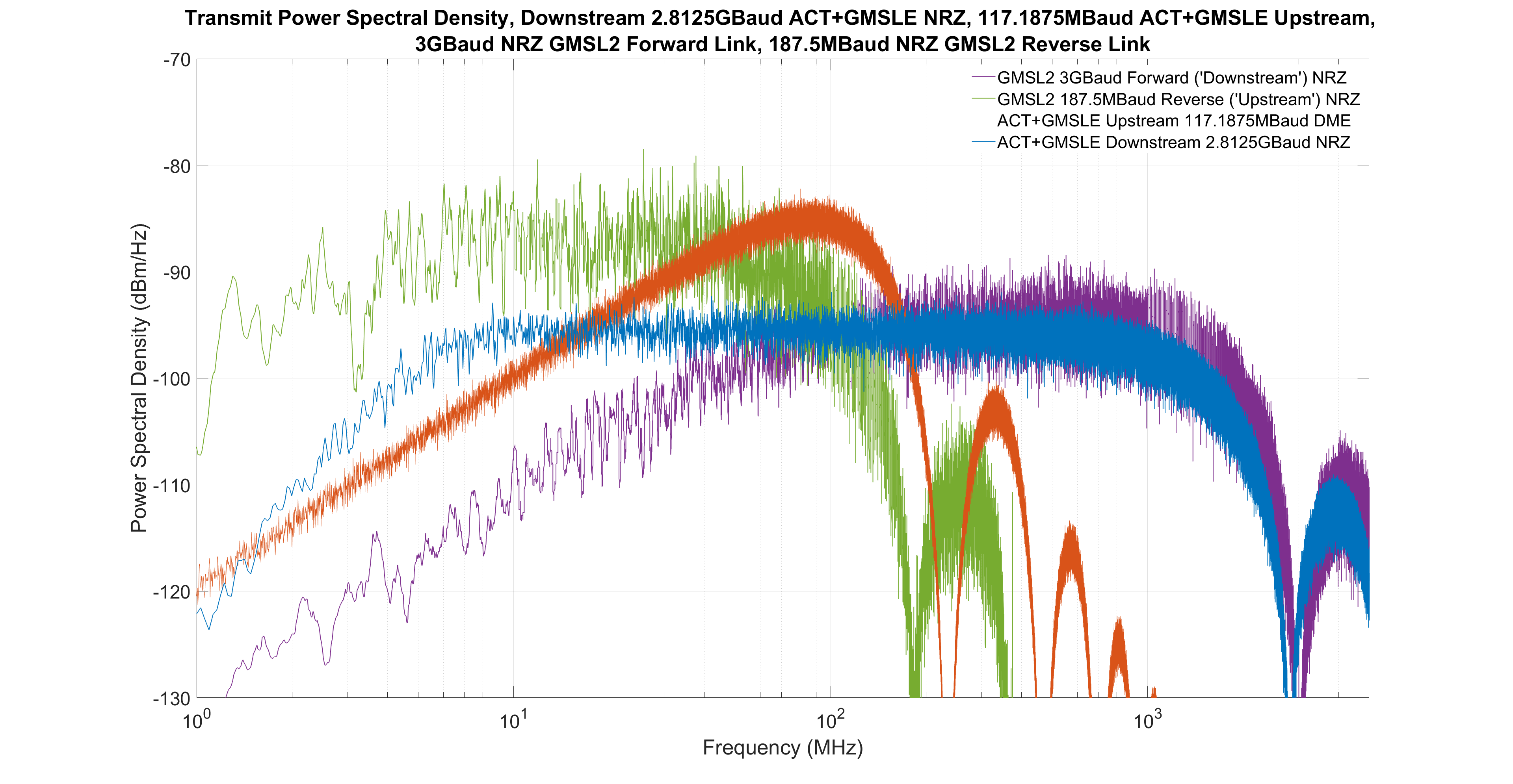

the attached picture shows in log frequency scale the output PSD of both sides of the link with the technology known as GMSL2 in the forward, high speed, 3GBaud NRZ and reverse, low speed, 187.5Mbps NRZ directions overlaid on the same graph. The PHY was operating
in single-ended coax mode. The PHY is transmitting random data and is not in a test mode. I have overlaid the one-sided single-ended PSD of the proposed technology known as ACT+GMSLE in the downstream and upstream directions with the transmit levels, 64B65B
encoding ,and Baud rates proposed. Random, scrambled data was generated.
