Hello Steve,
Thank you very much for your intensive feed-back.
I didn’t ask you changing your slide. I just expressed my view.
My understanding is the radius of GOF should be controlled in order to prevent fiber break.
My concern on automobile harness is it may be bended accidentally below critical radius in installation process and GOF cable diameter may become thicker than POF to avoid fiber
break.
I presented a video of 10.3125 Gbps transmission test under knotted and pulled condition with 2 mm diameter GI-POF cable at Feb. 9th Ad hoc meeting.
I tried to send the video file, but it was rejected by too much file size, unfortunately.
My basic question is which is better for OEMs or Tier 1s to select only OM3 or leave more options.
Best regards,
Yuji Watanabe, AGC
From: Swanson, Steven E <SwansonSE@xxxxxxxxxxx>
Sent: Monday, June 21, 2021 9:46 PM
To: 渡邊
勇仁(Watanabe Yuji)/AGC/事業開拓・インキュ
<yuji.watanabe@xxxxxxx>; STDS-802-3-OMEGA@xxxxxxxxxxxxxxxxx
Subject: RE: [EXTERNAL]--[802.3_OMEGA] Straw polls (Title is changed)
Watanabe-san,
As always, thanks for your comments and proposed changes. I am generally open to any proposed changes that helps move our process towards consensus; however
in this case, I cannot accept your view as depicted in your attached file and, while I already noted that the colors are somewhat subjective, I will maintain my original view as noted below:

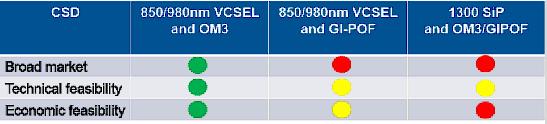

I have no real issue with adding mechanical robustness to the Table above but I cannot agree with your unsubstantiated claim that GI-POF is better than
glass optical fiber in tight bending conditions. If we want to move toward consensus in our process, we need to back up claims with solid technical data. During the last review cycle, I accommodated your change to remove “A4i” as the GIPOF type with a follow-up
question on what is being proposed and if a specification was available. I received no response and it is not clear to me what GI-POF is now being considered for this application.
I have offered to test the GI-POF and OM3 against key optical, mechanical and environmental requirements but you will not supply samples for testing.
I have been unsuccessful at this point to even buy any A4i GI-POF on the open market for comparison. My OM3 fiber is available for anyone to test and I remain open to testing that fiber at Corning’s test laboratories or at a third party test facility.
Regarding mechanical robustness, I summarize below several studies conducted by Corning over the years to prove mechanical robustness. I can also present
this material as a contribution at a later meeting if needed.
Corning Incorporated has been manufacturing optical glass fiber for over 50. Corning has developed tools and models to help customers understand the impact
on fiber’s mechanical reliability in a wide variety of applications where stress and strain are present. The cornerstone of our mechanical reliability modeling effort is the ability to incorporate tension, bending, various lengths under stress, and multiple
stress events into a single model. The present discussion on fiber in tight bends fits well with our prior work in fiber mechanical reliability.
The square symbols in the Figure below are all the flaws below 560 kpsi on nearly 4000 kilometers of fiber proof tested to 100 kpsi. The probability of
finding a flaw weaker than, say, 200 kpsi on a 1 meter length of this fiber is about 1x10-6.
Failure probabilities over a 25 year lifetime are very low.
Consider the following example of an installation with extreme fiber bending due to corners, storage,
and staples;

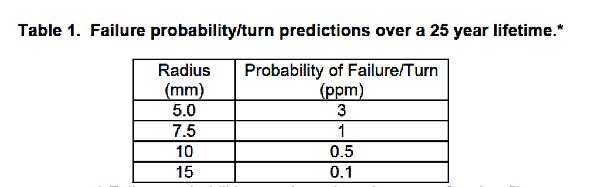

• Twenty permanent 90-degree turns around corners and each bent to a radius of 5 mm. This is equivalent to 5 full 360° turns. Using 3 ppm per turn, the failure probability
for corners is 15 ppm.
• Twenty full 360° storage turns at a 15 mm bend radii. This translates to a storage failure probability of 2 ppm (20x0.1).
• Finally, 70 staples causing the equivalent to approximately 3 full turns at 5 mm radius. This translates to a total staple failure probability of 9 ppm (3x3).
The total installed failure probability for this rather severe installation example is less than 30 ppm. One can conclude that risk of fatigue related
failures due to bending in installations is low. Now let us push this example further. Assume an entire hypothetical FTTH network consisting of 100,000 homes installed with the bending scenario described above. The predicted number of fatigue-related breaks
is less than 3 for the entire FTTH network over 25 years of operation.
Another example is our AOC which was designed to withstand multiple knots and sharp kinks during operation:

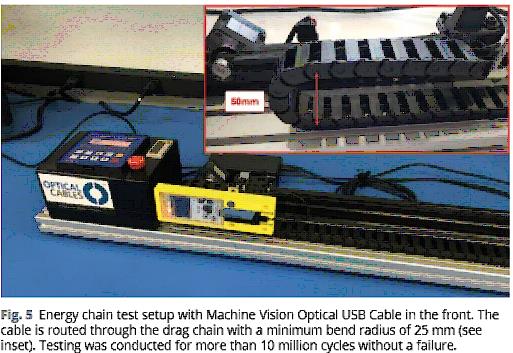

And finally, to characterize the design for its flexing ability, we designed and built the energy chain setup shown in the figure below. The moving
part of a belt-driven linear stage is such that the energy chain exhibits a 180° turn with a bending radius of only 25 mm. The travel of the stage was 350 mm and the setup ran with a cycle frequency of 1 Hz. The optical cable was fixed to the energy chain
at the ends of the chain only leaving it loose inside the chain, which represents a worst-case routing condition in terms of service durability.
We stopped the testing after more than 10 million cycles without a fail. After this test, the cable passed continuous functional testing:
To summarize, I believe OM3 glass is robust for the automotive application. I would like to ask if you can share similar data to support your claims that
POF is superior to GOF in terms of bend and tensile performance (breaks, deformation and attenuation increase), as well as furnish the multi-gig POF that you are proposing for this standard to be tested by a third party (or Corning if you like). We will gladly
supply our fiber to an agreed 3rd party for test.
I will be asking the task force tomorrow to support the short wavelength VCSEL/OM3 PMD variant as the best option for moving our standard forward in a
timely manner. I don’t believe the other variants are quite ready at this time.
Best regards,
Steve
Steven E. Swanson
Senior Standards Manager
Distinguished Associate
Global Technology & Industry Standards
MT&E
Corning Optical Communications
4200 Corning Place
Charlotte, NC 28216
m 607-725-1129
Standards are a bridge between markets and technologies; whoever controls the bridge controls the future…
