I agree that separate DBA domains for 10G and 25G upstream is desirable. In pure 50G greenfield we already have a mechanism—just use US0-A and US0-B (harstead_3ca_1_0917). Marek’s proposal is to extend this capability to the 10G PON brownfield co-existence scenario.

The disadvantages that I see:

A small DS/US gap for these 25/10 US0-A ONUs—only 25 nm. I don’t know the penalty, as funada_3ca_1_0117 does not address penalties for gaps this small. It could be sizable. Is there a risk that 25 nm gap is not implementable in the traditional 45 degree BOSA?
Lose the advantage John has cited with his favored plan, that of not requiring a new wavelength for 10G DMLs (1310 nm DMLs exist).

From: Marek Hajduczenia [mailto:mxhajduczenia@xxxxxxxxx]
Sent: Thursday, January 04, 2018 4:13 PM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGEPON] Upstream Wavelength Plan

That might James' opinion. I do not share it. We have enough spectrum to optionally allow WDM coexistence between 25G and 10G systems.

At the end of the day, I personally do not care about new 10G upstream, but only about making both 25G channels equally challenging and limit their dispersion penalty. I do know though that the optional ability to do 10G and 1G upstream separation in today's system is a saving grace in many deployments where these systems are overlapped on the same fiber strand. I do not see any advance of doing the overlap if we can have some separation between these systems

On Thu, Jan 4, 2018 at 2:08 PM, John Johnson <john.johnson@xxxxxxxxxxxx> wrote:

Marek,

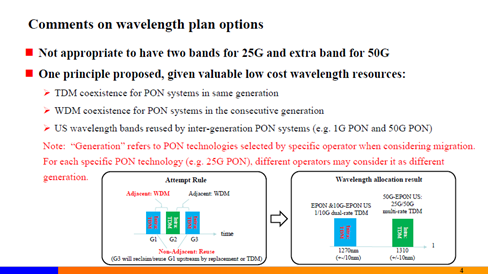

zhang_dezhi_3ca_2a_1117 proposed the principal that different rates in the same PON generation should share spectrum by TDM. I think that this principal should apply to 25G and 10G (using 25G protocol) upstream.

Ed, please add me to your list.

Regards,

John

On Thu, Jan 4, 2018 at 3:08 PM, Marek Hajduczenia <mxhajduczenia@xxxxxxxxx> wrote:

Ed et al.,

Here are two versions of what I was suggesting, depending on how we want to stack red 25/10G options

Please include me in the discussion chain.

Thanks

M

From: Harstead, Ed (Nokia - US) [mailto:ed.harstead@xxxxxxxxx]
Sent: Thursday, January 4, 2018 12:48 PM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] Upstream Wavelength Plan

All,

Per the discussion on today’s call: For anyone interested in joining the small group working to achieve consensus on the upstream wavelength plan, please send me an email.

Ed

From: Curtis Knittle [mailto:C.Knittle@xxxxxxxxxxxxx]
Sent: Wednesday, January 03, 2018 4:09 PM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] 1/4/18 IEEE 802.3ca (100G-EPON) consensus building meeting agenda

Dear Colleagues,

We have two contributions for consensus-building meeting on January 4, 2018:

Upstream Wavelength Plan - Ed Harstead
Upstream Burst Structure – Marek Hajduczenia

Meeting time is 11:30 – 1:00 Mountain Standard Time. Zoom details are below.

Curtis
