Hi Peter, My view is we should agree how many connector with appropriate return loss and also the loss and its’ placement in the link. Run some MPI sims and come up
with a number. For instance, it would be reasonable to consider 2, 4 and 6 connectors all with -35dB ORL. I think the minimum loss for ER is 10dB so we should use that as
a minimum. For LR we can use something like 4dB or 5dB (same idea as used for 802.3bs and 802.3cd for 10km). Thanks, Mark From: Peter Jones (petejone) [mailto:petejone@xxxxxxxxx]

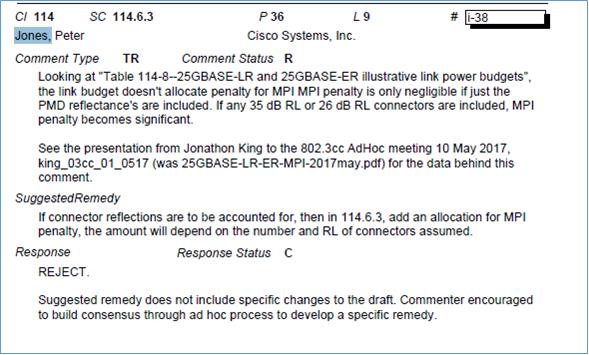

Folks, We have a meeting scheduled for Wednesday, June 7, 2017 2:00 PM-3:30 PM (UTC-08:00) Pacific Time (US & Canada). I think the major topic that is open is comment i-38 (see below) Anyone got any good ideas how to progress this topic? Please let me know by EOD Tuesday PT if you want to present on this, or any other topics. Regards Peter _________________________________________________
Peter Jones 802.3cc 25GSMF Task Force Ad Hoc Chair _________________________________________________
-----Original Appointment----- Extending series. ------------------------------- As announced in the F2F at the March meeting, (see
http://grouper.ieee.org/groups/802/3/25GSMF/public/1603_Macau/jones_25gesmf_01_0316.pdf ), the 802.3cc 25GSMF AdHoc will re-commence weekly meetings in the Wednesday 2:00pm-3:30pm PST
slot. The goal of these meetings is to hear contributions to progress the work of the Task Force. Please send requests for presentation time at least 24 hours before the meeting time (preferably earlier), and send presentations at least 24 hours in advance. If there are no requests for presentation time, the meetings will be cancelled. Regards Peter Jones 25GSMF 802.3cc AdHoc chair
|
