Hi all,

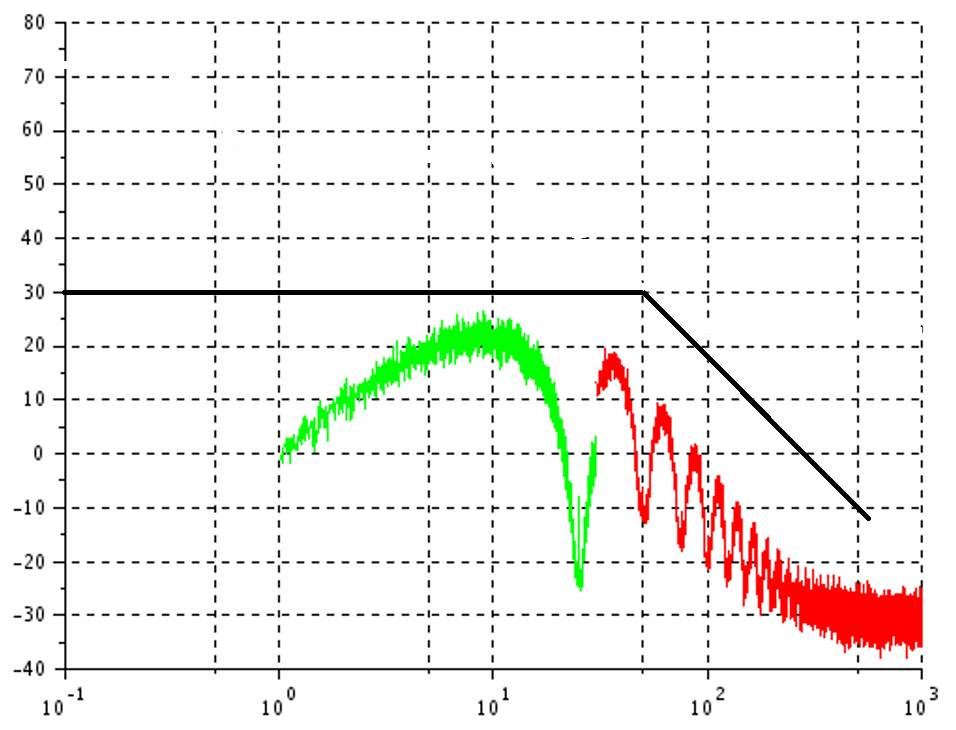

please find attached the result of 150 Ohm emission simulations of T1S
for R1/R2 5% unbalance and TX level = 0.7 V differential peak-to-peak and new proposed limits.
--
