Hi Laurent
Adding the reflectors to try to save time discussing this at the face-to-face meeting.

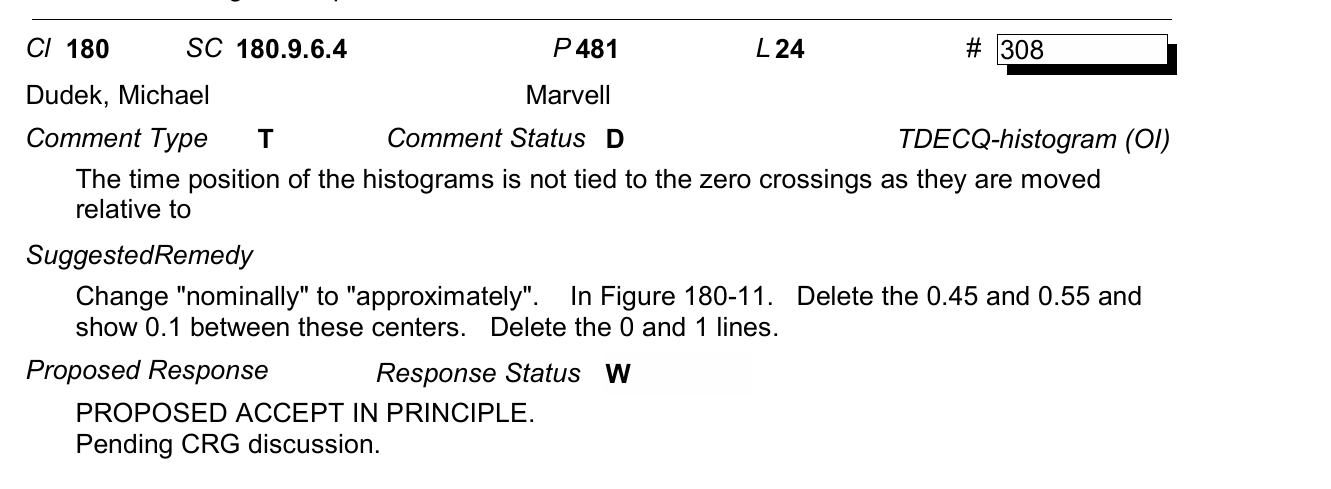

The sentences under discussion in D3.1 are:
“Two vertical histograms are measured through the eye diagram, nominally centered 0.05 UI before and after sampling phase \phi_0 … The precise time position of the pair of histogram windows is adjusted to minimize TDECQ while keeping the histogram windows spaced 0.1 UI apart."
I do agree that the second sentence was in D3.0 and I recall discussing the meaning of it with you in Munich. I interpret that sentence a bit differently than you do. You believe this means optimizing the taps at \phi_0 then sliding the two histogram windows across the entire \phi_0 -T/2 to \phi_0 + T/2 range to find their optimal location. (Please restate if I have not stated your position accurately.) I interpret those sentences to place the histogram windows, separated by 0.1UI, approximately centered at \phi_0 (from the word nominally) and make fine adjustments as necessary to optimize the symbol error rate. I do not interpret that to mean sliding the center of the windows across the entire unit interval.
I am interested in how others interpret those sentences. Again, since we are searching for the best \phi_0, I don’t think this adjustment of the histogram locations is necessary, which is why I have comments suggesting that the word “nominally” and the second sentence should be deleted. But if others disagree, I think we should try to make the meaning of those sentences clear so that there is no ambiguity in how it should be interpreted.
Regards,
