Re: [802.3BA] XR ad hoc Phone Conference Notice
I
concur with Petar. At Intel, we consider the Top 500 supercomputers
to be a bellweather for future commercial performance compute
cluster trends. Infiniband has been growing at a faster rate than
Ethernet in the Top 500 supercomputers partly because of lower latency
and partly because of higher bandwidth/$ compared to 10GbE in the recent
past. Instead of giving up the large commercial server cluster
interconnect market to Infiniband, 802.3 should define standards that
allow Ethernet to be more competitive. A low-cost 100m cable
spec for 40/100G is one of the required elements.
Rob Hays
Intel
Corporation
Paul,
I can't disagree more with you. If you go to top500.org,
and scroll down to "Other highlights from the latest list", the last bullet
says:
"The last system on the list
would have been listed at position 200 in the previous TOP500 just six months
ago. This is the largest turnover rate in the 16-year history of the TOP500
project."
So if the #200 from the
list from six months ago is now listed as 500, that means 300 NEW machines made
it to the top 500 list in just six months. This is 60% change in the list,
Contrary to your claim, this is a
look at the future.
Regards,
Peter
Petar Pepeljugoski
IBM
Research
P.O.Box 218 (mail)
1101 Kitchawan Road, Rte. 134
(shipping)
Yorktown Heights, NY 10598
e-mail:
petarp@xxxxxxxxxx
phone: (914)-945-3761
fax:
(914)-945-4134
| From:
| Paul Kolesar
<PKOLESAR@xxxxxxxxxxxx>
|
| To:
| STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
|
| Date:
| 07/11/2008 01:53 PM
|
| Subject:
| Re: [802.3BA] XR ad hoc Phone Conference
Notice |
Joel,
scanning the top 500 list is a look into
the past. How many super computers are produced each year? Probably
a few tens. That means this list is a compilation of more than 10 years
worth of super computers. InfiniBand only arrived on the scene in more
recent years, and really started to gain some market in more recent years than
that. Yet it already represents a quarter of the super computing links.
As proof of the interconnect market share trends see http://www.top500.org/overtime/list/31/conn
Here you will observe that
InfiniBand arrived on super computing machines in 2003 and since 2006 has been
the fastest growing interconnect protocol, at the expense of almost every other
protocol, including leveling out the spectacular growth of GbE.
The 802.1 activity is more
proof that this issue needs to be addressed. The degree of continued shift
towards InfiniBand will likely depend on the success of the 802.1
efforts.
My
statement was that the latency issue could drive this continued trend,
not that it absolutely would. I stand by my statement as I see no evidence
that refutes it, only evidence that supports it.
As I responded earlier, I am not
advocating a change to the 100m objective. But I will find it very
difficult to support a baseline that does not include a longer reach than this
with a low-cost solution.
Regards,
Paul Kolesar
CommScope
Inc.
Enterprise Solutions
1300 East Lookout Drive
Richardson, TX 75082
Phone: 972.792.3155
Fax: 972.792.3111
eMail:
pkolesar@xxxxxxxxxxxxx
| Joel Goergen
<joel@xxxxxxxxxxxxxxx>
07/11/2008 11:32 AM
|
Please respond
to
joel@xxxxxxxxxxxxxxx |
|
|
To
| STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
|
|
cc
|
|
|
Subject
| Re: [802.3BA] XR ad hoc Phone
Conference Notice |
|
Paul,
I have an issue with the following
statement:
“ Indeed, given that latency is a major performance concern
for HPC, the vendors of such machines may prefer to use InfiniBand. This
could mean that one of the primary customers to which we have tuned our present
objective will actually not use Ethernet, but will benefit anyway by driving
InfiniBand to adopt the same 100m PMD specs that 802.3ba defines.”
I reviewed the top 500 org
website for their June 2008 report on the top 500 supercomputers. Ethernet
at this point has a 56.8% share of the interconnects. See http://www.top500.org/stats/list/31/connfam. Infiniband has 24.20%.
So I believe that this demonstrates that this area will use Ethernet.
Next, in regards to latency, there is the Data Center Bridging Task Group
in 802.1 that is working on this.
Therefore, I do not agree
with the statement that “one of the
primary customers to which we have tuned our present objective will actually not
use Ethernet.”
thanks
-joel
Paul Kolesar wrote:
Steve,
thanks for furthering the
discussion. Your views make sense to me.
I'd like to examine

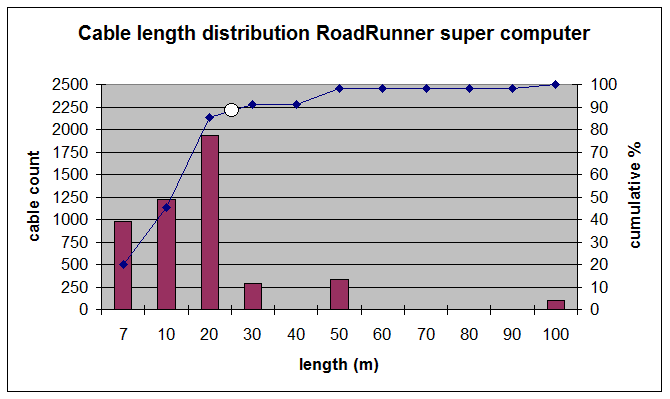

the super computer cabling distance distribution that Petar shared with us
yesterday in a bit more detail. I've plotted it to allow folks to see it
in graphical form.
This data has several features that are remarkably
similar to that of general data center cabling.
1) The
distribution is highly skewed towards the shorter end of the distribution.
2) The distribution has a very long tail relative to
the position of the mode, the most frequent length, at 20m.
3)
The mode is at a distance that is one fifth of the maximum length.
The white dot on the graph represents the coordinate of
equivalent coverage relative to the 100m objective to the data center cabling
distribution. Speaking to Steve's point that questions the correctness of
the 100m objective for HPC environments, I would venture to say that a 25m
objective, which is the roughly equivalent in coverage to the 100m objective we
are attempting to apply to data centers, would not be satisfactory for the HPC
environment, as it would leave a significant portion of the channels without a
low-cost solution.
It is clear that the 100m objective
is a near-perfect match to the needs of HPC. Yet I do not believe that HPC
should be the primary focus of our development. We must be developing a
solution that properly satisfies a much larger market than this or we are
wasting our time. Indeed, given that latency is a major performance
concern for HPC, the vendors of such machines may prefer to use InfiniBand.
This could mean that one of the primary customers to which we have tuned
our present objective will actually not use Ethernet, but will benefit anyway by
driving InfiniBand to adopt the same 100m PMD specs that 802.3ba defines.
This possibility reinforces my perspective that we need to properly
address a broader set of customers - those that operate in the general data
center environment. It is clear from all of the data and surveys that
remaining only with a 100m solution misses the mark for this broader market.
Continuing under this condition will mean that the more attractive
solution for links longer than 100m in the general data center will be to deploy
link aggregated 10GBASE-SR. Its cost will be on par and it will reach the
distances the customers need in their data centers.
Is this the future you want for all our efforts, or do you want
to face the facts and address the issue head on with a solution that gives data
center customers what they need?
Next week these
decisions will be placed before the Task Force. I hope we choose
wisely.
Regards,
Paul Kolesar
CommScope
Inc.
Enterprise Solutions
1300 East Lookout Drive
Richardson, TX 75082
Phone: 972.792.3155
Fax: 972.792.3111
eMail:
pkolesar@xxxxxxxxxxxxx
All,
I think Paul's suggestion is a good one; I
would like to add some other input (in the form of questions) from my point of
view:
1. Do we have the right MMF objective (support at least 100m on
OM3 fiber)?
My data suggests that we don't; we have tried
to come at this from two different directions, trying to be as unbiased as
possible in assessing the situation. I presented Corning sales data in November
2006 (see http://www.ieee802.org/3/hssg/public/nov06/swanson_01_1106.pdf). This data showed a need to support a link length
longer than 100m and I recommended that we support 200m at that
time.
We also polled our customers, offering three options, a low cost,
single PMD at 100m on OM3, a slightly higher cost single PMD at 150-200m on OM3,
and a third option that would specify two PMDs consisting of both option 1 and
option 2. The results were overwhelmingly in favor of Option 2, a single PMD at
longer length. A small number supported Option 3 (2 PMDs) but NONE supported
Option 1. While it is true that many of our customers have a substantial portion
of their link lengths that are less than 100m, they all have link lengths longer
than 100m. One customer noted that more than half of his data center had link
lengths longer than 100m.
Kolesar presented his company's sales data in
September 2006 (see http://www.ieee802.org/3/hssg/public/sep06/kolesar_01_0906.pdf). His data also suggested that longer link lengths
were needed and he recommended 150m at that time.
All the data for
datacenter seems to suggest that 100m is TOO SHORT to cover a significant
portion of the datacenter application.
Pepeljugoski presented new
data yesterday on HPC link lengths that show 85% being less than 20m and 98%
less than 50m. This might suggest that 100m is TOO LONG for HPC
applications.This leads to another question of whether there is any economic or
technical advantage to a shorter MMF objective for HPC?
2. Is
there consensus on supporting a longer reach objective for MMF?
I think
there is, others on the call yesterday did not. I base my opinion on the straw
poll conducted in Munich:
Straw Poll #15: Should we continue to work on a
proposal for an annex to extend the reach of a 40GBASE-SR4 and 100GBASE-SR10 in
addition to the proposal(“pepeljugoski_01_0508.pdf”) as in
“jewell_01_0508.pdf”.
Yes: 55
No: 3
3. Could we achieve 75% support for
adding a new MMF objective?
I don't know but if we could not, I would
be forced to vote against adopting the current MMF baseline proposal (which I
don't want to do) and I think others may also. This may or may not lead to an
impasse similar to what we experienced in 802.3ae.
I understand the concern that adding the
objective without a clear consensus on how to support the new objective could
lead to delay but I have found this committee to be very resourceful in driving
to a solution after we have made a decision to go forward. 40G is one recent
example of a situation where no consensus turned very quickly to
consensus.
I think adding a new objective is the
right approach and in the long run will save the task force valuable development
time.
4. Can we agree on the right
assumptions on the 10G model to evaluate the various proposals?
Everyone
seems to be using slightly different variations of the model to evaluate the
capability of the proposal; we need to agree on a common approach of
analysis.
5. Can we not let the discussion on OM4 cloud the
decision?
We can get extended link lengths on OM3. By achieving
longer lengths on OM3, even longer lengths will be possible on OM4 with the same
specification. What I don't want people to think is that OM4 is required to get
longer lengths.
6. Summary
John D'Ambrosia has provided
advice that if we want to move forward with a new MMF objective, July is the
time to do it - if we delay the decision, it is guaranteed to delay the overall
process. Some might think if we make the decision, it will delay the overall
process but we don't know that yet. I don't think adding an informative
specification on a PMD is the right way to go - let's get the MMF objective(s)
right - we owe it to ourselves and to our customers. To do anything less is just
avoiding the issue. Let's get the objectives set, get the assumptions correct
and utilize the process set up by Petrilla and Barbieri to drive toward the hard
decisions that we are all very capable of making.
Sincerely,
Steve
Swanson
From: Paul Kolesar [mailto:PKOLESAR@xxxxxxxxxxxx]
Sent: Thursday, July 10, 2008 7:19
PM
To: STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3BA] XR ad hoc Phone
Conference Notice
Alessandro,
I'd like to continue your thread with
some observations that have driven me to certain conclusions, and to follow that
with a suggestion about how to parse the approach and drive to a consensus
position.
First let's consider what various customers are
telling us. The Corning survey of their customers, which has been
presented to the Ethernet Alliance, the XR ad-hoc, and will be presented next
week to 802.3ba, shows that the large majority of customers want a single PMD
solution that can provide 150m on OM3 and 250m on OM4. A minority were
willing to accept a two PMD solution set that delivers the lowest cost PMD to
serve up to 100 m and a second PMD to serve the extended distances as above.
Not a single response indicated a preference for a solution limited to
100m. We also hear strongly expressed opinions from various system vendors
that a longer distance solution is not acceptable if it raises cost or power
consumption of the currently adopted 100m PMD. Under these conditions, and
given the options presented and debated within the XR ad-hoc, I believe you are
justified in concluding that a single PMD cannot satisfy all these constraints.
Yet it is clear to me that the market will demand a low-cost PMD that can
support more than 100m to fulfill the distance needs of data centers.
Therefore I conclude that the correct compromise position is to develop a
two-PMD solution. If the committee does not undertake this development, it
is likely that several different proprietary solutions will be brought to the
market, with the net result of higher overall cost structures.
So let's
consider how to choose from among the various proposals for an extended reach
PMD and let the determination of how to document it within the standard be
addressed after that.
I would propose a series of polls
at next week's meeting designed to gauge the preferences of the Task Force.
I do not think that any XR proposal will garner >75% at the outset, so
I would propose the use of Chicago rules wherein members may vote for all the
proposals they find acceptable. From this we can see which of the
solutions is least acceptable. Then through a process of elimination from
the bottom, and repeated application of Chicago rules for the remainder, finally
determine the most acceptable solution.
Depending on the
degree of maturity of the specifications or other considerations for the chosen
solution, the Task Force will be better able to determine how it should be
handled within the standard. For example, a proposal with a maturity on
par with the adopted baseline could be put forth under a new objective without
undue concern of becoming a drag on the timeline, while a proposal of lesser
maturity could be placed in an annex without an additional
objective.
Regards,
Paul Kolesar
CommScope
Inc.
Enterprise Solutions
1300 East Lookout Drive
Richardson, TX 75082
Phone: 972.792.3155
Fax: 972.792.3111
eMail:
pkolesar@xxxxxxxxxxxxx
Matt,
here is my *personal* read of the situation in
the XR ad hoc:
a) I think there could be consensus on supporting XR,
as long as we pick a solution that does not impact the cost structure of the
100m PMD. Because of that I also don't feel a single PMD is realistic at this
point.
a) The trouble however is that there is no consensus (>75%) on
any of the technical proposals. No one proposal has a clear lead over the
others.
Of the three options you list below, I think adding an objective
for a ribbon XR PMD could have a major impact on the project schedule, because
it seems we are nowhere near technical consensus. We could drag the discussion
for several TF meetings...I am not sure delaying the project over this specific
topic is worth it.
We can always resort to non-standard solutions
to fulfill market requirements we can't address within IEEE, or come back in the
future with another CFI.
At the end of the conference call earlier
today I requested that we get together after hours next week to see if we can
accelerate consensus building.
All the data is on the table now, so if we
don't show any material progress, I am not sure we should extend this ad
hoc.
Alessandro
From: Matt Traverso [mailto:matt.traverso@xxxxxxxxx]
Sent: Thursday, July 10, 2008 10:07
AM
To: STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3BA] XR ad hoc Phone
Conference Notice
Colleagues,
I
feel that we are coming to a situation similar to the impasse at 40G vs. 100G
where different participants call different segments of the networking industry
their customer.
For MMF, I'd like to see an optimized solution at
100m per all of the work that has been done.
I'd like to
understand if folks feel that a different status for the extended reach
a)
Informative
b) Normative
c) New objective
would significantly alter
the technically proposed solution from the Ad Hoc. Opinions?
Chris,
The case of slow market/industry transition from LX4 to LRM is one of
the reasons why I would like to see the industry adopt 40G serial from the
launch. The slow adoption of LRM has primarily been limited by end
customer knowledge of the solution. 40G serial technology is available.
thanks
--matt
Hi
Gourgen,
Some numbers might help clarify what
close to 0 means.
For 2008, Lightcounting gives a
shipment number of approximately 30,000 for 10GE-LRM (and for 10GE-LX4 it's
about 60,000.) So close to 0 would apply if we were rounding to the nearest
100K. As an aside, 10GE-LRM supports 220m of MMF, not 300m.
300m of OM3 is supported by 10GE-SR,
which Lightcounting gives as approximately 400,000 in 2008, so that would be
close to 0 if we rounding to the nearest 1M.
Another interesting sideline in looking
at these numbers is that 2 years after the 10GE-LRM standard was adopted in
2006, despite the huge investment being made in 10GE-LRM development, and
despite very little new investment being made in 10GE-LX4, the 10GE CWDM
equivalent (i.e. 10GE-LX4, 4x3G) is chugging along at 2x the volume of the 10GE
Serial solution that was adopted to replace it.
This should put some dim on hopes that
very low cost 40GE Serial technology can be developed from scratch in two years
and ship in volume when the 40GE standard is adopted in 2010.
Chris
From: Gourgen Oganessyan
[mailto:gourgen@xxxxxxxxxxx]
Sent: Wednesday, July 09, 2008
8:02 PM
To: STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3BA] XR ad hoc
Phone Conference Notice
Petar,
Well, sadly that's what has been
happening in the 10G world, people are forced to amortize the cost of 300m reach
(LRM), while in reality the number of people who need 300m is close to
0.
That's why I am strongly in support of
your approach of keeping the 100m objective as primary goal.
Frank, OM4 can add as much cost as it
wants to, the beauty is the added cost goes directly where it's needed, which is
the longer links. Alternatives force higher cost/higher power consumption on all
ports regardless of whether it's needed there or not.
Gourgen Oganessyan
Quellan
Inc.
Phone: (630)-802-0574
(cell)
Fax:
(630)-364-5724
e-mail: gourgen@xxxxxxxxxxx
From: Petar Pepeljugoski
[mailto:petarp@xxxxxxxxxx]
Sent: Wednesday, July 09, 2008
7:51 PM
To: STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3BA] XR ad hoc Phone
Conference Notice
Frank,
If I interpret
correctly, you are saying that all users should amortize the cost of very few
who need extended reach.
We need to be careful how we proceed here - we
should not repeat the mistakes of the past if we want successful
standard.
Regards,
Peter
Petar
Pepeljugoski
IBM Research
P.O.Box 218 (mail)
1101 Kitchawan Road, Rte.
134 (shipping)
Yorktown Heights, NY 10598
e-mail: petarp@xxxxxxxxxx
phone: (914)-945-3761
fax:
(914)-945-4134
Hi Jeff;
Thanks
for your comment. You missed one critical point that there is cost increase from
OM3 to OM4. If you take ribbon cable cost in perspective, OM4 option is possibly
the largest of the 4 options.
Besides, the use of OM4 requires to
tighten TX specs which impact TX yield, so you are actually compromising the
primary goal.
Frank
From: Jeff Maki [mailto:jmaki@xxxxxxxxxxx]
Sent: Wednesday, July 09, 2008 7:02 PM
To:
STDS-802-3-HSSG@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3BA] XR ad hoc Phone
Conference Notice
Dear MMF
XR Ad Hoc Committee Members,
I believe our current objective of "at
least 100 meters on OM3 MMF" should remain as a primary goal, the baseline.
Support for any form of extended reach should be considered only if it
does not compromise this primary goal. A single PMD for all reach
objectives is indeed a good starting premise; however, it should not be
paramount. In the following lists are factors, enhancements, or approaches
I would like to put forward as acceptable and not acceptable for obtaining
extended reach.
Not Acceptable:
1. Cost increase for the
baseline PMD (optic) in order to obtain greater than 100-meter reach
2. EDC on
the system/host board in any case
3. CDR on the system/host board as part of
the baseline solution
4. EDC in the baseline PMD (optic)
5. CDR in
the baseline PMD (optic)
Acceptable:
1. Use of OM4 fiber
2.
Process maturity that yields longer reach with no cost increase
In
summary, we should not burden the baseline solution with cost increases to meet
the needs of an extended-reach solution.
Sincerely,
Jeffery Maki
————————————————
Jeffery
J. Maki, Ph.D.
Principal Optical Engineer
Juniper Networks,
Inc.
1194 North Mathilda Avenue
Sunnyvale, CA
94089-1206
Voice +1-408-936-8575
FAX +1-408-936-3025
www.juniper.net
jmaki@xxxxxxxxxxx
————————————————
