Dear John and Robert,
I guess the editorial and some equation changes for (26-4) and (26-5) would be covered by the following contributions.
https://mentor.ieee.org/802.11/dcn/16/11-16-1179-01-00ax-phy-section-editorial-comments-on-d0-4.docx
Thank you.
Sungeun
From: *** 802.11 TGax - HEW - High Efficiency WLAN *** [mailto:STDS-802-11-TGAX@xxxxxxxx]
On Behalf Of Zhujun (John)
Sent: Tuesday, September 13, 2016 11:06 AM
To: STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGAX]
答复: TG Draft D0.4
Hello Robert,
Thanks for your great effort for the new version of draft.
I noticed some minor mistake in D0.4, and it may need editorial changes for the referring section.
1.

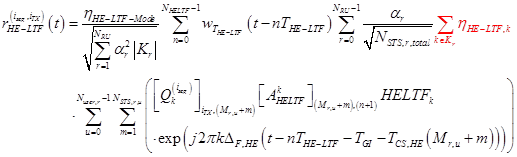

Section26.3.9, P152-L9, equation 26-4 and 26-5 should be described as in the motioned text (CR motion #30 in July meeting).
should be used here instead of
or
.
26-4
26-5
2.
Section26.3.10.10, P196-L1, equation 26-61 should be described as in the motioned text (CR motion #30 in July meeting).
should be put after
instead of before it.
26-61
Can you double check and modified the text as highlighted in red?
Thanks,
John (Jun Zhu)
发件人: *** 802.11 TGax - HEW - High Efficiency
WLAN *** [mailto:STDS-802-11-TGAX@xxxxxxxx]
代表 Rui Cao
发送时间: 2016年8月31日 5:33
收件人:
STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGAX] TG Draft D0.4
Hi Robert,
Thanks for the great efforts.
I noticed one text spec change is not completely included Draft D4.0: PHY Motion #158 from July IEEE meeting with spec text document 11/16-0892r0. The spec text in document in 11/16-0892r0 is shown in the following,
An HE STA may support the following Clause 26 features:(#351)
―LDPC coding for 26-, 52-, 106- and 242-tone RUs (transmit and receive)
for MCS0~MCS9 when the number of spatial streams is less than or equal to 4
―LDPC coding for a 20 MHz HE SU PPDU (transmit and receive)
for MCS0~MCS9
when the number of spatial streams is less than or equal to 4
Can you double check and add these text highlighted in red?
Thanks,
Rui
From: *** 802.11 TGax - HEW - High Efficiency WLAN *** [mailto:STDS-802-11-TGAX@xxxxxxxx]
On Behalf Of Osama AboulMagd
Sent: Tuesday, August 30, 2016 4:55 AM
To: STDS-802-11-TGAX@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGAX] TG Draft D0.4
Hello All,
A new revision of the TG draft (D0.4) is now available in the member area.
Thanks to Robert for putting the draft together.
Regards;
Osama.
