Thanks Edward – good catch. I will fix it in the next rev of the doc.
From: Edward Au <edward.ks.au@xxxxxxxxx>
Sent: Thursday, September 10, 2020 9:28 AM
To: Abhishek Patil <appatil@xxxxxxxxxxxxxxxx>
Cc: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] PDT MAC MLO Power-save procedures
CAUTION: This email originated from outside of
the organization.
Hello Abhi,
I am sorry if I do not express myself clearly. The definition is correct and it is up to 255.
Since your table has two separate entry on Reserved because you use 221 as for vendor specific, my comment is to change
|
Subelement ID |
Name |
Extensible |
|
0 |
Per-STA Profile |
No |
|
1–255 |
Reserved |
|
|
221 |
Vendor Specific |
Vendor defined |
|
222–255 |
Reserved |
|
to
|
Table 9-xxx – Optional subelement IDs for Multi-Link |
||
|
Subelement ID |
Name |
Extensible |
|
0 |
Per-STA Profile |
No |
|
1–220
|
Reserved |
|
|
221 |
Vendor Specific |
Vendor defined |
|
222–255 |
Reserved |
|
P.S: Sorry again - I mean 1274!
Regards,
Edward
On Thu, Sep 10, 2020 at 12:22 PM Abhishek Patil <appatil@xxxxxxxxxxxxxxxx>
wrote:
Hi Edward,
Thank you for your feedback.
I was following the examples in baseline (REVmd) spec.
For example, the Neighbor Report IE or MBSSID IE has a range up to 255.
Is there a reason why we can’t go beyond 220?
I noticed 222-255 are reserved for both cases.

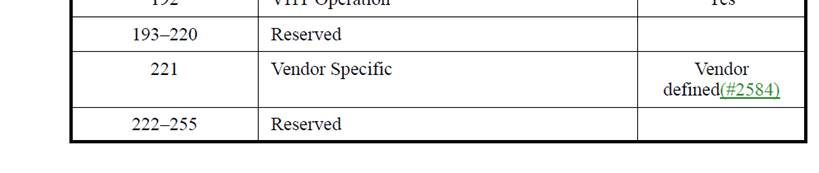

Below snipped from Neighbor Report IE:
Regards,
Abhi
Ps: I believe your feedback applies to doc 1272 (Multi-Link element) – not the power-save document (1270) – is that correct?
From: Edward Au <edward.ks.au@xxxxxxxxx>
Sent: Thursday, September 10, 2020 8:36 AM
To: Abhishek Patil <appatil@xxxxxxxxxxxxxxxx>
Cc: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] PDT MAC MLO Power-save procedures
CAUTION: This email originated from outside of the organization.
Hi Abhi,
Not sure if the members have provided you the following feedback on the following table:
For the second entry "Reserved", is the range of Subelement ID "1-220" rather than "1-255"?
Please kindly advise.
Regards,
Edward
On Mon, Aug 24, 2020 at 11:50 PM Abhishek Patil <appatil@xxxxxxxxxxxxxxxx> wrote:
Hello to all TTT members for MLO power-save procedures,
I have posted document 11-20/1270 which provides draft text for MLO power save procedures.
https://mentor.ieee.org/802.11/dcn/20/11-20-1270-00-00be-pdt-mac-mlo-power-save-procedures.docx
Could you please review and let me know if you have any inputs?
Regards,
Abhi
