[STDS-802-11-TGBE] 答复: CR for 36.3.22 and Annex E uploaded

Hi Ruchen,



Thanks for the response. We can discuss during your presentation. If needed, we can describe it in the first place where it shows up, e.g., U-SIG subclause.



regards

于健 Ross Jian Yu

Huawei Technologies



发件人: Ruchen Duan [mailto:r.duan@xxxxxxxxxxx]
发送时间: 2021年3月10日 15:26
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] CR for 36.3.22 and Annex E uploaded



Hi, Ross



Thank you for the comment. I originally have the same thoughts, and that is how I compose Annex E for Draft 0.3. And I realize that the Operating class should not be abused, so yes, it may not be proper to split.



Then I feel that we shall find better place to define 320-1 and 320-2 other than Annex E, because we never define any BW (20/40/80/160 and 80+80) in Annex E. I think we can discuss during the PHY meeting to find a proper location for this definition.



Best,

Ruchen



From: Yujian (Ross Yu) [mailto:ross.yujian@xxxxxxxxxx]
Sent: Tuesday, March 9, 2021 10:46 PM
To: Ruchen Duan <r.duan@xxxxxxxxxxx>; STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: 答复: CR for 36.3.22 and Annex E uploaded



Hi Ruchen,



Can you clarify why we need two different operating class in Annex E for 320-1 and 320-2?



I think the comment just wants to have some description of what is 320-1 and what is 320-2. You can add some description, which is similar as in SFD.

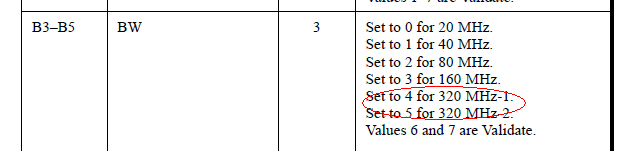

In addition to four entries for 20/40/80/160MHz, there exists two entries in U-SIG BW field for 320 MHz:

・         320-1 if PPDU channel center frequency is 31, 95, 159.

・         320-2 if PPDU channel center frequency is 63, 127, 191.

[Motion 135, #SP237, [48] and [80]]





regards

于健 Ross Jian Yu

Huawei Technologies



发件人: Ruchen Duan [mailto:r.duan@xxxxxxxxxxx]
发送时间: 2021年3月10日 4:15
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: [STDS-802-11-TGBE] CR for 36.3.22 and Annex E uploaded



Hi, Alfred, Sigurd and Tianyu



Please add the following document to the PHY queue.



https://mentor.ieee.org/802.11/dcn/21/11-21-0424-00-00be-cr-for-36-3-22-and-annex-e.doc



Thank you and best,

Ruchen
