Re: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



Hi, Yujin.



Thank you for https://mentor.ieee.org/802.11/dcn/21/11-21-0157-02-00be-pdt-effect-of-ch-bandwidth-parameter-on-ppdu-format.docx.



While I understand the document has passed SP last week, I find the portions related to non-HT duplicate transmission difficult to understand.

For example, Table 36-x2 is purely about transmitting non-HT duplicate PPDUs, but it talks about “non-OFDMA” and “OFDMA” cases.  But non-HT duplicate PPDUs have no concept of non-OFDMA and OFDMA.



I suggest to

  • Delete Table 36-x2 and relevant texts
  • Put non-HT duplicate related information in Table 36-x1



Attached document is one such implementation.



Thanks.

Youhan





From: Yujin Noh <Yujin.Noh@xxxxxxxxxxxx>
Sent: Tuesday, April 6, 2021 6:33 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



CAUTION: This email originated from outside of the organization.

Hi Lei,



Thank you for your comment.

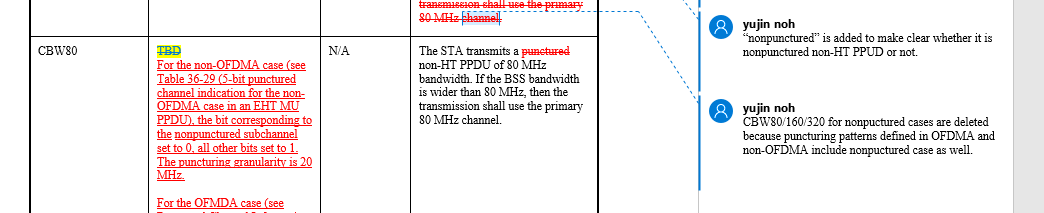

In the uploaded version on the server, it’s been fixed as below.

I hope it could be able to reflect your intention (nonpunctured or punctured) as well.





Regards,

Yujin



From: HUANG LEI huang.lei1@xxxxxxxx
Sent: Tuesday, April 6, 2021 6:27 PM
To: Yujin Noh <Yujin.Noh@xxxxxxxxxxxx>; STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: RE: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



**BE CAUTIOUS** THIS EMAIL ORIGINATED FROM OUTSIDE SENSCOMM. DO NOT CLICK ANY LINKS OR OPEN ATTACHMENTS UNLESS YOU RECONGNIZE THE SENDER AND KNOW THE CONTENTS ARE SAFE. ALSO BE CAUTIOUS WHEN ‘REPLYING TO ALL’.

Hi Yujin,



Thanks. Attached please find my comments.



Best regards,

Lei



From: Yujin Noh <Yujin.Noh@xxxxxxxxxxxx>
Sent: Wednesday, April 7, 2021 2:47 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



Hi Alice and all,



Please find the updated version.

  • Added B3-B6 of U-SIG2 to make it clear for the OFDMA case.
  • remove nonpuctured cases for CBW80/160/320 from the table.



If you have comments or concerns, please let me know.



Regards,

Yujin



From: Yujin Noh <Yujin.Noh@xxxxxxxxxxxx>
Sent: Monday, April 5, 2021 2:36 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



**BE CAUTIOUS** THIS EMAIL ORIGINATED FROM OUTSIDE SENSCOMM. DO NOT CLICK ANY LINKS OR OPEN ATTACHMENTS UNLESS YOU RECONGNIZE THE SENDER AND KNOW THE CONTENTS ARE SAFE. ALSO BE CAUTIOUS WHEN ‘REPLYING TO ALL’.

Hi Alice,



That’s a good point.

I will update it based on your two comments.



Regards,

Yujin



From: Alice Jialing Li <jialing.li.phd2@xxxxxxxxx>
Sent: Monday, April 5, 2021 2:32 PM
To: Yujin Noh <Yujin.Noh@xxxxxxxxxxxx>
Cc: TGBE <STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx>
Subject: Re: [STDS-802-11-TGBE] PDT for Effect of CH_BANDWIDTH parameter on PPDU format



**BE CAUTIOUS** THIS EMAIL ORIGINATED FROM OUTSIDE SENSCOMM. DO NOT CLICK ANY LINKS OR OPEN ATTACHMENTS UNLESS YOU RECONGNIZE THE SENDER AND KNOW THE CONTENTS ARE SAFE. ALSO BE CAUTIOUS WHEN ‘REPLYING TO ALL’.

Hi Yujin,



Two comments to Table 36-x2 in the PDT:

1. For the OFDMA case, do you need to refer to the 4-bit bitmap (B3-B6 of U-SIG-1) to be more specific?



2. Is there a need to split each CBW into the nonpunctured case and punctured case? Note that the non-OFDMA case includes the nonpunctured pattern. In the next spec draft which will incorporate resolved CIDs in the U-SIG subclause, the pattern '1111' would be added to the OFDMA case as well. So, the nonpunctured case is just a special case to the general _expression_ of the punctured pattern.



Best regards,

Alice Chen

Qualcomm







On Mon, Apr 5, 2021 at 12:40 PM Yujin Noh <Yujin.Noh@xxxxxxxxxxxx> wrote:

Hi all,



Attached please find the PDT for Effect of CH_BANDWIDTH parameter on PPDU format.



Based on the discussion last teleconference call, all the puncturing patterns for both non-OFDMA and OFDMA are included in INACTIVE_SUBCHANNELS parameter.

With this PDT to be approved, then one CID linked to this document would be ready.



Let me know if you have any comments and questions.



Regards,

Yujin
