Re: [STDS-802-11-TGBE] [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Boyce, Frank,

Thanks for sharing your comments. Please see the attached document with some responses.

There have been some questions/comments on the traffic requirement etc. and questions on TIDs' role here.
We agree that STA may want to share the traffic characteristics and requirements with AP or even wants to change default packet classification (mapping) to TID. Those can be done using existing or extended tool(s) (TSPEC e.g.). I believe Duncan etc. have a contribution on TSPEC variant/lite, and Dibakar etc. have a contribution on SCS change.
In this set up procedure, we focus on the general rTWT set up procedure, and that it operates at TID level inline with that the blockack agreement is established at TID level.
Please note that there is a subclause 35.7.2.2 traffic classification/requirements are discussed.

Thanks.
Chunyu

On Mon, Apr 26, 2021 at 12:02 PM Chunyu Hu <chunyuhu07@xxxxxxxxx> wrote:
Hi, Jarkko:

Since restricted TWT is intended to service latency sensitive traffic, we need a mechanism to provide the identification for such traffic streams. TID is the right level rTWT operates at to avoid problem such as head-of-fifo blocking.
So in both DL and UL, the traffic transmitted during rTWT SPs is constrained to the TID(s) that AP/STA agreed on during the rTWT setup.

Thanks.
Chunyu

On Mon, Apr 26, 2021 at 11:12 AM Jarkko Kneckt <00000d5619618f4f-dmarc-request@xxxxxxxxxxxxxxxxx> wrote:
Hi Chunyu,

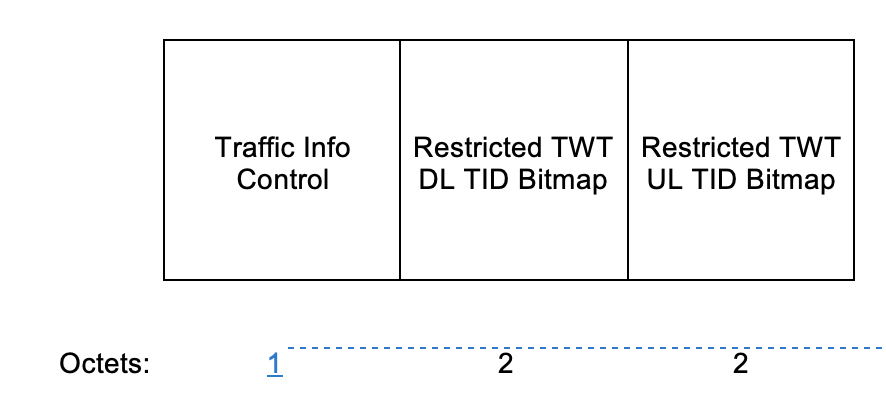

the R-TWT proposal has DL TID and UL TID bitmaps.
I am wondering how these are used?

- In DL why would AP limit the TIDs it is allowed to transmits to the STA?
- In UL can STA transmit from other TIDs than signaled here?

Cheers,
Jarkko


On Apr 26, 2021, at 01:34, Frank Hsu (徐建芳) <frank.hsu@xxxxxxxxxxxx> wrote:

Hi, Chunyu,

Thanks for the updated contribution. I add my comments after Boyce’s doc.

BRs,
Frank


From: Yangbo (Boyce, 2012 NT Lab) [mailto:yangbo59@xxxxxxxxxx]
Sent: Monday, April 26, 2021 11:45 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] 答复: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi Chunyu,

Thank for the updated contribution. I have some further comments, please find them in the attached.

Regards
Boyce

发件人: 顾祥新 (Xiangxin Gu) [mailto:Xiangxin.Gu@xxxxxxxxxx]
发送时间: 2021年4月25日 17:28
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi Chunyu,

Thank you for the perfect contribution!

I added my comments in the attached file.


BR,

Xiangxin
Unisoc Technologies Co., Ltd.
+86 21 20360600 3324



From: Rubayet Shafin <r.shafin@xxxxxxxxxxx>
Sent: Saturday, April 24, 2021 2:42 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi Chunyu,

Thank you so much for this contribution. You have drafted an excellent spec text.

In addition to Stephane’s and Rojan’s comments, please find the attached document for my comments on your draft.

Have a wonderful weekend!

Best
Rubayet

From: Chunyu Hu <chunyuhu07@xxxxxxxxx>
Sent: Friday, April 23, 2021 7:50 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Thanks all for your feedback. Please see the updated rev1: 11-21/462r1 on server:

Stephane, Rojan, please see attached document for responses to your comments inline.

Thanks!
Chunyu


On Wed, Apr 21, 2021 at 2:04 AM BARON Stephane <Stephane.BARON@xxxxxxxxxxxx> wrote:
Hi Chunyu,

Thank you for initiating the review on this document.
In addition to Rojan’s comments, please in the attached document my comments on this subject.

Best regards.


Stéphane.


From: Rojan Chitrakar <rojan.chitrakar@xxxxxxxxxxxxxxxx>
Sent: mercredi 21 avril 2021 05:53
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi Chunyu,

Thanks for preparing the CR. Please see attached for my comments.

Regards,
Rojan

From: Chunyu Hu <chunyuhu07@xxxxxxxxx>
Sent: Wednesday, April 21, 2021 10:48 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi, all:

Will you review and provide your feedback to this draft text that resolves some TBD/CID?


Appreciate your input.
Thanks.
Chunyu
