[STDS-802-11-TGBE] 答复: [STDS-802-11-TGBE] [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause

Hi Chunyu,



Thanks for the response.



Some problems come into my mind if TID level is used.



1, [fairness and abuse issue] If a STA maps latency-sensitive and non-latency-sensitive traffic to the same TID, the STA is allowed to use rTWTs to transmit non-latency-sensitive traffics as well,  due to the fifo block issue you mentioned (although I believe this is not a problem at all, most of designs of TID queues are software-based.). This is not fair to latency-sensitive traffics in other STAs, especially when the data volume of  the non-latency-sensitive traffic is huge.

For example, a “smart” STA can map buffered video to the same TID with latency-sensitive traffic. So the STA’s buffered video traffic would have higher priority than other STA’s buffered video traffic. The QoS of its own latency-sensitive traffic is not affected as long as the STA is able to handle the so-called “fifo-blocking” problem which is very simple. And latency-sensitive traffics from other STAs have to compete with the non-latency-sensitive traffic.



2, [resource allocation issue] The EHT AP has to allocate a lot of resources for the STA, if the data volume of latency-sensitive traffic is small and the data volume of non-latency-sensitive traffic mapping to the same TID is large.



So I don’t think we should use TID level just because of head-of-fifo blocking problem(which is not a big deal for most of devices nowadays).



Regards

Boyce



发件人: Chunyu Hu [mailto:chunyuhu07@xxxxxxxxx]
发送时间: 2021年4月27日 6:13
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Boyce, Frank,



Thanks for sharing your comments. Please see the attached document with some responses.



There have been some questions/comments on the traffic requirement etc. and questions on TIDs' role here.

We agree that STA may want to share the traffic characteristics and requirements with AP or even wants to change default packet classification (mapping) to TID. Those can be done using existing or extended tool(s) (TSPEC e.g.). I believe Duncan etc. have a contribution on TSPEC variant/lite, and Dibakar etc. have a contribution on SCS change.

In this set up procedure, we focus on the general rTWT set up procedure, and that it operates at TID level inline with that the blockack agreement is established at TID level.

Please note that there is a subclause 35.7.2.2 traffic classification/requirements are discussed.



Thanks.

Chunyu



On Mon, Apr 26, 2021 at 12:02 PM Chunyu Hu <chunyuhu07@xxxxxxxxx> wrote:

Hi, Jarkko:



Since restricted TWT is intended to service latency sensitive traffic, we need a mechanism to provide the identification for such traffic streams. TID is the right level rTWT operates at to avoid problem such as head-of-fifo blocking.

So in both DL and UL, the traffic transmitted during rTWT SPs is constrained to the TID(s) that AP/STA agreed on during the rTWT setup.



Thanks.

Chunyu



On Mon, Apr 26, 2021 at 11:12 AM Jarkko Kneckt <00000d5619618f4f-dmarc-request@xxxxxxxxxxxxxxxxx> wrote:

Hi Chunyu,

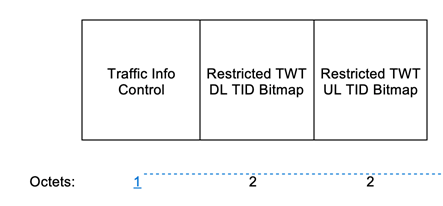

the R-TWT proposal has DL TID and UL TID bitmaps.

I am wondering how these are used?



- In DL why would AP limit the TIDs it is allowed to transmits to the STA?

- In UL can STA transmit from other TIDs than signaled here?



Cheers,

Jarkko





On Apr 26, 2021, at 01:34, Frank Hsu (徐建芳) <frank.hsu@xxxxxxxxxxxx> wrote:



Hi, Chunyu,



Thanks for the updated contribution. I add my comments after Boyce’s doc.



BRs,

Frank





From: Yangbo (Boyce, 2012 NT Lab) [mailto:yangbo59@xxxxxxxxxx]
Sent: Monday, April 26, 2021 11:45 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] 答复: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Hi Chunyu,



Thank for the updated contribution. I have some further comments, please find them in the attached.



Regards

Boyce



发件人: 顾祥新 (Xiangxin Gu) [mailto:Xiangxin.Gu@xxxxxxxxxx]
发送时间: 2021年4月25日 17:28
收件人: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Hi Chunyu,



Thank you for the perfect contribution!



I added my comments in the attached file.





BR,



Xiangxin

Unisoc Technologies Co., Ltd.

+86 21 20360600 3324







From: Rubayet Shafin <r.shafin@xxxxxxxxxxx>
Sent: Saturday, April 24, 2021 2:42 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Hi Chunyu,



Thank you so much for this contribution. You have drafted an excellent spec text.



In addition to Stephane’s and Rojan’s comments, please find the attached document for my comments on your draft.



Have a wonderful weekend!



Best

Rubayet



From: Chunyu Hu <chunyuhu07@xxxxxxxxx>
Sent: Friday, April 23, 2021 7:50 PM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Thanks all for your feedback. Please see the updated rev1: 11-21/462r1 on server:



Stephane, Rojan, please see attached document for responses to your comments inline.



Thanks!

Chunyu





On Wed, Apr 21, 2021 at 2:04 AM BARON Stephane <Stephane.BARON@xxxxxxxxxxxx> wrote:

Hi Chunyu,



Thank you for initiating the review on this document.

In addition to Rojan’s comments, please in the attached document my comments on this subject.



Best regards.





Stéphane.





From: Rojan Chitrakar <rojan.chitrakar@xxxxxxxxxxxxxxxx>
Sent: mercredi 21 avril 2021 05:53
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Hi Chunyu,



Thanks for preparing the CR. Please see attached for my comments.



Regards,

Rojan



From: Chunyu Hu <chunyuhu07@xxxxxxxxx>
Sent: Wednesday, April 21, 2021 10:48 AM
To: STDS-802-11-TGBE@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBE] Request feedback for TBD/CR in the Restricted TWT setup subclause



Hi, all:



Will you review and provide your feedback to this draft text that resolves some TBD/CID?





Appreciate your input.

Thanks.

Chunyu
