Re: [STDS-802-11-TGBN] TGbn PHY Motion Request

Hi Alfred,



Please add the followings to the TGbn PHY motion list:



Motion 1: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       11bn supports the following DBW dependent DRU size support to maximize BW and power efficiency

    • No MRU in distributed transmission
    • 20MHz: RU26, RU52, RU106
    • 40MHz: RU26, RU52, RU106, RU242
    • 80MHz: RU52, RU106, RU242, RU484

Passed without any objection



Motion 2: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       11bn supports per 80MHz DRU/RRU switch if PPDU BW >80MHz and no hybrid DRU and RRU mode for up to 80MHz

Passed without any objection



Motion 3: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       In mixed RRU and DRU transmission the RRU LTF follows the exact same rule as if there is no DRU. The DRU LTF sequence depends on the distribution BW

Passed without any objection



Motion 4: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)



  • DRU transmission uses single stream pilots in both LTF and data portion

Passed without any objection

Motion 5: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

  • DRU only uses 4x LTF

Passed without any objection



Motion 6: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)



  • In DRU transmission, global CSD provides CSD start index i for each DRU. If Nss for this DRU is larger than 1, then it will use CSD[mod(i: i+Nss-1, 8)] for each ss

Passed without any objection



Motion 7: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       The following pilot index table from hierarchical uniform pilot structure of distance of 11 will be used for distributed transmission over 20MHz

Pilot indices for DRU transmission over 20MHz

dRU size

KdRxx_i

dRU26, i = 1:9

{-111    15}, {-89    37}, {-100    26}, {-78    48},
{-67    59}, {-56    70}, {-34    92}, {-45    81},
{-23   103}

dRU52, i = 1:4

{-111   -89    15    37}, {-100   -78    26    48},                 {-56   -34    70    92}, {-45   -23    81   103}

dRU106, i = 1:2

{-111   -78    15    48}, {-56   -23    70   103}

Passed without any objection



Motion 8: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       The following pilot index table from hierarchical uniform pilot structure of distance of 11 will be used for distributed transmission over 40MHz

Pilot indices for DRU transmission over 40MHz

dRU size

KdRxx_i

dRU26, i = 1:18

{-224    28}, {-125   127}, {-202    50}, {-103   149},
{-81   171}, {-114   138}, {-213    39}, {-92   160},
{-191    61}, {-169    83}, {-70   182}, {-147   105},         {-48   204}, {-180    72}, {-59   193}, {-158    94},         {-37   215}, {-136   116}

dRU52, i = 1:8

{-224  -125    28   127}, {-202  -103    50   149},         {-213  -114    39   138}, {-191   -92    61   160},
{-169   -70    83   182}, {-147   -48   105   204},         {-158   -59    94   193}, {-136   -37   116   215}

dRU106, i = 1:4

{-224  -103    28   149}, {-213   -92    39   160},        {-169   -48    83   204}, {-158   -37    94   215}

dRU242, i = 1:2

{-224  -213  -103   -92    28    39   149   160},           {-169  -158   -48   -37    83    94   204   215}

Passed without any objection



Motion 9: Move to include the following text to the 11bn SFD: (DCN# 11-24/1510r2)

·       The following pilot index table from hierarchical uniform pilot structure of distance of 11 will be used for distributed transmission over 80MHz

Pilot indices for DRU transmission over 80MHz

dRU size

KdRxx_i

dRU52, i = 1:16

{-447  -359    53   141}, {-403  -315    97   185},    {-227  -139   273   361}, {-183   -95   317   405},   {-425  -117    75   383}, {-381   -73   119   427},     {-337  -249   163   251}, {-293  -205   207   295},  {-194  -106   306   394}, {-150   -62   350   438},     {-370  -282   130   218}, {-326  -238   174   262},   {-260  -172   240   328}, {-216  -128   284   372},     {-392   -84   108   416}, {-436  -348    64   152}

dRU106, i = 1:8

{-403  -315    97   185}, {-227  -139   273   361},       {-381  -117   119   383}, {-293  -205   207   295},
{-150   -62   350   438}, {-326  -238   174   262},       {-260  -172   240   328}, {-348   -84   152   416}

dRU242, i = 1:4

{-403  -315  -227  -139    97   185   273   361},         {-381  -293  -205  -117   119   207   295   383},         {-326  -238  -150   -62   174   262   350   438},          {-348  -260  -172   -84   152   240   328   416}

dRU484, i = 1:2

{-403  -381  -315  -293  -227  -205  -139  -117    97   119   185   207   273   295   361   383},                        {-348  -326  -260  -238  -172  -150   -84   -62   152   174   240   262   328   350   416   438}

Passed without any objection

Regards,

Lin





From: Shengquan Hu <000036fc915e2c29-dmarc-request@xxxxxxxxxxxxxxxxx>
Sent: Tuesday, November 12, 2024 4:30 PM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: [STDS-802-11-TGBN] TGbn PHY Motion Request



WARNING: This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.

Hi Alfred,



Please add the followings to the TGbn PHY motion list:





Motion-1:  Move to include the following text to the 11bn SFD: (DCN# 11-24/1828r1)

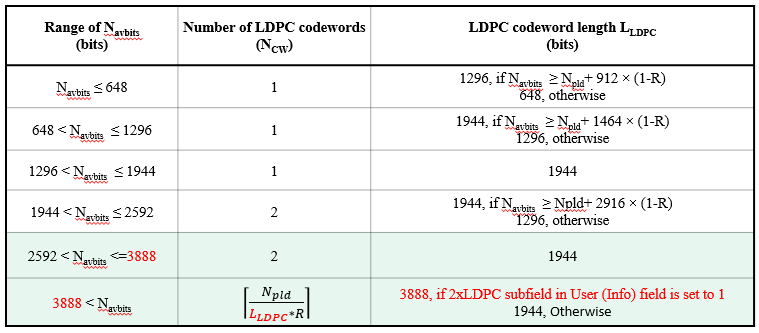

update the LDPC PPDU encoding parameter table for UHR as below:

  • If FEC coding scheme is LDPC and Navbits ≤ 3888, the 2xLDPC subfield shall be set to 0 and the LDPC codeword length selection shall follow the pre-UHR LDPC procedure, specifically using codeword lengths (648, 1296, or 1944) bits based on the table below



Y/N/A: 80/9/27



Motion-2:  Move to include the following text to the 11bn SFD: (DCN# 11-24/0468r2)

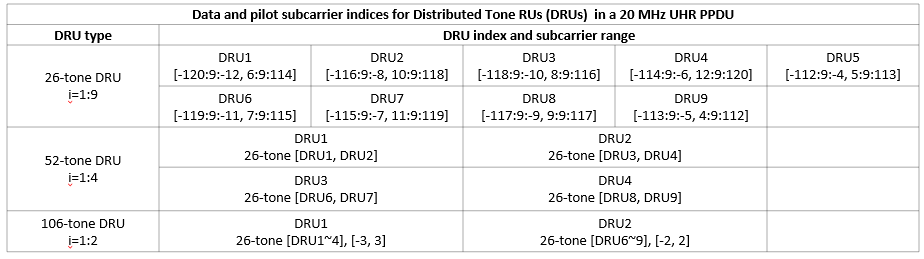

Data and pilot subcarrier indices for DRUs in a 20 MHz UHR PPDU are defined in following table:

Y/N/A: 51/11/23





Motion-3:  Move to include the following text to the 11bn SFD: (DCN# 11-24/0468r2)

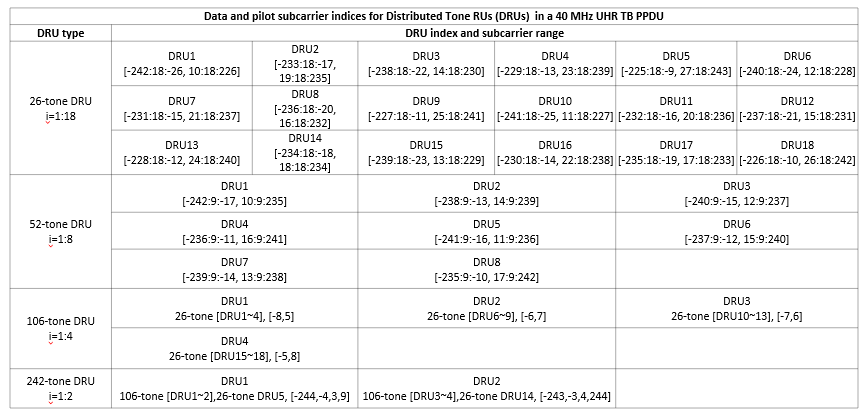

Data and pilot subcarrier indices for DRUs in a 40 MHz UHR PPDU are defined in following table:

Passed without any objection



Motion-4:  Move to include the following text to the 11bn SFD: (DCN# 11-24/0468r2)

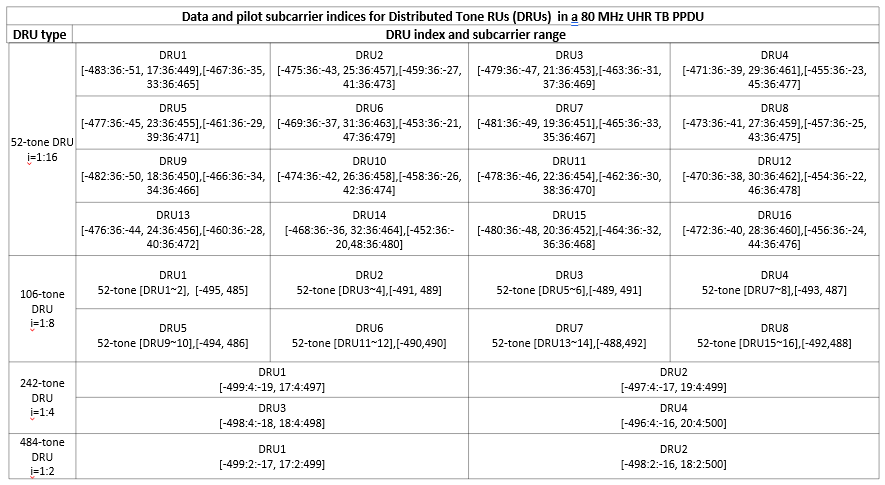

Data and pilot subcarrier indices for DRUs in an 80 MHz UHR PPDU are defined in following table:

Passed without any objection



Motion-5:  Move to include the following text to the 11bn SFD: (DCN# 11-24/1188r2)

  • DRU index based global CSD start index assignment will be used for DRU UHR-STF transmission

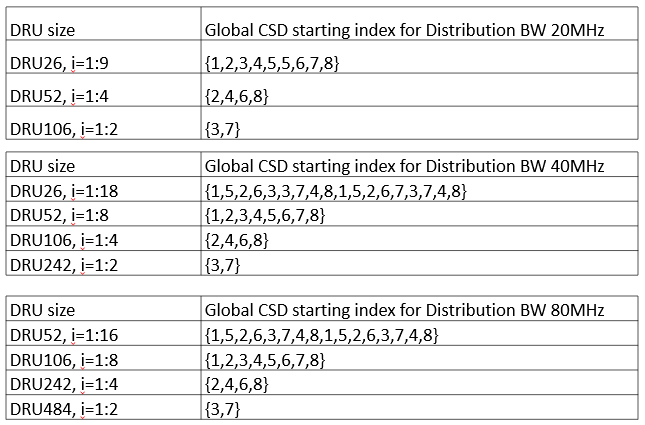

  • Global CSD start index assignment for DRU UHR-STF transmission will be based on the following table

Passed without any objection



Motion-6:  Move to include the following text to the 11bn SFD: (DCN# 11-24/1189r1)

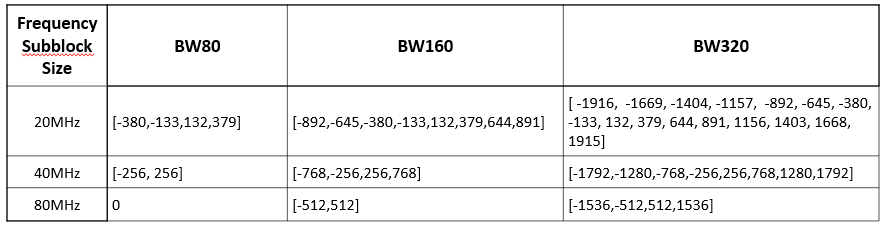

DRUs on frequency subblocks of wide bandwidth PPDU should be defined as DRUs on 20MHz, 40MHz and 80MHz PPDU with the following constant shifts?

Passed without any objection



Motion-7:  Move to include the following text to the 11bn SFD: (DCN# 11-24/1489r1)

use 4-bit bitmap in Common Info field (B56-B59) for DRU indication?

  • 1 bit/80MHz to indicate each 80MHz is used for DRU or RRU

Passed without any objection



Motion-8:  Move to include the following text to the 11bn SFD: (DCN# 11-24/1489r1)

Re-purpose 2 bits of SS Allocation subfield in User Info field for distribution bandwidth indication if DRU

Passed without any objection



Motion-9:  Move to include the following text to the 11bn SFD: (DCN# 11-23/2020r3)

Minimum size of RRU in hybrid mode in 160MHz and 320MHz is 242

Passed without any objection
