Hi Alfred,

Can you please add the following PHY motion to the queue (based on SP from document 11-24/1901r0) ?

Motion 1: Do you agree to include the proposed 40MHz DBW 4xLTF sequence design for DRU in the 11bn SFD

=[-1 1 -1 -1 -1 1 -1 -1 1 1 1 -1 1 1 1 1 1 1 1 -1 -1 1 1 -1 1 -1 -1 1 1 -1 -1 1 -1 1 -1 1 1 -1 1 1 1 1 -1 -1 1 -1 -1 1 1 1 -1 -1 -1 -1 -1 1 1 1 1 -1 1 -1 -1 1 -1 1 -1 1 -1 1 1 1 1 1 1 -1 1 -1 -1 1 -1 -1 -1 -1 1 -1 -1 -1 1 -1 -1 1 -1 -1 -1 -1 -1 1 -1 1 -1 1 -1 1 1 -1 -1 -1 1 1 -1 -1 1 1 -1 -1 1 -1 1 -1 1 -1 1 1 1 1 -1 -1 -1 -1 -1 -1 -1 -1 -1 -1 1 1 1 1 1 1 1 -1 -1 1 -1 -1 1 -1 -1 -1 -1 1 1 -1 -1 1 -1 1 -1 1 -1 -1 1 -1 1 1 1 1 1 1 1 1 -1 -1 1 -1 -1 1 -1 1 1 -1 1 1 1 1 1 -1 1 1 1 -1 1 -1 1 1 -1 -1 -1 -1 1 -1 -1 1 -1 1 1 1 -1 -1 -1 -1 1 -1 -1 1 1 -1 1 1 1 1 1 1 1 1 1 -1 1 1 1 1 -1 -1 1 -1 1 -1 1 -1 0 0 0 0 0 -1 -1 -1 -1 1 -1 1 -1 -1 1 -1 1 1 -1 -1 1 1 -1 1 1 1 -1 1 1 -1 1 1 -1 -1 -1 -1 1 -1 -1 -1 -1 -1 1 1 -1 1 1 1 -1 -1 -1 -1 -1 -1 -1 -1 1 -1 -1 1 -1 1 1 1 -1 1 -1 1 -1 -1 -1 -1 1 -1 1 1 -1 1 1 1 -1 -1 -1 -1 -1 1 1 -1 1 1 1 1 -1 -1 -1 1 1 1 1 -1 -1 1 -1 -1 -1 -1 1 -1 1 -1 -1 1 -1 -1 -1 -1 -1 1 -1 1 -1 1 1 1 -1 -1 1 -1 1 1 -1 -1 -1 1 -1 1 -1 1 -1 -1 -1 1 1 1 -1 -1 -1 -1 1 1 1 -1 1 -1 1 1 1 -1 -1 -1 1 1 1 1 -1 -1 1 1 -1 1 -1 -1 1 1 -1 1 -1 -1 -1 1 1 1 -1 1 1 -1 1 -1 1 -1 -1 1 1 1 1 -1 1 -1 1 1 1 1 -1 -1 -1 -1 -1 1 -1 -1 -1 -1 1 1 1 1 -1 -1 1 1 -1 1 1 1 1 -1 1 -1 1 1 -1 1 1 -1 -1 -1 -1 -1 1 -1 1 1 1 -1 -1 1 -1]

Passed without any objection

Thanks

Best Regards

Chenchen Liu

发件人: Sameer Vermani <000039a3734fa32e-dmarc-request@xxxxxxxxxxxxxxxxx>
发送时间: 2024年11月14日 3:53
收件人: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
主题: [STDS-802-11-TGBN] PHY Motions Request

Hi Alfred,

Can you please add the following six PHY motions to the queue (all based on SPs from document 11-24/1542r5) ?

Thanks,

Sameer

Motion 1:

Move to add the following to the SFD:
- The Coordinated beamforming (COBF) transmission phase in 802.11bn shall be limited to 2 APs

Motion 2:

Move to add the following to the SFD:

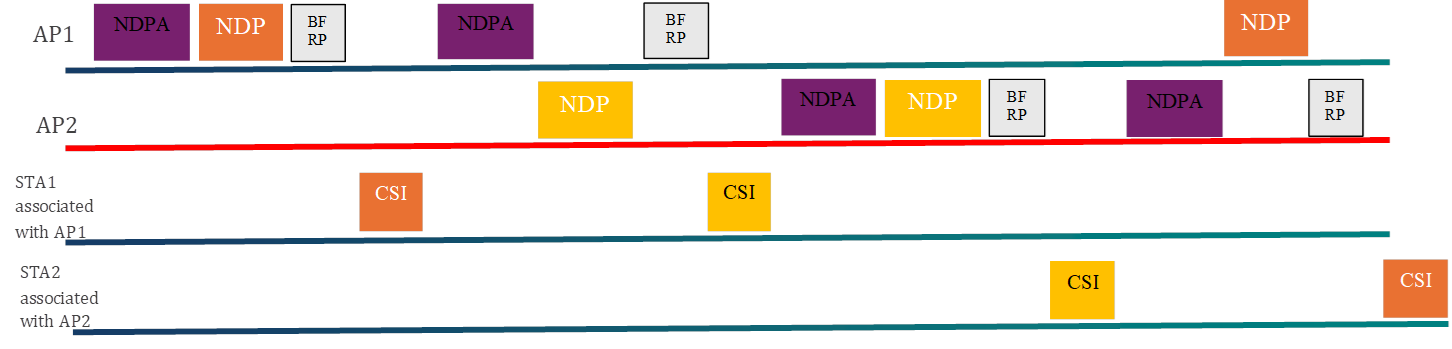

- The sequential NDP based sounding protocol will be as shown below for COBF
  - Sounding happens one BSS at a time
  - NDPA only addresses the in-BSS STAs
  - MAC related additional frames are TBD

Motion 3:

Move to add the following to the SFD:

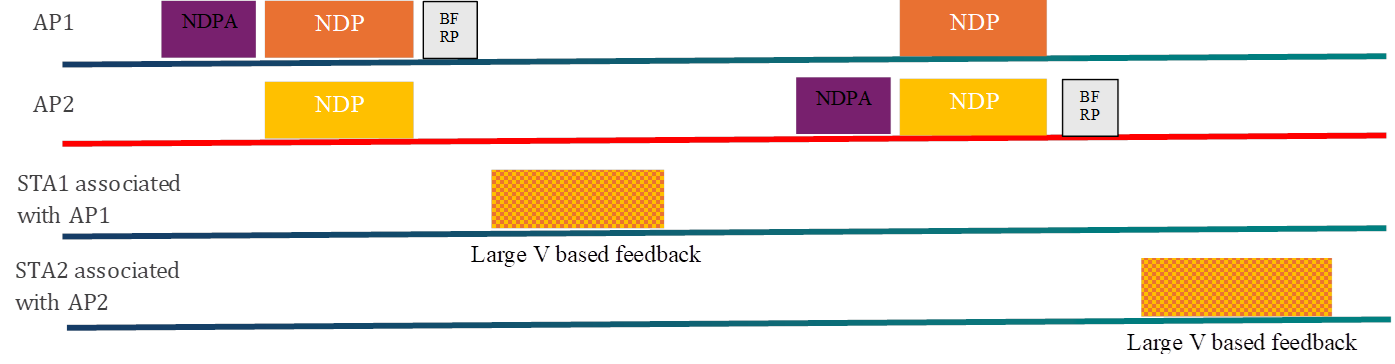

- The joint NDP based sounding protocol will be as shown below for COBF
  - Sounding happens for one BSS’s STAs at a time
  - NDPA only addresses the in-BSS STAs
  - MAC related additional frames are TBD
  - Joint NDP based feedback will be based on large V-based feedback where the eigen-vectors span the antennas across both Aps

Motion 4:

Move to add the following to the SFD:
- For joint NDP based sounding, one AP will frequency synchronize to the other for both of its NDP transmissions
  - For both the NDPs, the AP doing the correction brings its frequency within a certain TBD range of the reference AP

Motion 5:

Move to add the following to the SFD:
- For joint NDP based sounding, one AP will frequency synchronize to the other for both of its NDP transmissions
  - For both the NDPs, the AP doing the correction brings its frequency within a certain TBD range of the reference AP

Motion 6:

Move to add the following to the SFD:
- In the UHR sounding process for COBF, for the joint sounding case as well as for the sequential sounding case, the NDP shall always carry the BSS color of the AP which transmitted the NDPA
