[STDS-802-11-TGBN] 答复: [STDS-802-11-TGBN] TGbn Motion Request

Hi Jay,



Regarding the following passed motion, could you confirm RSID refers to Ranging Session ID?



Regards

Ross Jian Yu 于健

Huawei Technologies



发件人: Jay Yang <yang.zhijie@xxxxxxxxxx>
发送时间: 2025年1月15日 11:53
收件人: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
主题: Re: [STDS-802-11-TGBN] TGbn Motion Request



Hi Alfred,



Could help add the following motion to the agenda?



Move to include the following to the 11bn SFD?

As a part of M-AP coordination agreement procedure, an AP may assign an AP ID to another AP with the following constraints:

  • The AP ID is used for the AP to identify another AP as a coordinated AP, when necessary.
  • The AP ID field has the same size and the field value has a range as defined in AID field (see 9.4.1.8)
  • The AP shall ensure that the AP ID value is not assigned by the AP or by its affiliated MLD to any other STA (e.g., STA is an associated non-AP STA, an unassociated non-AP STA that has been allocated a RSID , or any other coordinated AP), or a non-AP MLD that is associated with the AP MLD
  • It's TBD whether the AP ID value is greater than 2^n where n is the maximum of the value carried in the MBSSID Indicator (n) field of the Multiple BSSID element for any AP affiliated with the AP MLD that belongs to a multiple BSSID set



No objection



Supporting list: 11-23/1837r2,11-24/1389r0, 11-24/1217r2,  11-24/0842r0,11-24/0843r0, 11-24/1016r2,11-24/1017r0, 11-23/1895r2, 11-24/0423r0,11-24/1225r0, 24/1220r0,25/0007r2







Thanks



Best Regards



Jay Yang (杨志杰)





Original

Date: 2025年01月15日 10:25

Subject: [STDS-802-11-TGBN] TGbn Motion Request

Hi Alfred,



Please add the following motion to the agenda:



Move to include the following to the 11bn SFD?

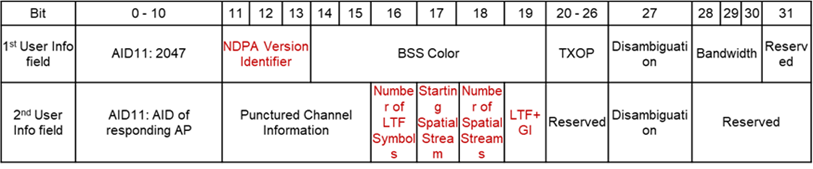

·         When the initiating AP requests the responding AP to join the CoBF sounding, the red subfields in the first and second User Info fields of the NDPA shall be set as follows.

·         NDPA Version Identifier is set to 0 for CoBF sounding in UHR

·         Number of LTF symbols is set to 0 and 1 for 4 and 8 symbols, respectively

·         Starting Spatial Stream is set to 0 and 1 for the 1st and 5th streams, respectively

·         Number of spatial streams is set to 0 and 1 for the 4 and 8 streams, respectively

·         LTF+GI is set to 0 and 1 for 2x LTF+0.8us GI and 2x LTF+1.6us GI, respectively

  • B20-26, which are shown as Reserved in the second User Info field, can be used in the future









                 Supporting doc: 11-24/1822r4, 11-24/1835r3, 11-24/1865r3





                 SP result: Passed with no objections.



Thanks,

Sameer
