Hi Yajun,
As I mentioned, When the scheduled DPS non-AP STA announces EOST with value 1, the AP may still need transmit its frames to the scheduled DPS non-AP STA. What you described is not true.
Best Regards,
Liwen
From: 程亚军 <chengyajun@xxxxxxxxxx>
Sent: Thursday, February 12, 2026 11:04 PM
To: Liwen Chu <liwen.chu@xxxxxxx>; STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: 回复: [External Mail]Re: [STDS-802-11-TGBN] [EXT] Discussion on CID 4443
Caution: This is an external email. Please take care when clicking links or opening attachments. When in doubt, report the message using the 'Report this email' button
Hi, Liwen
Thank you for your reply.
CID4443 mentioned scheduled STA and responding STA. I agree that the responding STA (or scheduling AP) should not transition to LC Mode, even if the peer STA (the scheduled STA or requesting STA) terminates the TWT SP early.
However, for a scheduled STA that has enabled DPS mode and indicates that there are no pending traffic by transmitting a QoS frame with EOTSP set to 1, the STA shall transition to LC Mode.
Best Regards,
Yajun
发件人: Liwen Chu <liwen.chu@xxxxxxx>
发送时间: 2026年2月13日 12:48
收件人: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
主题: [External Mail]Re: [STDS-802-11-TGBN] [EXT] Discussion on CID 4443
[外部邮件] 此邮件来源于小米公司外部，请谨慎处理。若对邮件安全性存疑，请将邮件转发给misec@xxxxxxxxxx进行反馈
Hi Yajun,
Thanks for the discussion.
EOTSP equal to 1 is used at the requesting STA or TWT scheduled STA side to indicate no pending frames. It doesn’t mean that the peer TWT STA, e.g. the TWT scheduling STA (AP of the broadcast TWT schedule), has no pending frames.
Best Regards,
Liwen
From: 程亚军 <chengyajun@xxxxxxxxxx>
Sent: Thursday, February 12, 2026 8:28 PM
To: Liwen Chu <liwen.chu@xxxxxxx>; STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: [EXT] Discussion on CID 4443
Caution: This is an external email. Please take care when clicking links or opening attachments. When in doubt, report the message using the 'Report this email' button
Hi, Liwen

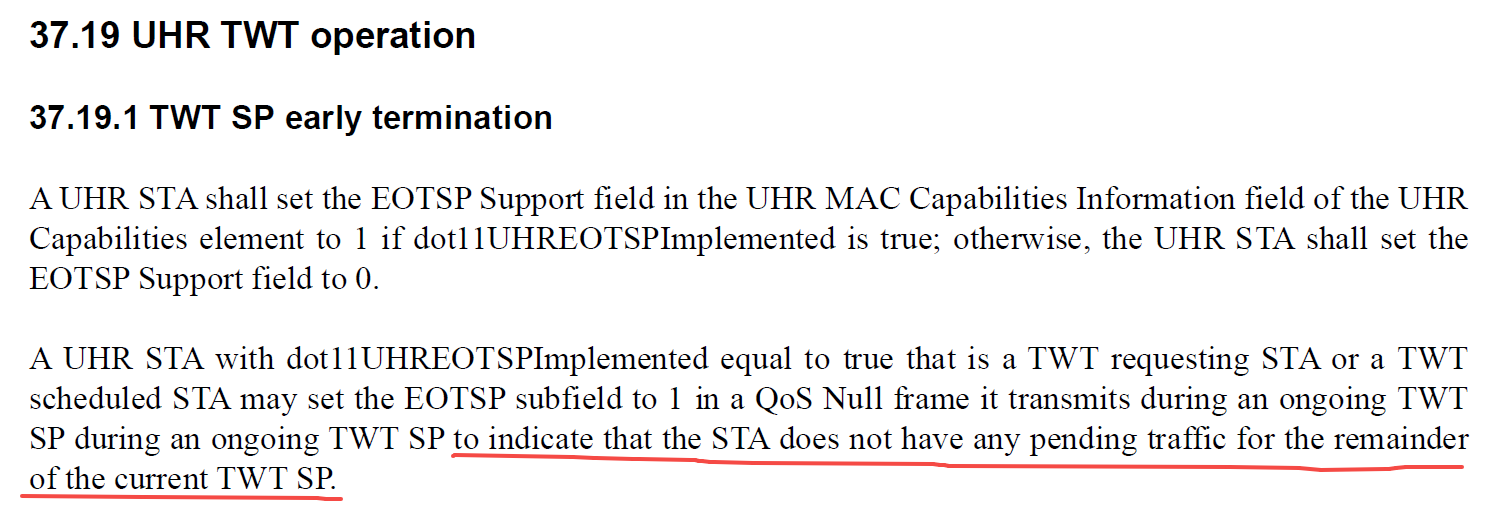

As I mentioned during the joint meeting, a non-AP STA utilizes the TWT early termination procedure to indicate that it had no pending traffic to transmit during the ongoing TWT SP, rather than indicating that no frames were detected.
I might not agree with your decision to reject this comment. Because this condition was not included in the EMLSR rule of switching back to listening mode.
A DPS non-AP STA (acting as a scheduled STA) shall transition to LC Mode immediately after transmitting a QoS Null frame with the EOTSP subfield set to 1 during an ongoing TWT SP. This improves power-saving performance for the non-AP STA. On the contrary, if a DPS non-AP STA remains in HC mode after terminating a TWT SP early, maintaining the HC mode until the end of the TWT SP results in unnecessary power consumption.
The resolution of this CID should be revised to include an additional condition for a DPS non-AP STA to transition back to LC Mode.
Specifically, in addition to following the EMLSR rule of switching back to listening mode, a DPS non-AP STA shall transition to LC Mode immediately upon transmitting a QoS Null frame with the EOTSP subfield set to 1 during an ongoing TWT SP.
BRs，
Yajun
发件人: Liwen Chu <liwen.chu@xxxxxxx>
发送时间: 2026年1月29日 5:40
收件人: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
主题: [External Mail]Re: [STDS-802-11-TGBN] [EXT] Green Tags for 25/1895
[外部邮件] 此邮件来源于小米公司外部，请谨慎处理。若对邮件安全性存疑，请将邮件转发给misec@xxxxxxxxxx进行反馈
Hi Alfred and all,
I uploaded 11-25/1895R1 updated per the feedbacks.
Best Regards,
Liwen
From: Liwen Chu <liwen.chu@xxxxxxx>
Sent: Wednesday, January 28, 2026 12:00 PM
To: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGBN] [EXT] Green Tags for 25/1895
Caution: This is an external email. Please take care when clicking links or opening attachments. When in doubt, report the message using the 'Report this email' button
Hi Alfred,
Thanks.
I had R1 based on the feedbacks I received.
- Changing the added text related to CID 7988 and 5411 per the feedback.
- Modifying the reject reasons of several CIDs.
I will incorporate your suggestions to R1 and upload it today.
Best Regards,
Liwen
From: Alfred Asterjadhi <asterjadhi@xxxxxxxxx>
Sent: Wednesday, January 28, 2026 11:51 AM
To: Liwen Chu <liwen.chu@xxxxxxx>
Cc: STDS-802-11-TGBN@xxxxxxxxxxxxxxxxx
Subject: [EXT] Green Tags for 25/1895
Caution: This is an external email. Please take care when clicking links or opening attachments. When in doubt, report the message using the 'Report this email' button
Hi Liwen, all,
Please find some green tags for the CIDs in the attached file (also some suggestions/comments).
Regards,
Alfred
--
Alfred Asterjadhi, PhD
IEEE802.11 TGbe/TGbn Chair,
Qualcomm Technologies Inc.
Cell #: +1 858 263 9445
Office #: +1 858 658 5302
