Re: [STDS-802-11-TGM] REVme CID 1819 (transmission window)



--- This message came from the IEEE 802.11 Task Group M Technical Reflector ---

In 802.11-2020 we have in 10.25.2:



When a block ack agreement is established between two HT STAs, two DMG STAs, or two S1G STAs, the

originator may change the size of its transmission window if the value in the Buffer Size field of the ADDBA

Response frame is larger than the value in the ADDBA Request frame. If the value in the Buffer Size field of

the ADDBA Response frame is smaller than the value in the ADDBA Request frame, the originator shall

change the size of its transmission window (WinSizeO) so that it is not greater than the value in the Buffer Size

field of the ADDBA Response frame and is not greater than the value 64.



So there the limit was basically 64, though the first sentence was

somewhat ambiguous ("may change the size" to what exactly? -- this was

fixed by 11ax, as shown below).



In 802.11me/D1.0 we have in 10.25.2:



When a block ack agreement is established between two HT STAs, two DMG STAs, or two S1G STAs, the

originator may change the size of its transmission window if the value in the Buffer Size field of the ADDBA

Response frame is larger than the value in the ADDBA Request frame, subject to the following

conditions:(11ax)

— The transmission window is not greater than the value in the Buffer Size field of the ADDBA

Response frame.(11ax)

— The transmission window is not greater than 64 if the sender or receiver of the ADDBA Response

frame is a non-HE STA.(11ax)

— The transmission window is not greater than 256 if the sender and receiver of the ADDBA Response

frame are HE STAs.(11ax)



If the value in the Buffer Size field of the ADDBA Response frame is smaller than the value in the ADDBA

Request frame, the originator shall change the size of its transmission window (WinSizeO) so that it meets the

following conditions:(11ax)

— Is not greater than the value in the Buffer Size field of the ADDBA Response frame.(11ax)

— Is not greater than 64 if the sender or receiver of the ADDBA Response frame is a non-HE STA or if

the STAs that establish the block ack agreement are HT STAs or DMG STAs that are not EDMG

STAs.(11ax)(11ay)

— Is not greater than 256 if the sender and receiver of the ADDBA Response frame are HE

STAs.(11ax)

— Is not greater than 1024 if the STAs that establish the block ack agreement are EDMG STAs.(11ay)



so I think I was probably confused by the "(11ax)"s and didn't realise

some of the wording was for pre-11ax STAs.  I note, however, that since

an HE STA is an HT STA,



— Is not greater than 64 if the sender or receiver of the ADDBA Response frame is a non-HE STA or if

the STAs that establish the block ack agreement are HT STAs or DMG STAs that are not EDMG

STAs.(11ax)(11ay)

— Is not greater than 256 if the sender and receiver of the ADDBA Response frame are HE

STAs.(11ax)



is self-contradictory, and I also note that you can increase to more

than 256 for EDMG STAs if the rsp size is less than the req (but more

than 256), but not if the rsp size is more than the req (and more than

256).



Having said that, I also can't find any constraints on the Buffer Size

field, except for HE STAs in the ADDBA response in 26.4.3:



The recipient shall not include in the Buffer Size field of an ADDBA Response frame a value that would

cause the BlockAck Bitmap length of its block ack responses to exceed the BlockAck Bitmap length that is

derived by the Buffer Size field of the ADDBA Request frame sent by the originator. When the Buffer Size

field in the ADDBA Request frame is 0, the Buffer Size field of an ADDBA Response frame is in the

range 1 to 64.



There are also various absolute references to 64, e.g. in 10.25.6.4

Scoreboard context control during partial-state operation:



In an HT-immediate block ack agreement that uses partial-state operation, […]

WinSizeR, […] is set to the smaller of 64 and the value of the Buffer

Size field of the associated ADDBA Response frame that established the block ack agreement.



(and similarly in 10.25.8.2 Scoreboard context control during GCR block ack

and 10.25.8.3 Scoreboard context control during GLK-GCR block ack,

but maybe these are OK since they need to stay backward-compatible

with pre-HE STAs)



and it looks to me as if this is just an oversight, because

10.25.6.3 Scoreboard context control during full-state operation

says:



For each HT-immediate block ack agreement that uses full-state operation, […]

WinSizeR, […] is set to the smaller of BitmapLength(11ax) and the value of the

Buffer Size field of the associated ADDBA Response frame that established the block ack agreement.



So I think that at this stage my proposal would for now be to

just make the following changes:



In 10.25.2 Setup and modification of the block ack parameters:



When a block ack agreement is established between two HT STAs, two DMG STAs, or two S1G STAs, the

originator may change the size of its transmission window if the value in the Buffer Size field of the ADDBA

Response frame is larger than the value in the ADDBA Request frame, subject to the following

conditions:(11ax)

— The transmission window is not greater than the value in the Buffer Size field of the ADDBA

Response frame.(11ax)

— The transmission window is not greater than 64 if the sender or receiver of the ADDBA Response

frame is a non-HE STA.(11ax)

— The transmission window is not greater than 256 if the sender and receiver of the ADDBA Response

frame are HE STAs.(11ax)



If the value in the Buffer Size field of the ADDBA Response frame is smaller than the value in the ADDBA

Request frame, the originator shall change the size of its transmission window (WinSizeO) so that it meets the

following conditions:(11ax)

— Is not greater than the value in the Buffer Size field of the ADDBA Response frame.(11ax)

— Is not greater than 64 if the sender or receiver of the ADDBA Response frame is a non-HE STA or if

the STAs that establish the block ack agreement are HT STAs or DMG STAs that are not EDMG

STAs.(11ax)(11ay)

— Is not greater than 256 if the sender and receiver of the ADDBA Response frame are HE

STAs.(11ax)

— Is not greater than 1024 if the STAs that establish the block ack agreement are EDMG STAs.(11ay)



In 10.25.6.4 Scoreboard context control during partial-state operation:



In an HT-immediate block ack agreement that uses partial-state operation, […]

WinSizeR, […] is set to the smaller of 64BitmapLength and the value of the Buffer

Size field of the associated ADDBA Response frame that established the block ack agreement.



and postpone consideration of the following to D2.0:



- The hard-wired 64 limits for GCR (which might be OK)

- Constraining the Buffer Size field in the ADDBA req (to BitmapLength)

- Constraining the Buffer Size field in the pre-HE ADDBA rsp (to 64),

or presumably for EDMG to 1024

- Once this is done, simplifying the rules above to just "you can set

your tx window to any value no bigger than in the ADDBA rsp"

- Whether the transmission window can be increased up to 1024 by

an EDMG STA if the buffer size in the rsp is greater than in the req

(presumably yes)

- The behaviour for CDMG and CMMG STAs



Thoughts?



Thanks,



Mark



--

Mark RISON, Standards Architect, WLAN   English/Esperanto/Français

Samsung Cambridge Solution Centre       Tel: +44 1223  434600

Innovation Park, Cambridge CB4 0DS      Fax: +44 1223  434601

ROYAUME UNI                             WWW: http://www.samsung.com/uk



From: Mark Hamilton <mark.hamilton2152@xxxxxxxxx>
Sent: Tuesday, 5 July 2022 23:15
To: STDS-802-11-TGM@xxxxxxxxxxxxxxxxx
Subject: Re: [STDS-802-11-TGM] REVme CID 1819 (transmission window)



--- This message came from the IEEE 802.11 Task Group M Technical Reflector ---

Abhi (and for others – note that Abhi’s email may have not been posted to the reflector, so please note it below),



First, note that the cited text is talking about the BA originator, and when/how the originating STA can change its transmission buffer size, based on the response it got, and the types of STAs involved.  I don’t think this directly says anything about how the responder should set the Buffer Size.



Further, I think the question is whether the negotiated buffer size (or more correctly, the Buffer Size field in the ADDBA Response frame) would have already taken these other limitations (the highlighted bullets, talking about the STA types and their limitations) into account, so those bullets are actually redundant.  I think there is agreement that the STAs cannot exceed the assumed limits of the peer, due to the peer’s type.  But, isn’t that already “built-in” to the negotiation and the Buffer Size finally carried in the ADDBA Response?  I think this is a different question than what you answered, below.



My personal response to the question that I think the comment is asking is that I can’t find anywhere that says the Buffer Size in the ADDBA Response is actually limited in this way.  And, hence the bullets are still needed here, to prevent the dynamic choice by the BA originator to increase its transmission buffer beyond the capabilities of the responder (or itself, interestingly – that also seems an odd limitation in the spec, but I guess it doesn’t hurt anything).  Do you agree with _that_ assessment, in my response?



Mark



From: Abhishek Patil <appatil@xxxxxxxxxxxxxxxx>
Sent: Tuesday, July 5, 2022 12:46 PM
To: mark.hamilton2152@xxxxxxxxx
Cc: STDS-802-11-TGM@xxxxxxxxxxxxxxxxx
Subject: RE: REVme CID 1819 (transmission window)



Hi Mark, All,



Sorry for my late response.



I am not convinced that we should delete the cited bullets. They providing guidance on how an HE STA that is a recipient of an ADDBA Request frame responds (based on the type of the originator that transmitted the request frame). In other words, an HE STA can't specify a value that a non-HE STA can't support.



Hope this helps!



Regards,

Abhi



From: mark.hamilton2152@xxxxxxxxx <mark.hamilton2152@xxxxxxxxx>
Sent: Friday, June 24, 2022 12:04 PM
To: Abhishek Patil <appatil@xxxxxxxxxxxxxxxx>
Cc: STDS-802-11-TGM@xxxxxxxxxxxxxxxxx
Subject: REVme CID 1819 (transmission window)



WARNING: This email originated from outside of Qualcomm. Please be wary of any links or attachments, and do not enable macros.

Abhi/all,

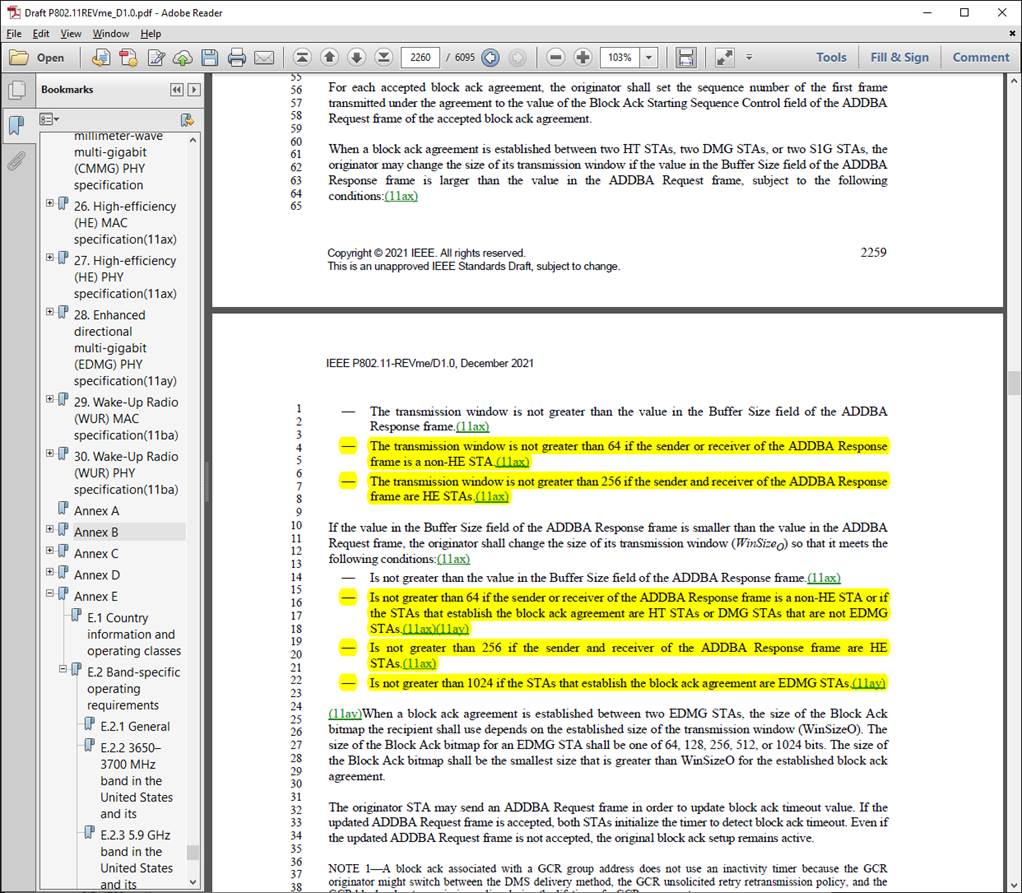

REVme looked at CID 1819 (copied below) today, as it does not appear to be getting covered in 11-22/0082 (yet) and it looked like it might be easy.  However…



The claim, effectively, is that the technical points made in the bullets that are highlighted in the text below are already requirements for the Buffer Size field in the ADDBA Response that set up the block ack agreement.  On suggestion, I looked at the requirements in subclause 26.4.3, but I don’t see any such requirement/restriction on the Buffer Size.  In fact, I’m finding other places, for example P2273L63 (D1.0) that have phrases like, “…WinSizeB is set to the smaller of 1024 and the value of the MPDU Buffer Size field of the ADDBA Response frame that established the block ack agreement.” (or similar with 64).



So, at this point, I’m not convinced that these bullets are “not necessary”.  Do you (or anyone on the reflector) have a reference for where there is a requirement that the Buffer Size in the ADDBA Response frame is already restricted to 64, 256 or 1024 (in the appropriate situations), as implied in the comment?



Thanks.  Mark





CID

Clause

Page

Line

Comment

Proposed Change

1819

10.25.2

2260

1

"-- The transmission window is not greater than the value in the Buffer Size field of the ADDBA
Response frame.(11ax)
-- The transmission window is not greater than 64 if the sender or receiver of the ADDBA Response
frame is a non-HE STA.(11ax)
-- The transmission window is not greater than 256 if the sender and receiver of the ADDBA Response
frame are HE STAs.(11ax)" -- the last two conditions are not necessary, given conformant implementations.  The limit is the value in the ADDBA Response, full stop

Delete the last 2 bullets, and similarly delete the last 3 bullets in the next list (lines 15-22)
