Re: [802.3_4PPOE] Comment #95 and #346 homework

To: STDS-802-3-4PPOE@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_4PPOE] Comment #95 and #346 homework
From: Heath Stewart <00000855853231d4-dmarc-request@xxxxxxxx>
Date: Tue, 14 Mar 2017 09:22:32 -0700
Delivered-to: mhonarc@xxxxxxxxxxxxxxxx
In-reply-to: <782095a452a64ad6827246ca9c599730@XCH-RTP-013.cisco.com>
List-help: <https://listserv.ieee.org/cgi-bin/wa?LIST=STDS-802-3-4PPOE>, <mailto:LISTSERV@LISTSERV.IEEE.ORG?body=INFO%20STDS-802-3-4PPOE>
List-owner: <mailto:STDS-802-3-4PPOE-request@LISTSERV.IEEE.ORG>
List-subscribe: <mailto:STDS-802-3-4PPOE-subscribe-request@LISTSERV.IEEE.ORG>
List-unsubscribe: <mailto:STDS-802-3-4PPOE-unsubscribe-request@LISTSERV.IEEE.ORG>
References: <782095a452a64ad6827246ca9c599730@XCH-RTP-013.cisco.com>
Reply-to: Heath Stewart <hstewart@xxxxxxxxxx>

Looks like a clever fix.

-Heath

On Mon, Mar 13, 2017 at 9:30 PM, Chris Bullock (bullock) <bullock@xxxxxxxxx> wrote:

All,

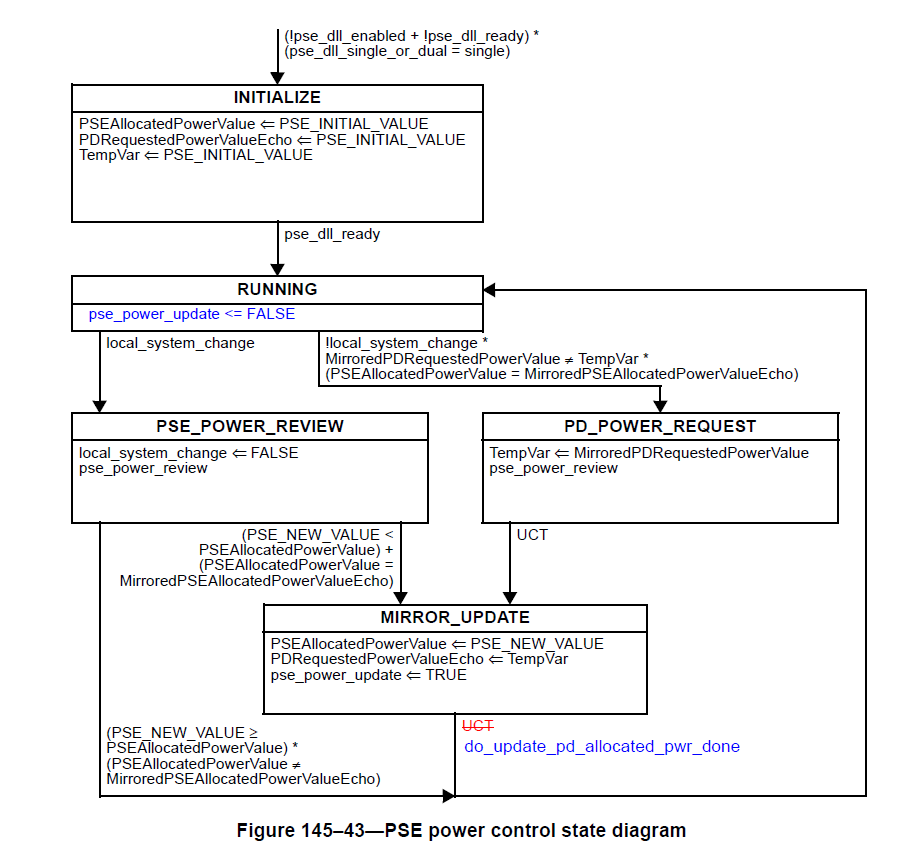

It turns out that we did not need to add a “wait state” to the DLL state-machine since we already had a UCT exit condition from MIRROR_UPDATE that we could adjust. Please review the changes shown below to see if you agree that these changes satisfy the issue from comment #95 and #346.

Thanks,

Chris

Heath Stewart
Design Center Manager, Mixed Signal

Office   (805) 560-7658
Mobile (805) 895-0499
Websites   analog.com, linear.com

Linear Technology is now part of Analog Devices.  Learn more.
