Re: [802.3_4PPOE] Comment #95 and #346 homework

Agreed - adding a "done" exit condition is better than adding a state just to wait until done

George A. Zimmerman, Ph.D.
CME Consulting, Inc.
Experts in PHYsical Layer Communications
310-920-3860


On Mar 14, 2017, at 9:23 AM, Heath Stewart <00000855853231d4-dmarc-request@xxxxxxxx> wrote:

Looks like a clever fix.

-Heath

On Mon, Mar 13, 2017 at 9:30 PM, Chris Bullock (bullock) <bullock@xxxxxxxxx> wrote:

All,

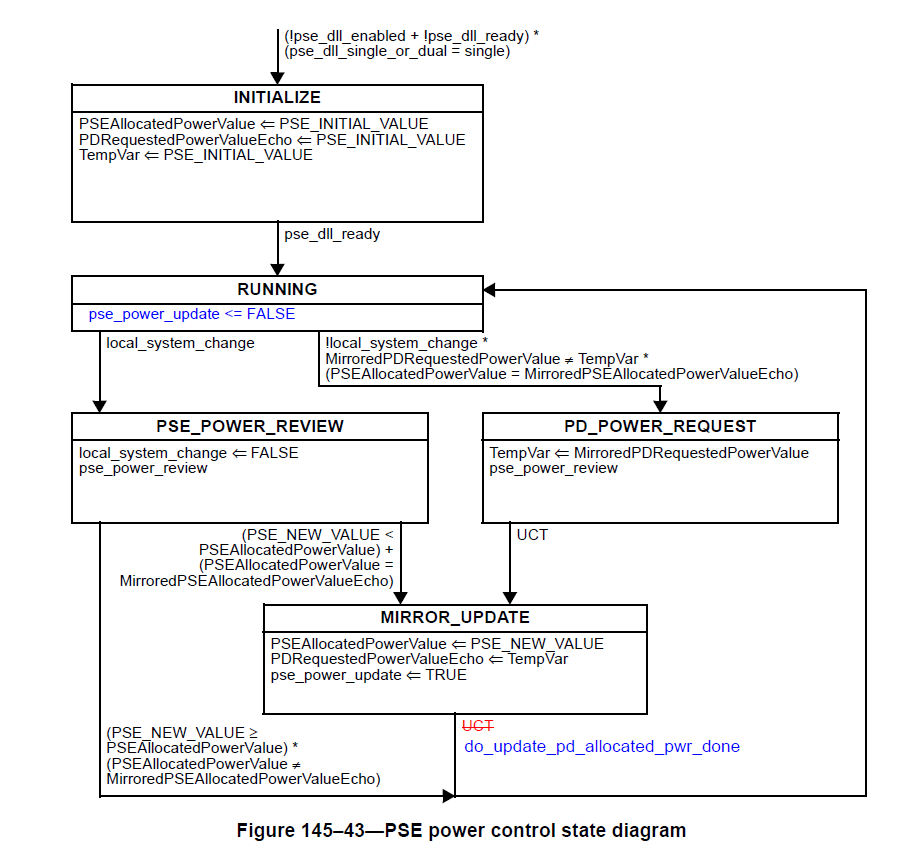

It turns out that we did not need to add a “wait state” to the DLL state-machine since we already had a UCT exit condition from MIRROR_UPDATE that we could adjust.  Please review the changes shown below to see if you agree that these changes satisfy the issue from comment #95 and #346.



Thanks,

Chris






--
Heath Stewart
Design Center Manager, Mixed Signal

Office   (805) 560-7658
Mobile  (805) 895-0499
Websites      analog.com, linear.com

Linear Technology is now part of Analog Devices.  Learn more.

<ADI-Logo.png>

PNG image
