Hi all,
Please review the following comment and proposed remedy.
Regards
Yair
-------------------
Comment (Figure 145-31, page 207 line 22)
Per the latest changes we did to include equipment connector in the PSE PI and in the PD PI for unbalance tests, Figure 145-31 and NOTE 1 in line 33 need some adjustments.
Proposed remedy:
-

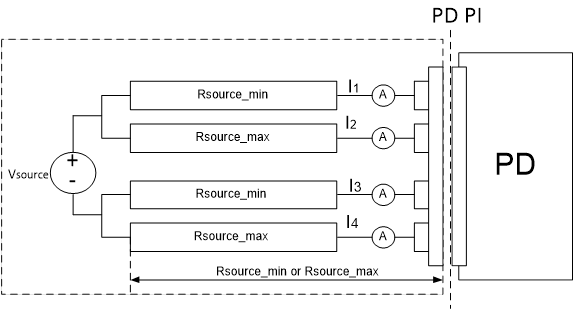

Replace figure 145-31 with the following attached.
-
Change NOTE 1 from:
-
Change NOTE 1 from:
"NOTE 1—Rsource includes the connector resistance at the PD PI, for which the maximum recommended value is 20 mΩ per contact."
To:
"NOTE 1—Rsource_min and Rsource_max include all the test verification model components up to the PD PI"
