We could take all of the assignments that are currently in the ENTRY_PRI and ENTRY_SEC states, and move them to the SISM_START state.
Thanks,
Chris
From: Heath Stewart [mailto:00000855853231d4-dmarc-request@xxxxxxxx]
Sent: Monday, October 09, 2017 11:23 AM
To: STDS-802-3-4PPOE@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_4PPOE] Detection cleared by SISM state diagrams
Change to
if (sism & (CC_DET_SEQ != 2)) then
-Heath
On Mon, Oct 9, 2017 at 2:59 AM, Lennart Yseboodt <lennartyseboodt@xxxxxxxxx> wrote:
Hi,
As of this cycle we have included the SISM state diagrams in our simulation.

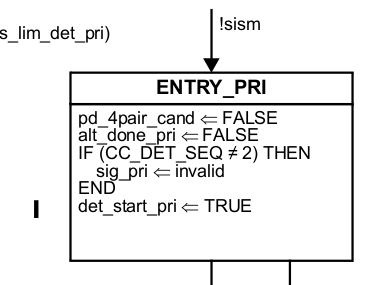

When a single-signature is connected, ENTRY_PRI (and SEC) are executed continuously because "!sism" is TRUE.
This has the effect to force sig_pri (and sig_sec) to 'invalid' continuously, thereby breaking the main state diagram.
I don't know why that statement is there.
Can we remove the IF statement and sig_pri <= invalid ?
Kind regards,
Lennart
--
