Frank,
10G-EPON uses exactly the same MAC as is used in 10G point-to-point. This MAC runs at exactly 10Gb/s, no matter what the actual data throughput. The PHY adds an overhead due to FEC, so the effective throughput
is lower. The data is throttled above MAC to make sure it does not overrun PHY capacity. But the MAC spits bits (idles if there is no data) out at exactly 10Gb/s. In other words, the data path in 10G-EPON runs at 10Gb/s.
Since the PAR scope is the upper bound and what the project is allowed to cover (as David clarified on the call), the existing scope limits us to only 25G and 100G MACs and nothing else.
If we don’t add 50G MAC, then we will have the MAC and the entire data path running at either 25Gb/s or 100Gb/s, no matter how many wavelengths are activated. This is what we try to avoid. We need to allow another
generation between 25G and 100G.
Glen
From: frank effenberger [mailto:frank.effenberger@xxxxxxxxxx]
Sent: Friday, October 02, 2015 10:27 AM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] FW: 10/01/15 NG-EPON Consensus building meeting notes
It bounced for some reason…
From: frank effenberger
Sent: Friday, October 02, 2015 1:18 PM
To: 'Curtis Knittle';
STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: RE: 10/01/15 NG-EPON Consensus building meeting notes
Sorry we missed the call.
I would note that explicitly adding 50G at this time invites “no” votes right now, as there are no other 50G MAC projects.
The existing idea was that the 100G PHY would be made in such a way as to allow reduced rate (i.e., fewer channel) operation. Why does this not suffice?
Also, such degradation would not require seeking special permission from the parent group. As a case in point, 10GEPON actually is a 8.7GEPON. We chose to do FEC sub-rating.
So the actual MAC rate is lower than normal, using the forcing of larger inter-packet gaps. Again, why do we think the reduce rate 100G would be any different?
Thanks,
Frank E.
From: Curtis Knittle [mailto:C.Knittle@xxxxxxxxxxxxx]
Sent: Friday, October 02, 2015 12:20 PM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] 10/01/15 NG-EPON Consensus building meeting notes
Folks,
Please let me know if I need to add to or revise the notes below. Note, Marek’s contribution for the meeting is attached.
Curtis
10/01/2015
IEEE 802.3 NG-EPON Study Group Work Items and Socialization
·
Review of Guidelines for IEEE-SA meetings.
o
https://development.standards.ieee.org/myproject/Public/mytools/mob/preparslides.pdf
o
Has anyone not seen these Guidelines?
Everyone has seen the guidelines
·
November meeting
o
Study Group meeting times (tentative but likely):
§
Tuesday, 11/10, 1 pm – 5:30 pm
§
Wednesday, 11/11, 9 am – 5:30 pm
§
Thursday, 11/12, 9:00 am – 12:00 pm
·

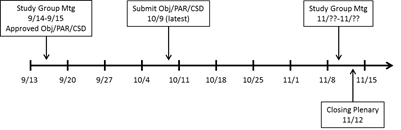

CSD/PAR/Objectives timeline
·
Deliverables for Plenary
o
Comments due from 802 by 6:30 pm 11/10. Comments resolved by 6:30 pm 11/11
·
Critical/Baseline decisions (reference Marek’s presentation attached to email)
o
Pros and cons of channel bonding at different sublayers – below MII, above MII, above MAC
o
Terminology
o
Fiber data (see slide 8)
o
Channel model (see slide 8)
o
See Marek’s presentation for additional key baseline decisions
·
Leads for areas
o
Group was asked to consider high level areas for which a lead would be identified to drive the contributions and decisions for that area. Examples are architecture, features, baseline, etc.
o
This would be different from creating ad hoc committees. While less formal than ad hocs, there would be improved organization with leads identified
o
Task force members can contribute wherever they want – there are no restrictions.
·
Miscellaneous
o
Scope of PAR: might need to add something to the scope to allow for rates between 25G and 100G, or something about degraded rates. Exceeding the scope by doing 50G, for example, when we’ve only mentioned
25G and 100G, could bring some “no” votes because it doesn’t match the scope.
§
Two augmentations to the scope: intermediate MAC rates, “symmetric and/or asymmetric operation” (like in .3av)
o
Risk: if we don’t change the scope, then we risk not getting approval in 2 years when we do sponsor ballot. If we do change the PAR, people might think it’s too big of a change and vote no. The commenting
process is used to make changes to the PAR all the time. We need to make sure we have a good story regarding these changes.
o
Group initially considered scope as a minimum, which allowed operation at 50 Gbps, but it turns out this is not the case. The scope places
upper bounds on the project.
o
Proposed scope change: The scope of this project is to amend IEEE Std 802.3 to add physical layer specifications and management parameters for
symmetric and/or asymmetric operation at 25 Gb/s, 50 Gb/s, and 100 Gb/s MAC data rates on point-to-multipoint passive optical networks.
|
Name |
Employer/Affiliation |
|
Alan Brown |
CommScope |
|
Bill Powell |
ALU |
|
Bruce Chow
|
Corning
|
|
Barry Colella |
Source Photonics |
|
Curtis Knittle |
CableLabs |
|
David Law |
HP |
|
Derrick Cassidy |
BT |
|
Doug Jones |
Comcast |
|
Duane Remein |
Huawei |
|
Ed Harstead |
ALU |
|
Fernando Villarruel |
Cisco |
|
Francois Menard |
Aeponyx |
|
Glen Kramer |
Broadcom |
|
Hesham ElBakoury |
Huawei |
|
Jeff Finkelstein |
Cox |
|
Jorge Salinger |
Comcast |
|
Kevin Bourg |
Corning |
|
Kevin Noll |
TWC |
|
Marek Hajduczenia |
Bright House Networks |
|
Mark Laubach |
Broadcom |
|
Michael Peters |
Sumitomo |
|
Mike Emmendorfer |
Arris |
|
Moiz Lokhandwala |
TWC |
|
Phil Miguelez |
Comcast |
|
Philip Oakley |
Virgin Media |
|
Ryan Hirth |
Broadcom |
|
Ryan Tucker |
Charter |
|
Saif Rahman |
Comcast |
|
|
|
