What we agreed at Bonita interim on the key words "25Gb/s","100Gb/s" and "reduced rate" were base on the following considerations, in my opinion:
1. 25 Gb/s is the building block and the standalone 25G EPON will be the next EPON after 10G EPON run out of stream. This process will take many years.
2.100 GEPON , will be build on 25G block.
3.With allow reduced rate, we have freedom to choose any rate in multiplex of 25G
This approach give us freedom to either move forward or backward. If we can solve mixed generation problem, we can specify rates such as 50G, 75G between 25G and 100G. If the mixed generation turn out to be too complex, we can then only specify 25G single lane and 100G multi-lane. The key word "allow reduced rate" give us freedom so that we can move either way depends on the progress and avoiding the delay of the 25G EPON - that's the industry really need in the foreseeable future.
100G TDM PON is great, but other technologies may be more suitable when the time for 100G to the home comes.
Regards,
Principle transport architect
Transport and access networks
Cox Communications
404-269-8014
Eugene.dai@xxxxxxx
Sent: Friday, October 2, 2015 12:20 PM
To: STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: [802.3_NGEPON] 10/01/15 NG-EPON Consensus building meeting notes
Folks,
Please let me know if I need to add to or revise the notes below. Note, Marek’s contribution for the meeting is attached.
Curtis
10/01/2015
IEEE 802.3 NG-EPON Study Group Work Items and Socialization
· Review of Guidelines for IEEE-SA meetings.
o https://development.standards.ieee.org/myproject/Public/mytools/mob/preparslides.pdf
o Has anyone not seen these Guidelines? Everyone has seen the guidelines
· November meeting
o Study Group meeting times (tentative but likely):
§ Tuesday, 11/10, 1 pm – 5:30 pm
§ Wednesday, 11/11, 9 am – 5:30 pm
§ Thursday, 11/12, 9:00 am – 12:00 pm

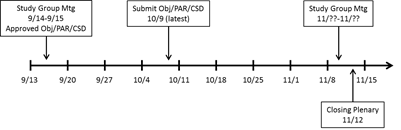

· CSD/PAR/Objectives timeline
· Deliverables for Plenary
o Comments due from 802 by 6:30 pm 11/10. Comments resolved by 6:30 pm 11/11
· Critical/Baseline decisions (reference Marek’s presentation attached to email)
o Pros and cons of channel bonding at different sublayers – below MII, above MII, above MAC
o Terminology
o Fiber data (see slide 8)
o Channel model (see slide 8)
o See Marek’s presentation for additional key baseline decisions
· Leads for areas
o Group was asked to consider high level areas for which a lead would be identified to drive the contributions and decisions for that area. Examples are architecture, features, baseline, etc.
o This would be different from creating ad hoc committees. While less formal than ad hocs, there would be improved organization with leads identified
o Task force members can contribute wherever they want – there are no restrictions.
· Miscellaneous
o Scope of PAR: might need to add something to the scope to allow for rates between 25G and 100G, or something about degraded rates. Exceeding the scope by doing 50G, for example, when we’ve only mentioned 25G and 100G, could bring some “no” votes because it doesn’t match the scope.
§ Two augmentations to the scope: intermediate MAC rates, “symmetric and/or asymmetric operation” (like in .3av)
o Risk: if we don’t change the scope, then we risk not getting approval in 2 years when we do sponsor ballot. If we do change the PAR, people might think it’s too big of a change and vote no. The commenting process is used to make changes to the PAR all the time. We need to make sure we have a good story regarding these changes.
o Group initially considered scope as a minimum, which allowed operation at 50 Gbps, but it turns out this is not the case. The scope places upper bounds on the project.
o Proposed scope change: The scope of this project is to amend IEEE Std 802.3 to add physical layer specifications and management parameters for symmetric and/or asymmetric operation at 25 Gb/s, 50 Gb/s, and 100 Gb/s MAC data rates on point-to-multipoint passive optical networks.
|
Name |
Employer/Affiliation |
|
Alan Brown |
CommScope |
|
Bill Powell |
ALU |
|
Bruce Chow |
Corning |
|
Barry Colella |
Source Photonics |
|
Curtis Knittle |
CableLabs |
|
David Law |
HP |
|
Derrick Cassidy |
BT |
|
Doug Jones |
Comcast |
|
Duane Remein |
Huawei |
|
Ed Harstead |
ALU |
|
Fernando Villarruel |
Cisco |
|
Francois Menard |
Aeponyx |
|
Glen Kramer |
Broadcom |
|
Hesham ElBakoury |
Huawei |
|
Jeff Finkelstein |
Cox |
|
Jorge Salinger |
Comcast |
|
Kevin Bourg |
Corning |
|
Kevin Noll |
TWC |
|
Marek Hajduczenia |
Bright House Networks |
|
Mark Laubach |
Broadcom |
|
Michael Peters |
Sumitomo |
|
Mike Emmendorfer |
Arris |
|
Moiz Lokhandwala |
TWC |
|
Phil Miguelez |
Comcast |
|
Philip Oakley |
Virgin Media |
|
Ryan Hirth |
Broadcom |
|
Ryan Tucker |
Charter |
|
Saif Rahman |
Comcast |
|
|
|
