Re: [802.3_NGEPON] 802.3ca (100G-EPON) consensus building agenda for 12/22/16



Ed:

I am sorry that I misunderstood your contribution yesterday.  Yes, proposed sensitivity is indeed derived for the 25G InP APD using conventional NRZ detection.  I am OK with this.

I think we should have the main information to proceed if we assume “No improved FEC will be need” and “diplexer loss is same with 10G EPON”, one thing may be missing is the coexistence element with 10G EPON (in your following contribution sent out by today).  Of course, again,  I hope I didn’t miss something in your contribution(without your presentation).



Just for some more clarification,

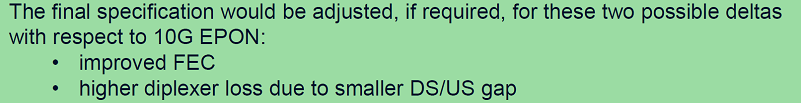

In your motion, about the following two items (your default assumption in your analysis in the contribution):

  1. No improved FEC or 0.5dB improved FEC gain @1E-3

 2. diplexer loss is same with 10G EPON



do you mean we make a decision that the above items are adopted as default values  or they are only an assumed precondition of “-24.2dBm sensitivity” ?



For the improved FEC, we will try to have a further contribution to Huntington (but may be to whistler meeting due to the time is so urgent this time, there are a lot of holidays before next meeting)

The power budget of 100G PON is so challenging,  from me, we should try to gain every potential to alleviate the pressure on optics. Such as the potential improved FEC capability.



For the diplexer loss, I will bring one contribution to Huntington.  Based on the feedback from the filter vendors , just like the analysis in John’s contribution, due to the polarization dependency for 45 degree filters(which will run out ~10nm transition band of the filter),  it indeed will bring some more extra insertion loss for ~40nm DS/US gap.  There can be some way to overcome this, such as small incident angle (13 degree filter) ,  new thin film design for depolarization,  but such way will inevitable bring some extra cost , non-common technology , and bring some risk for volume availability.

So before we make a decision that we use C/S-band for downstream and O band for upstream,  we most probably need to take care on this.



Best regards

Dekun Liu
