Dekun,
Happy New Year, and sorry for my late responses, which I have added in-line below.
Ed
From: Liudekun [mailto:liudekun@xxxxxxxxxx]
Sent: Friday, December 23, 2016 10:52 PM
To: Harstead, Ed (Nokia - US) <ed.harstead@xxxxxxxxx>; STDS-802-3-NGEPON@xxxxxxxxxxxxxxxxx
Subject: RE: 802.3ca (100G-EPON) consensus building agenda for 12/22/16
Ed:
I am sorry that I misunderstood your contribution yesterday. Yes,
proposed sensitivity is indeed derived for the 25G InP APD using conventional NRZ detection. I am OK with this.
I think we should have the main information to proceed if we assume “No improved FEC will be need” and “diplexer loss is same with 10G EPON”, one thing may be missing is the coexistence element with
10G EPON (in your following contribution sent out by today). Of course, again, I hope I didn’t miss something in your contribution(without your presentation).

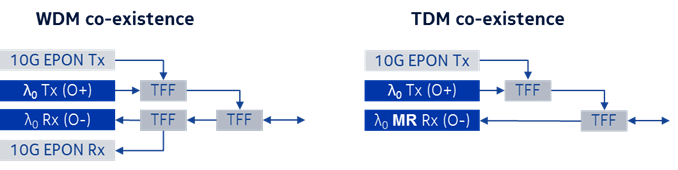

[Ed Harstead] You are correct that in the downstream direction a “brownfield” OLT module will require an additional filter in the transmit path, as shown below. This does not affect the spec
since it is internal to the OLT, but it will require another ~0.5 dB from the 25G transmitter.
Just for some more clarification,
In your motion, about the following two items (your default assumption in your analysis in the contribution):
1. No improved FEC or 0.5dB improved FEC gain @1E-3
2. diplexer loss is same with 10G EPON
do you mean we make a decision that the above items are adopted as default values or they are only an assumed precondition of “-24.2dBm sensitivity” ?

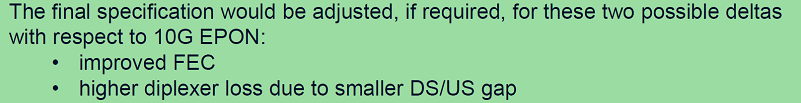

[Ed Harstead] Probably I could use some help with the wording of the Motion. I do not mean to say that -24.2 dBm should be the final specification, but that we set it as a “baseline” for determining
the specification, pending decisions on FEC and DS/US gap, which we can now focus on.
For the improved FEC, we will try to have a further contribution to Huntington (but may be to whistler meeting due to the time is so urgent this time, there are a lot of holidays before next meeting)
The power budget of 100G PON is so challenging, from me, we should try to gain every potential to alleviate the pressure on optics. Such as the potential improved FEC capability.
[Ed Harstead] Actually I am not sure that the 100G EPON budget is more challenging: we just add SOA amplifiers. I think getting 25G EPON without amplifiers is the bigger challenge, but I think
we can do it, we just need another ~0.5-1 dB.
For the diplexer loss, I will bring one contribution to Huntington. Based on the feedback from the filter vendors , just like the analysis in John’s
contribution, due to the polarization dependency for 45 degree filters(which will run out ~10nm transition band of the filter), it indeed will bring some more extra insertion loss for ~40nm DS/US gap. There can be some way to overcome this, such as small
incident angle (13 degree filter) , new thin film design for depolarization, but such way will inevitable bring some extra cost , non-common technology , and bring some risk for volume availability.
So before we make a decision that we use C/S-band for downstream and O band for upstream, we most probably need to take care on this.
[Ed Harstead] Agree.
