Simplified PLL Equations and Tutorial

This paper was given by Jim Carlo and is dated July 8th, 1991.

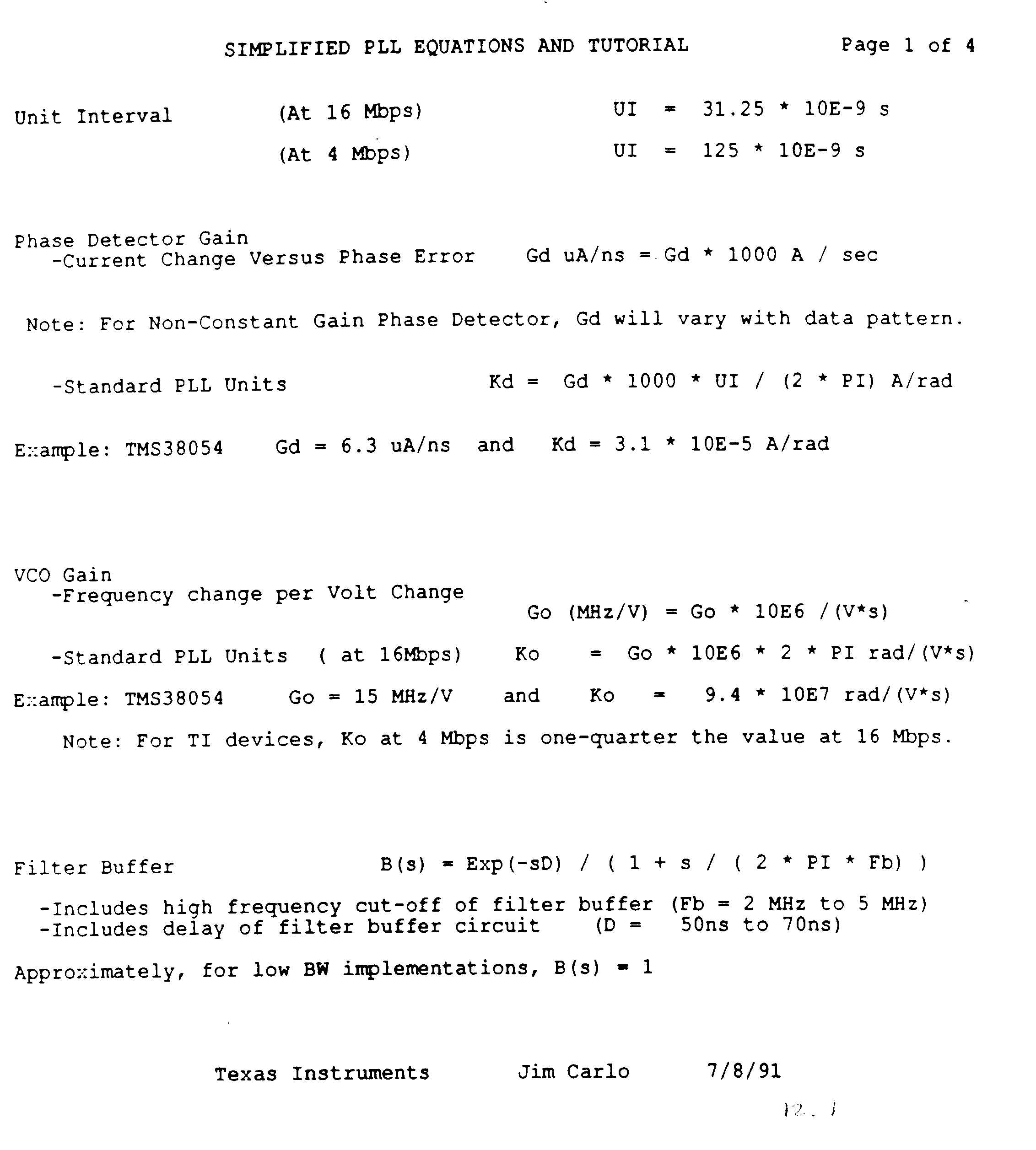

  • Page 1 of 6

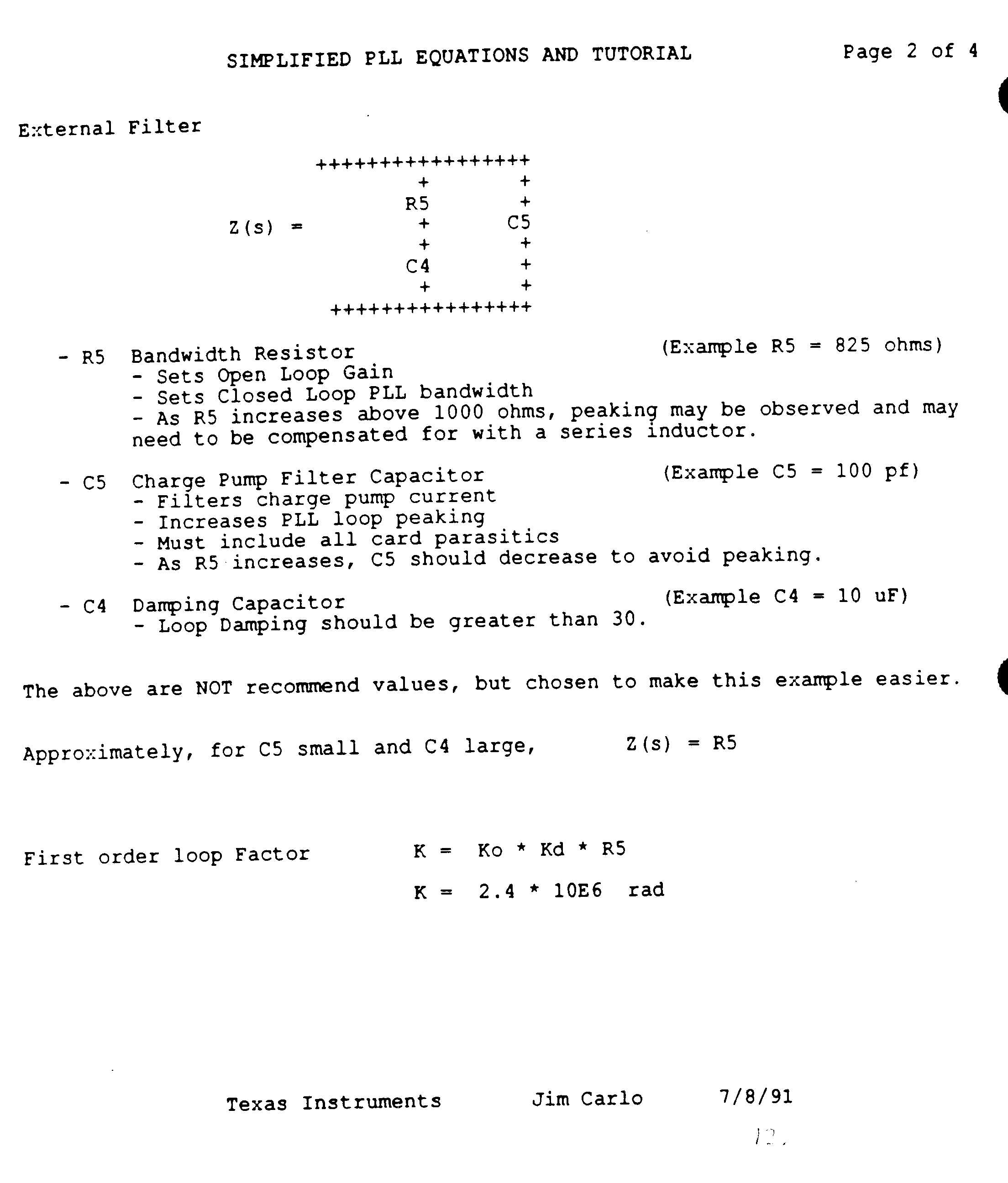

  • Page 2 of 6

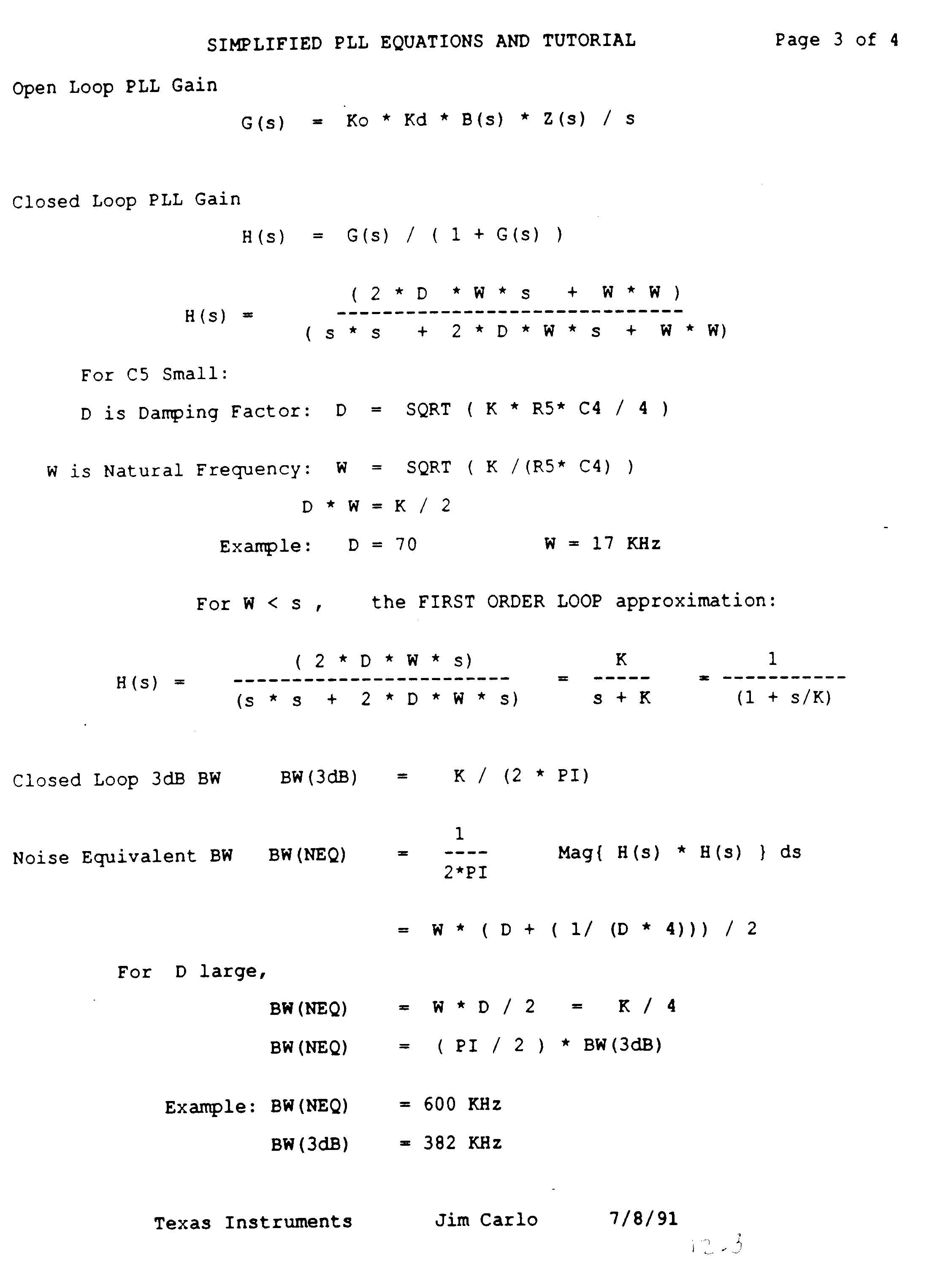

  • Page 3 of 6

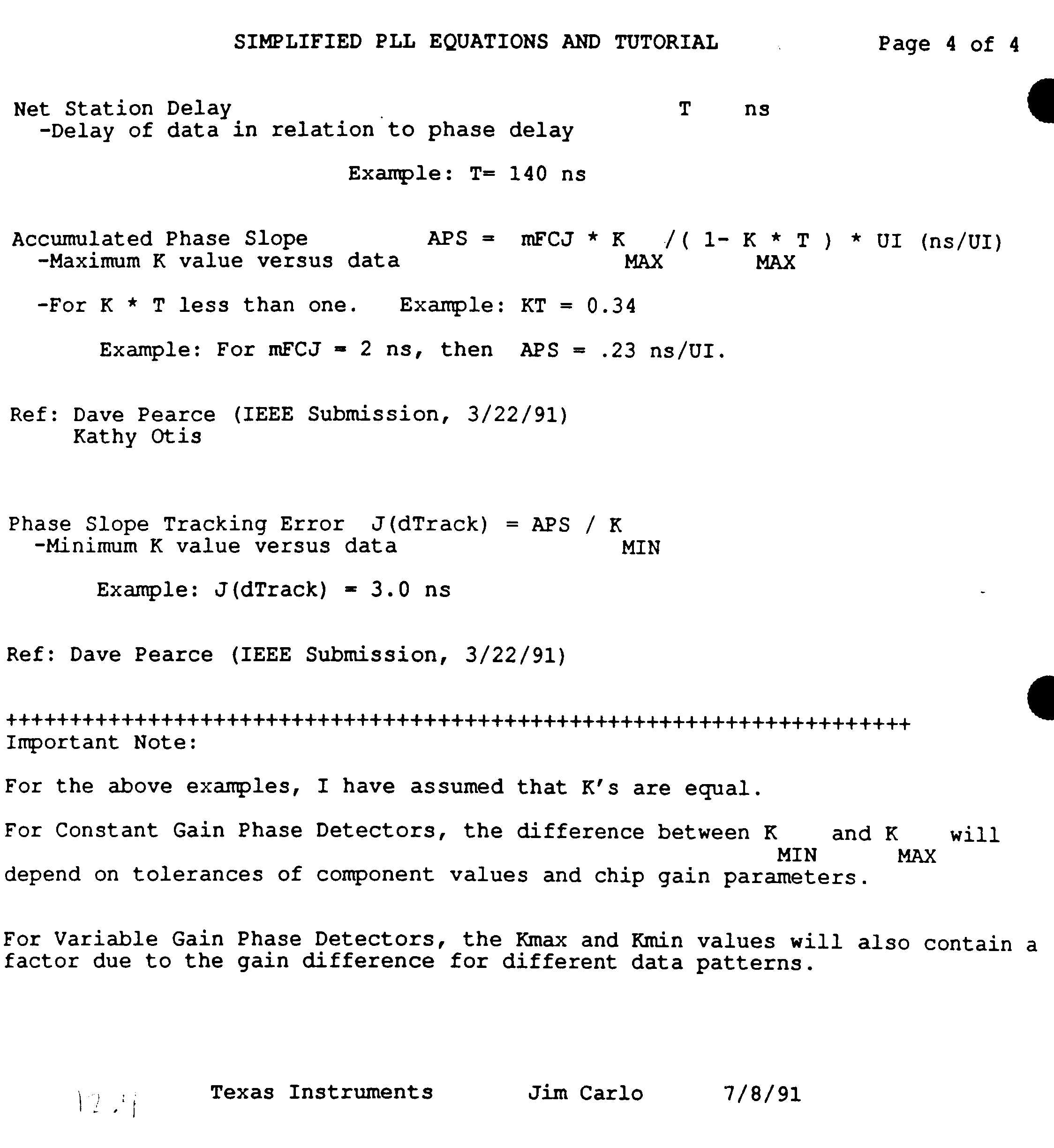

  • Page 4 of 6
  • Page 5 of 6 (Analytical PLL Model diagram)
  • Page 6 of 6 (Jitter Accumulation Model diagram)

    Thanks to Richard Ross-Langley for image conversion.
