Re: [802.3_B10GAUTO] Question Follow-up - IL limit to achieve 25Gbps over 11m



Hi Ragnar,



Thank you for sharing the results.

Just quick questions to make sure that we are on same page in terms understanding the number you have shown in the table because I hate guessing  them ;-)

·         The AFE noise you considered for calculation is dBm/Hz or dB/Hz?

·         You mentioned ‘EC Connector Cancellation [%]  = 100%’, is that corresponds to 5dB EC cancellation you assumed?

·         -40dB micro-reflection is after echo cancellation or before cancellation?



Kind regards,

Sujan







From: Ragnar Jonsson [mailto:rjonsson@xxxxxxxxxxx]
Sent: Wednesday, October 28, 2020 5:33 PM
To: STDS-802-3-B10GAUTO@xxxxxxxxxxxxxxxxx
Subject: [802.3_B10GAUTO] Question Follow-up - IL limit to achieve 25Gbps over 11m



All,

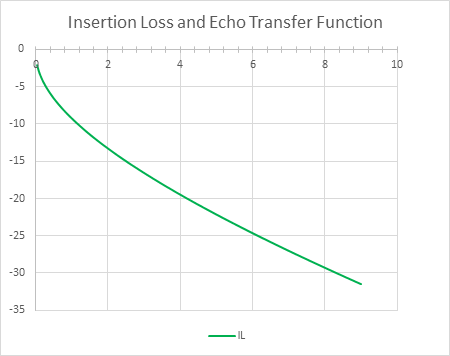

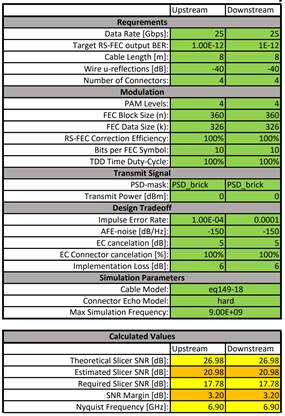

As a follow-up on today’s question about the limit line if we want to achieve 25Gbps over 11 meters, it would depend on the modulation (line code) used. I have enclosed an example for the PAM-4 modulation similar to 802.3ch. In this particular example I chose to use about 3dB margin. With different modulation (line code) and different margin assumptions we will get slightly different insertion loss requirements. So what I have included in this email, should be considered an example. This is NOT a formal proposal for what the IL target should be.



Ragnar
