Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7

I believe the update below addresses your proposed changes.  Please let me know if this is not the case.



From: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 2:24 PM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7


Thanks, Brett – this seems reasonable – where was the reference to DS_n[0] and DS_n[1]? (I can’t find it).   The ones I was referring to are the Scr_n[0], Scr_n[3] and Scr_n[8] (without the extra comma in the subscript) which relate to the nomenclature in Figure 149-10 and equation 149-8 used for the side stream scrambler.



George A. Zimmerman, Ph.D.

President & Principal Consultant

CME Consulting, Inc.

Experts in PHYsical Layer Communications

1-310-920-3860

george@xxxxxxxxxxxxxxxxxxxx



From: Brett McClellan <bmc@xxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 10:19 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7



Natalie,

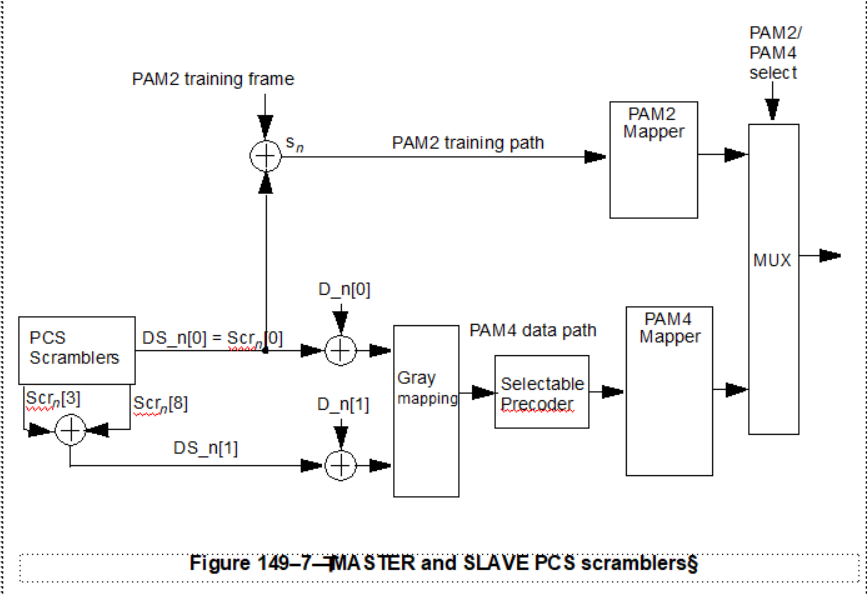

I suggest changing Scr_n,0 and Scr_n,1 to DS_n[0] and DS_n[1] and change d_n,0 and d_n,1 to D_n[0] and D_n[1] because those terms were accepted as the text for the data scrambler section.



Brett



From: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>
Sent: Tuesday, January 15, 2019 9:31 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: [EXT] Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7



External Email

A very minor thing on the nomenclature – the scrambler bits are Scrn with a capital S, not scrn all lower case.



George A. Zimmerman, Ph.D.

President & Principal Consultant

CME Consulting, Inc.

Experts in PHYsical Layer Communications

1-310-920-3860

george@xxxxxxxxxxxxxxxxxxxx



From: NATALIE WIENCKOWSKI <nwienckowski@xxxxxxx>
Sent: Tuesday, January 15, 2019 9:04 AM
To: STDS-802-3-NGAUTO@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_NGAUTO] Comment #115 redrawing of Figure 149-7



Resending







Natalie



Sent from my Sprint Samsung Galaxy S8.





-------- Original message --------

From: NATALIE WIENCKOWSKI <NWIENCKOWSKI@xxxxxxx>

Date: 1/14/19 10:02 PM (GMT-08:00)

Subject: Comment #115 redrawing of Figure 149-7



Colleagues,

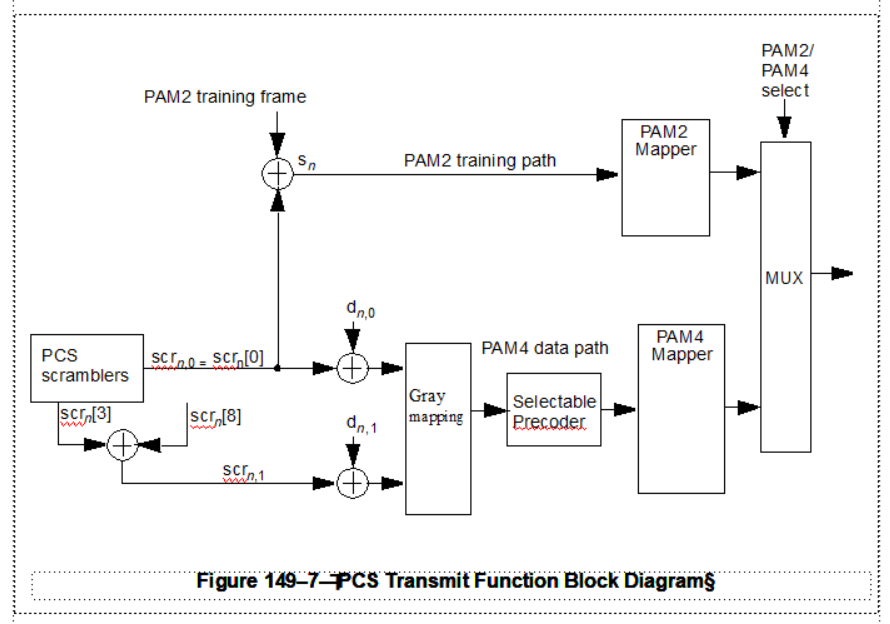

Please look at the proposed changes to Figure 149-7 based on the decision in Comment #115 to make this a block diagram and move it to Section 149.3.2.2.



Please plan to request any desired changes tomorrow.



Thanks,



Natalie
