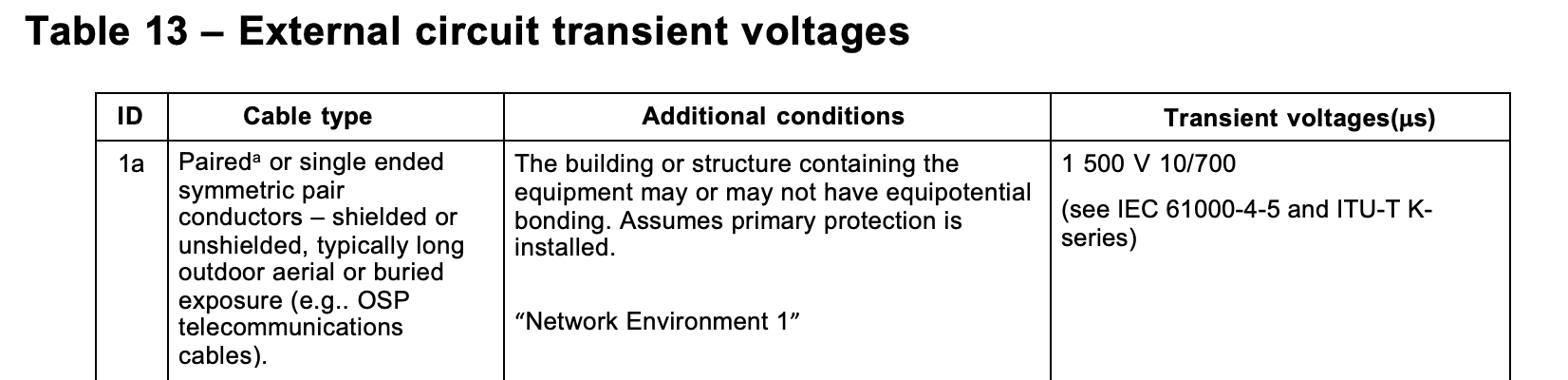

Neil, I’m not at liberty to share the whole table in a public forum such as this email reflector. I will share with you a snippet of what has been shared with me, one that shows the title and the first entry.

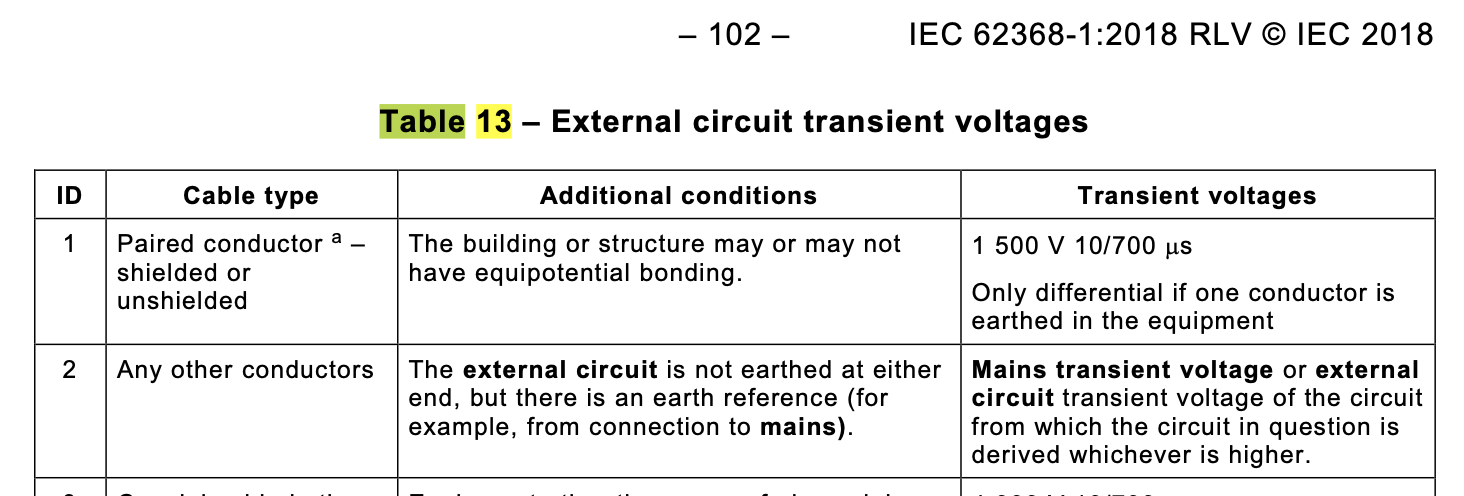

also, part of table 13 from IEC 62368-1:2018:
I’m not sure what table you show below, but it doesn’t match what I see.
Regards,
Chad Jones
Technical Leader, Cisco Systems
Chair, IEEE P802.3da Task Force
Principal, NFPA 70 CMP3
From:
"<Neil> <Mabbott>" <neilmabbott5308@xxxxxxxxx>
Reply-To: "neilmabbott5308@xxxxxxxxx" <neilmabbott5308@xxxxxxxxx>
Date: Thursday, August 26, 2021 at 11:58 AM
To: PDCC <STDS-802-3-PDCC@xxxxxxxxxxxxxxxxx>
Subject: Re: [802.3_PDCC] rewrite homework item
Hi All,
I prefer George 1.

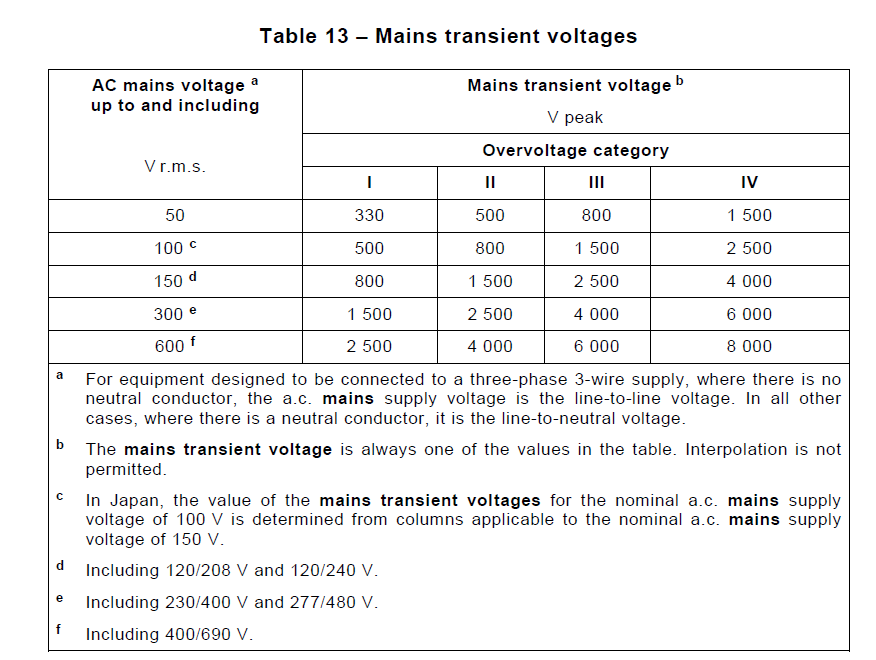

Sorry, I’m a little confused, maybe I missed something, however – I don’t see the connection to table 13 in IEC 62368-1?, which shows:
Kind regards
Neil
07741278752
From: Tremblay, David <david.tremblay@xxxxxxx>
Sent: Thursday, August 26, 2021 4:18 PM
To: STDS-802-3-PDCC@xxxxxxxxxxxxxxxxx
Subject: Re: [802.3_PDCC] rewrite homework item
Hi George,
Thank you for providing the two text options for consideration.
My preference is to go with the George1 text.
Regards,
David Tremblay
From: Bob Voss <Bob.Voss@xxxxxxxxxxx>
Reply-To: Bob Voss <Bob.Voss@xxxxxxxxxxx>
Date: Thursday, August 26, 2021 at 4:01 AM
To: "STDS-802-3-PDCC@xxxxxxxxxxxxxxxxx" <STDS-802-3-PDCC@xxxxxxxxxxxxxxxxx>
Subject: Re: [802.3_PDCC] rewrite homework item
George,
Thanks for this effort. I am a fan of option “George1”.
Bob
From: George Zimmerman <george@xxxxxxxxxxxxxxxxxxxx>
Sent: Wednesday, August 25, 2021 8:27 PM
To: STDS-802-3-PDCC@xxxxxxxxxxxxxxxxx
Subject: [802.3_PDCC] rewrite homework item
>> CAUTION: This email originated outside of our organization. Do not open attachments or click on links unless you recognize and verify
the sender, and know the content is safe. <<
All – at the PDCC meeting, I took the action item to propose a rewrite of the statement below, so it did not require careful parsing of a comma to indicate that that the requirement referred to all external paired conductor cables with
a diameter of 0.4mm:
Chad:
PSE circuits connected to external paired conductor cable, such as those described in Table 13 of IEC 62368-1, having a minimum wire diameter of 0,4 mm shall have the current limited to
not more than 1,3 A.
I ended up with 2 versions, which I was arguing with myself over, and between Chad and Geoff they each preferred one or the other for the same reasons. Hence, please provide your insight &/or preference:
George1: this one goes for 2 shorter sentences, easier to parse for non-native speakers (or to translate); however, it is a bigger change in the actual text:
PSE circuits connected to external paired conductor cable having a minimum wire diameter of 0,4 mm shall have the current limited to not more than 1,3 A. Examples of such cables are described
in Table 13 of IEC 62368-1.
George2: this one makes a smaller text change, just moving an existing clause within the sentence to avoid the comma-break. However, it is a complex sentence, more difficult to parse:
PSE circuits connected to external paired conductor cable having a minimum wire diameter of 0,4 mm, such as those described in Table 13 of IEC 62368-1, shall have the current limited to
not more than 1,3 A.
George Zimmerman, Ph.D.
President & Principal
CME Consulting, Inc.
Experts in Advanced PHYsical Communications
310-920-3860
George Zimmerman, Ph.D.
President & Principal
CME Consulting, Inc.
Experts in Advanced PHYsical Communications
310-920-3860
